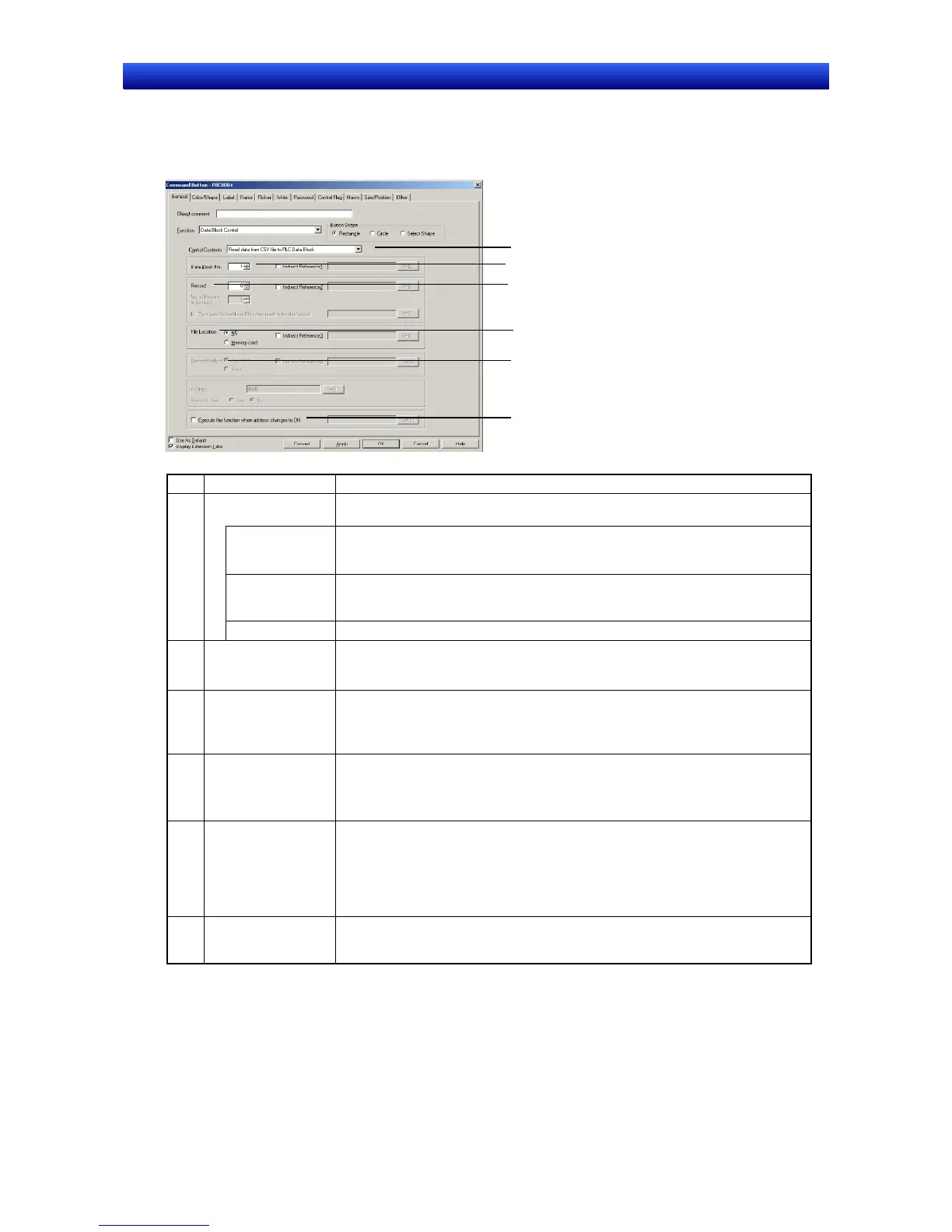

Data Block Control – File -- PLC
This function operates on data blocks. When a button is pressed, CSV file data is transferred to the
specified addresses in the PLC or the data from specified addresses in the PLC is transferred to the
specified record in the CSV file.
1
2
3
4
5
6
No. Setting Details
Control content Specifies the control operation to be performed when the command button is
pressed.
Read data from
CSV file to PLC
Data Block
Transfers the data from the specified record in the CSV file to the PLC address
specified in each field.
Write data from
PLC Data Block
to CSV file
Transfers the data from the PLC address specified in each field to the specified
record in the CSV file.
1
Delete record Deletes the data from the specified record in the CSV file.
2 Data Block No. Specifies the data block group number (1 to 100) for the control operation.
The group number can be set indirectly through a communications address by se-
lecting the Indirect Reference Option.
3 Record Specifies the record number in the CSV file (0 to 999) to use in the control opera-
tion.
The Record number can be set indirectly through a communications address by
selecting the Indirect Reference Option.
4 File Location Specifies either the PT or a Memory Card as the location of the CSV file.
The File Location can be set indirectly by selecting the Indirect Reference Option.
If the specified address is 0, the PT will be used.
If the specified address is 1, the Memory Card will be used.
5 Record Method If the Control Content Field is set to Write data from PLC Data Block to CSV file, the
data at the specified record can be overwritten or it can be inserted at the specified
record number.
The Record Method can be set indirectly by selecting the Indirect Reference Option.
If the specified address is 0, the data will be overwritten.
If the specified address is 1, the data will be inserted.
6 Execute the function
when address
changes to ON
If the option is selected, the specified control operation is performed when the
specified address changes from OFF to ON while the command button is being
displayed.
