Section 2 NS Series Functions 2-9 Buttons
2-151
NS Series Programming Manual
Specifying Shapes
2
1

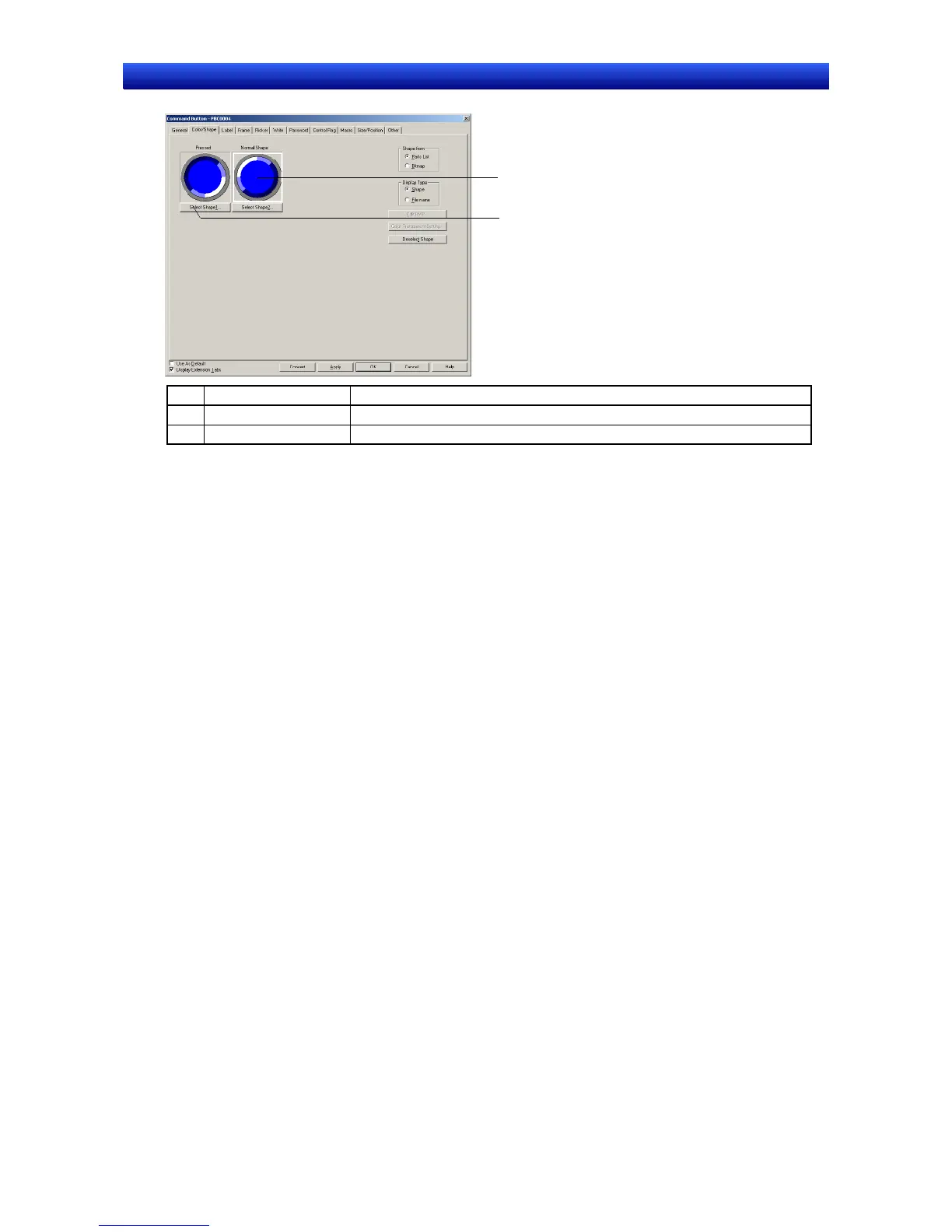

No. Setting Details
1 Shape when Pressed
Click the Select Shape Button to set the button’s shape when it is pressed.
2 Normal Shape
Click the Select Shape Button to set the button’s normal shape.
Refer to Selecting Shape in 2-8 Common Functional Object Functions for information on how to set
shapes.
Label Tab Page
Set a label for the button. Refer to Labels under 2-8 Common Functional Object Functions for details.
Frame Tab Page
Specify the colors and sizes of the button frame to change the shape or color when the button is
depressed or raised. Refer to Frames under 2-8 Common Functional Object Functions for details.
Flicker Tab Page
Make flicker settings to make the button flicker (flash). Refer to Flicker under 2-8 Common Functional
Object Functions for details.
Write Tab Page
Use the Write Tab Page to display a confirmation display box before writing values to a write address.
The confirmation message can be changed. Refer to Write Settings under 2-8 Common Functional
Object Functions for details.
Password Tab Page
Set a password for when buttons are pressed. Five passwords of up to 16 characters each can be set.
One password can be requested for each object. Refer to Passwords under 2-8 Common Functional
Object Functions for details.
Control Flag Tab Page
Control flags control the input and display of functional objects. Use control flags to enable display or
input when the contents of an address turn ON or OFF. Refer to Control Flags under 2-8 Common
Functional Object Functions for details.
