Omron NS Programming Manual

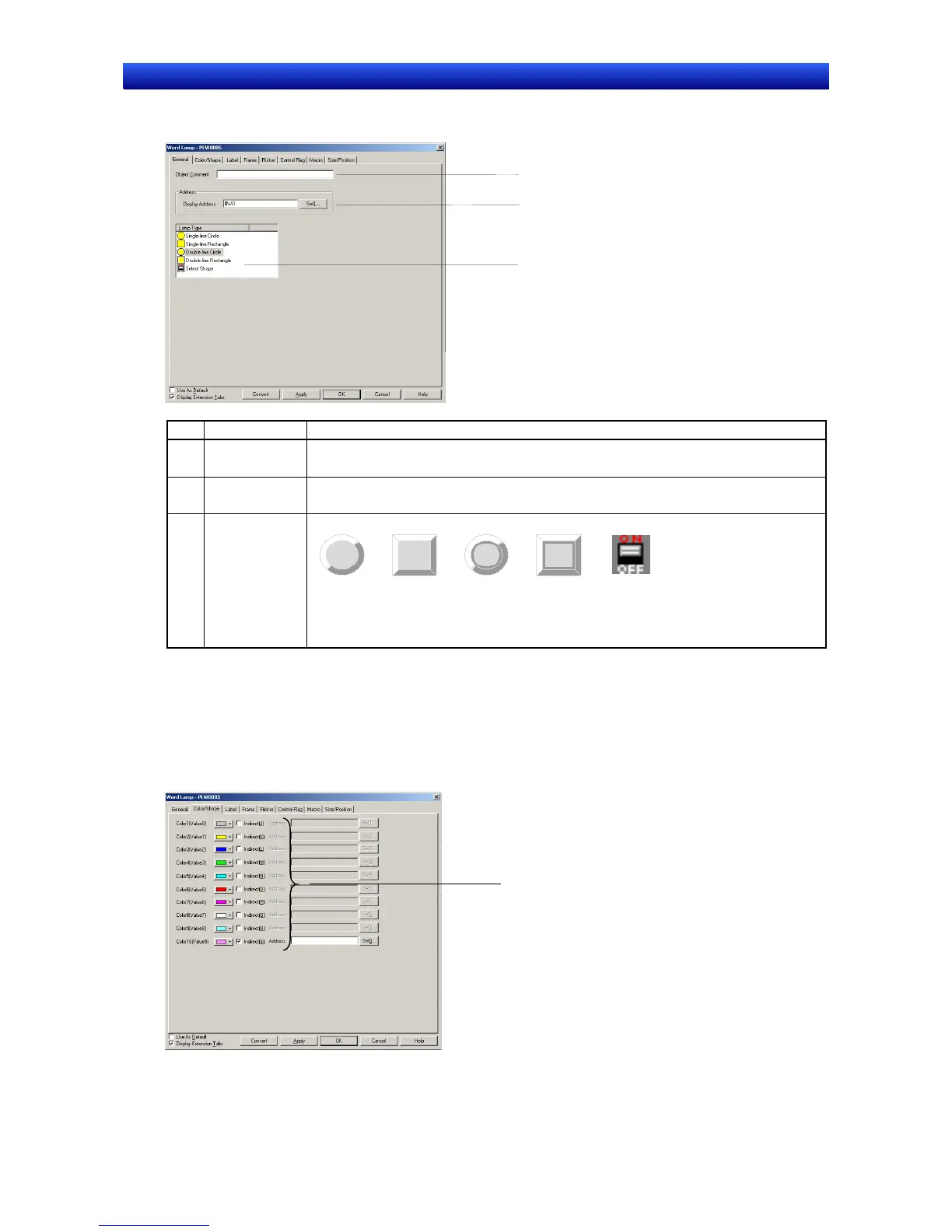

Section 2 NS Series Functions 2-10 Lamps
2-158
NS Series Programming Manual
General Tab Page
Sets the lamp shape and address.
1
2
3
No. Setting Details
1 Object
Comment
Sets an explanatory comment for the pasted object.
(Up to 32 characters.)
2 Address Sets the address referenced for lamp display.
Only words can be set.
3 Lamp type Select from the five lamp shapes shown below.
Single-lined
circle
Single-lined
rectangle
Double-lined
circle
Double-lined
rectangle
Select
shape
Various lamp shapes can be selected from the list and displayed when the shape is
specified. The image displayed in the Properties Dialog Box is a sample. The actual
display will depend on the settings made on the Color/Shape Tab Page.
Color/Shape Tab Page
Specify the color and shape of the lamp.
If a selection other than Select shape is made for the lamp type, one of 256 colors can be selected.
If Select shape is selected under Lamp type, select a display shape from the list.
Color
1

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
