Section 2 NS Series Functions 2-10 Lamps
2-159
NS Series Programming Manual

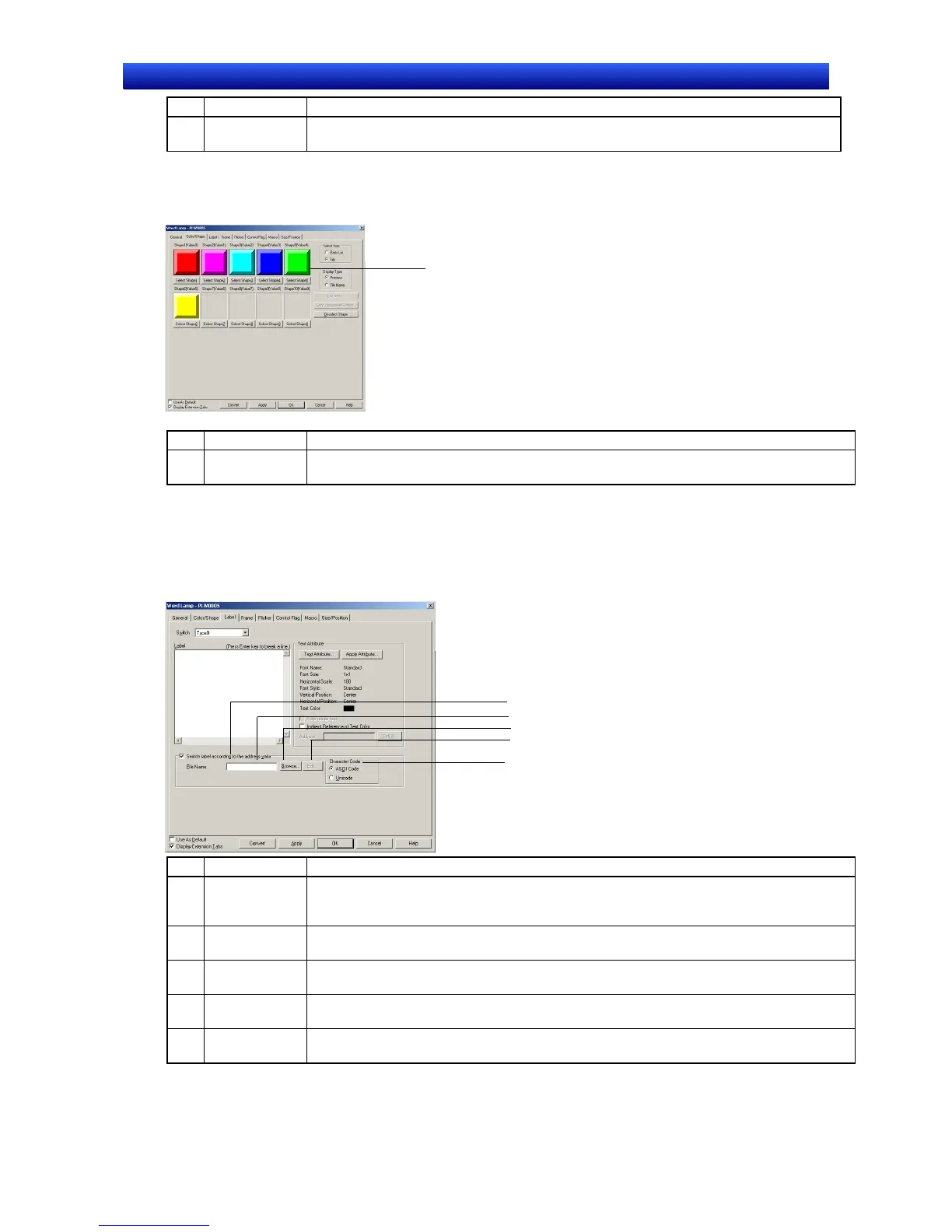

No. Setting Details
1 Colors 1 to 10 Sets the lamp color when the contents of the lamp address is 0 to 9. Colors can also be
set after referencing the contents of the address.
Refer to Setting Colors in 2-8 Common Functional Object Functions for information on how to set col-
ors.
Select Shape
1
No. Setting Details
1 Shapes 1 to
10
Sets the lamp display shape when the contents of the lamp address is 0 to 9. If no shape
has been selected, the lamp will be a single-lined rectangle during PT operation.
Refer to Selecting Fixed Objects in 2-8 Common Functional Object Functions for information on how to
set fixed objects.
Label Tab Page
Sets labels for lamps. Only the settings unique to word lamps are described here. Refer to Labels in
2-8 Common Functional Object Functions for basic settings information.
1
2
4
5
3
No. Setting Details
1 Switch label
according to
address value
Select to display the label text strings specified in a file according to changes in the value of
an address. This setting cannot be used if Windows fonts are selected.
2 File Name Displays the name of the file containing the text strings to display for changes in the value of
the address.
3 Browse Click this button to display the file selection dialog box and select the file containing text
strings.
4 Edit Starts the text editor so that the text file can be edited. To set the text editor that is started
when the Edit Button is pressed, select Tools – Option and open the Editor Tab Page.
5 Character
Code
Sets the text code used to store text strings in the file.
