Section 2 NS Series Functions 2-11 Multifunction Objects
2-176
NS Series Programming Manual
Using Multifunction Objects as Buttons

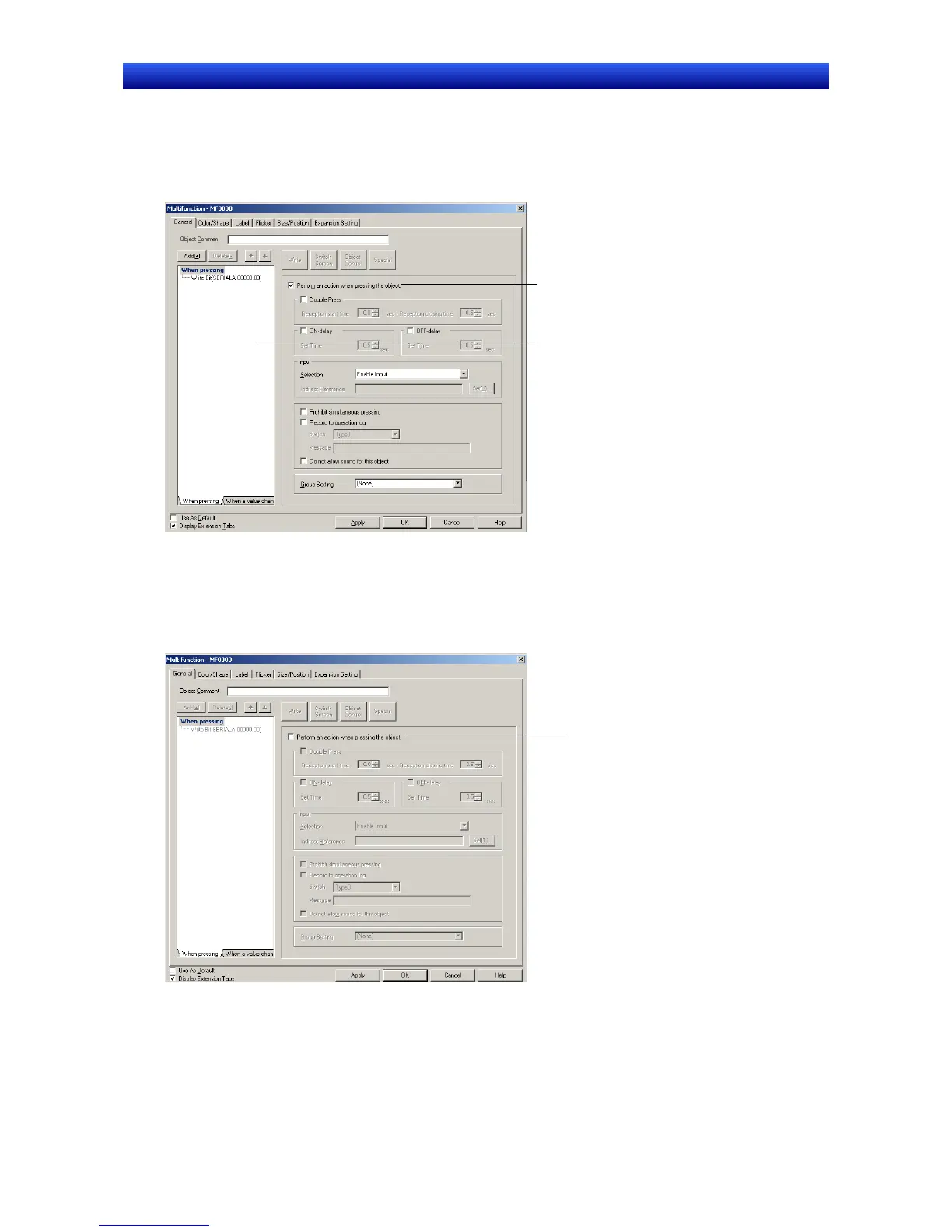

To use a Multifunction Object as a button, select the Perform an action when pressing the object
Checkbox on the When Pressing Tab Page in the Action Item List.
The operation when the button is pressed is set in the Action Item List.
Select Perform an action
when pressing the object.
Set the actions to be
performed when the button is
pressed.
Using Multifunction Objects as Lamps
To use a Multifunction Object as a lamp, clear the selection of the Perform an action when pressing the
object Checkbox on the When Pressing Tab Page in the Action Item List.
The address to be monitored is set under Display Address on the Color/Shape Tab Page.
Clear the selection of
Perform an action when the
object is pressed Checkbox.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
