Section 1 Overview 1-2 NS-series PT Functions
1-12
NS Series Programming Manual

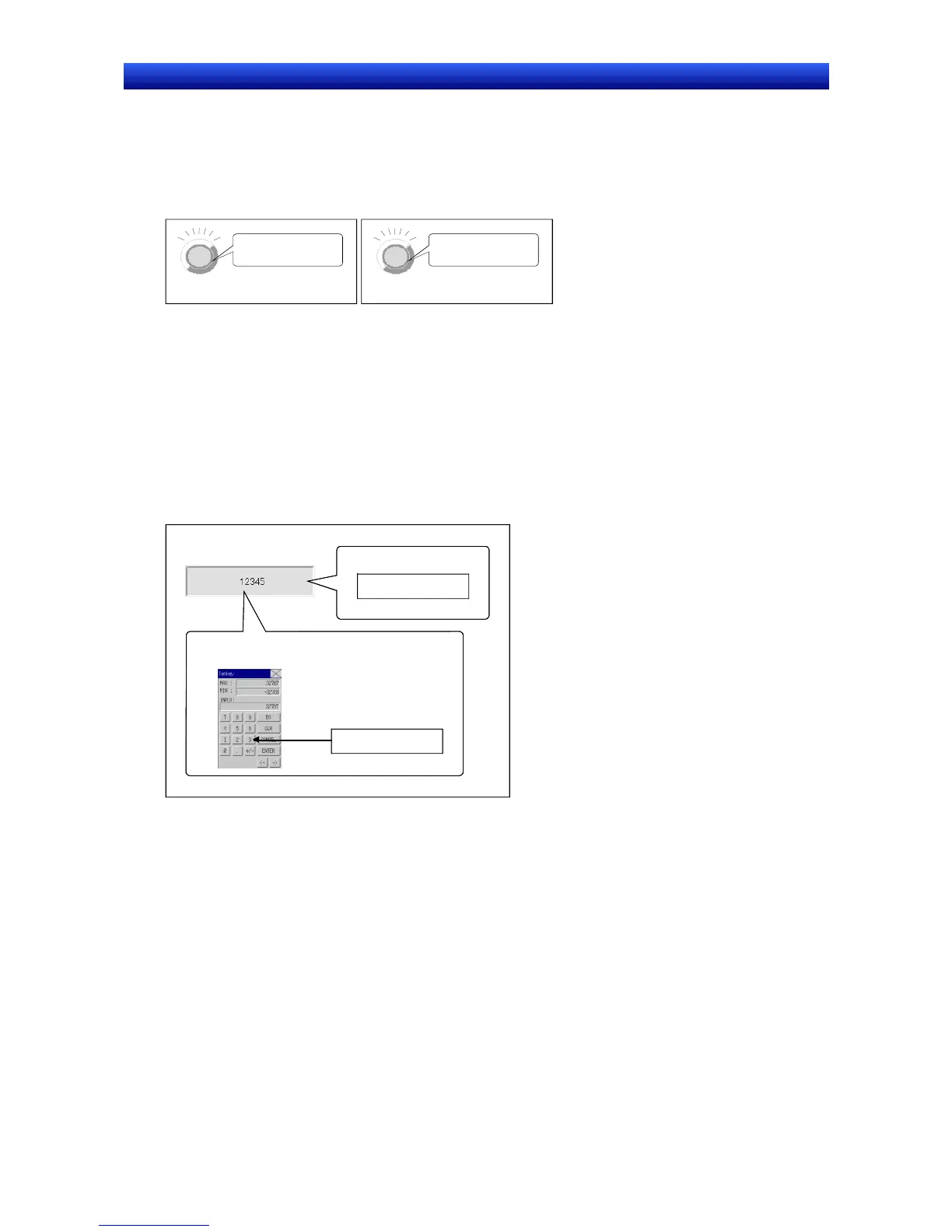

Lamps
There are two types of functional objects, bit lamps and word lamps, that change the display status
depending on the status of the allocated address.
The color and shape of the lamps can be changed depending on the ON/OFF status of bits for bit
lamps or the contents of words for word lamps.
Allocated address
0, 1, 0, 1……
OFF, ON, OFF, ON……
Allocated address
0, 1, 2, 3, 4, 5……
Color 1, Color 2, Color 3, Color 4……
Bit lamp Word lamp
Fixed character strings can be displayed as lamp labels. In addition, multiple lines can be displayed.
Numeral Display and Input
Numerals stored at the allocated address can be displayed and data can be input to the allocated ad-
dress. Four different data formats can be displayed as required, including decimal and hexadecimal,
and data can be stored as required in any of eleven data formats, including signed integers and BCD.
Host values can be converted and displayed at a specified scale or displayed with units, such as mm or
g.
Also, inputs from the host can be controlled (enabled or disabled) by assigning the address of a control
flag.
Keypad input
Allocated address
12345
12345
