Section 2 NS Series Functions 2-11 Multifunction Objects
2-212
NS Series Programming Manual
Two-channel RGB/Video Input Units (NS-CA002)
1
2

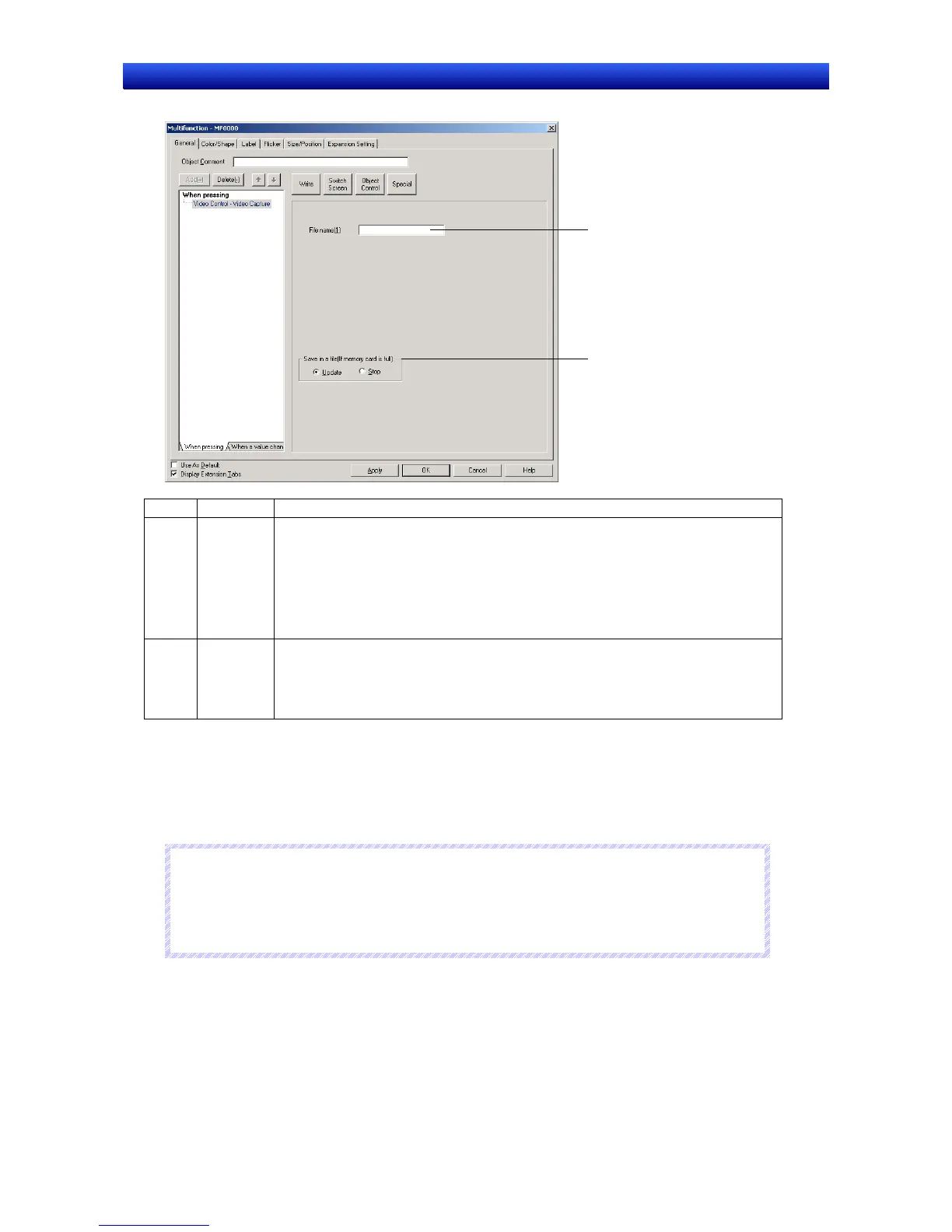

No. Item Details
1 File name Sets the file name for saving the captured data (up to 32 characters).
Each time the save operation is executed, the numbers 001 to 999 will be automati-
cally appended to the file name, in order.
Capture data will be saved to the Memory Card in bitmap format.
Example: If the file name is set to Video_LT, the files Video_LT001.bmp to
Video_LT999.bmp will be saved to the Memory Card.
Refer to 2-9-3 Command Buttons for information on captured data.
2 Save in a
file (if
Memory
Card is
full)
Sets the action for when video capture is executed when the Memory Card is full.
• Update: Deletes the oldest file with the same file name and saves the data as the
newest file name +1.
• Stop: Does not save the data.
Video Control – Contrast Adjustment
The contrast, brightness, depth, and tone of video images can be adjusted using this function.
Click the Object Control Button and select Video Control – Contrast Adjustment from the list that is
displayed.
N
N
N
o
o
o
t
t
t
e
e
e
♦
The Multifunction Object processing will be canceled if there is no Video Board
mounted on the NS.
♦
Video Control – Contrast Adjustment can be used only once for each Multifunction Object.
The setting items depend on the Video Board selected in the System Settings Dialog Box. (Select PT –
System Settings to display the System Settings Dialog Box.)
