Omron NS Programming Manual

Section 1 Overview 1-2 NS-series PT Functions
1-15
NS Series Programming Manual

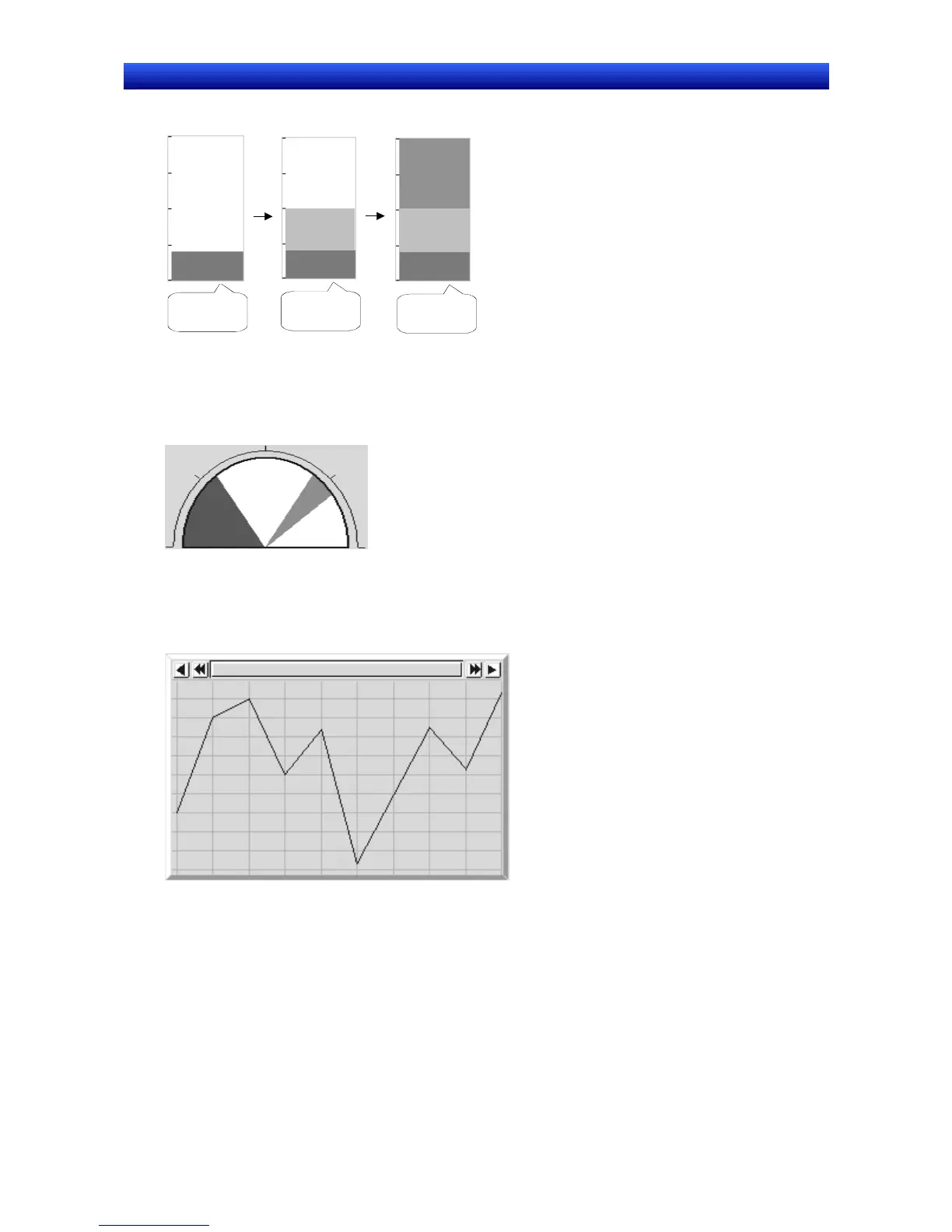

play direction (up, down, left, or right), different color for each specified range, and whether or not
scaling will be used can be set.
Allocated address
contains 20.
Allocated address
contains 50.
Allocated address
contains 100.
100
50
20
0
Analog Meters
An analog meter displays the current value for the allocated address by coloring regions or by means
of a needle. The shape can be selected from a quarter circle, semi-circle, and full circle.
The display direction (up, down, left, or right), incremental direction for the meter (clockwise or
anti-clockwise), and whether or not scaling will be used can be set.
‘
Broken-line Graphs
Broken-line graphs display the present values for multiple consecutive allocated addresses on one
graph.
Up to 256 line graphs can be displayed in one broken-line graph display region.
‘
Data Log Graphs
The data log function saves changes over time in the contents of the allocated address. The saved
data can be displayed for each data logging group.
Data can be read (sampled) even if the data log graph is not displayed.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
