Omron NS Programming Manual

Section 2 NS Series Functions 2-11 Multifunction Objects
2-233
NS Series Programming Manual

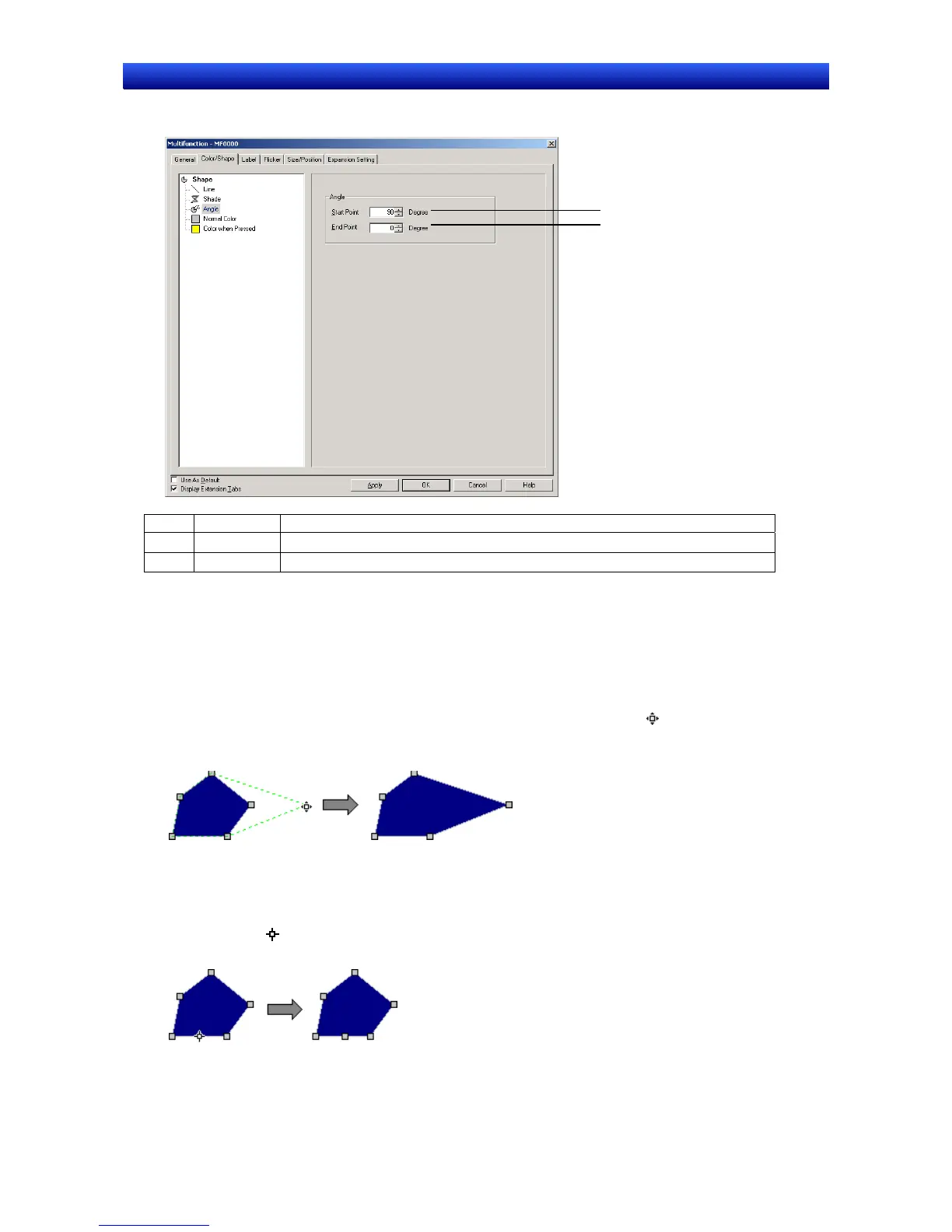

Angle
Sets the start and end angles for polygons and sectors.
1
2
No. Item Details
1 Start Point
Sets the start angle between 0 and 359 (°).
2 End Point
Sets the end angle between 0 and 359 (°).
When Polygon or Sector is selected, the shape can be changed using the following method.
1. Select the Multifunction Object for changing the shape.
2. Select Edit –Edit Node.
3. Squares (
) will be displayed at the nodes.
4. Place the node on a corner and, when the cursor shape changes to
, drag the node to the de-
sired position.
Nodes can be added or deleted for polygons.
5. Press and hold the Ctrl Key and bring the cursor close to the outline. When the cursor shape
changes to
, click on the position on the outline where a node is to be added.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
