Omron NS Programming Manual

Section 2 NS Series Functions 2-12 Display and Input Objects
2-258
NS Series Programming Manual

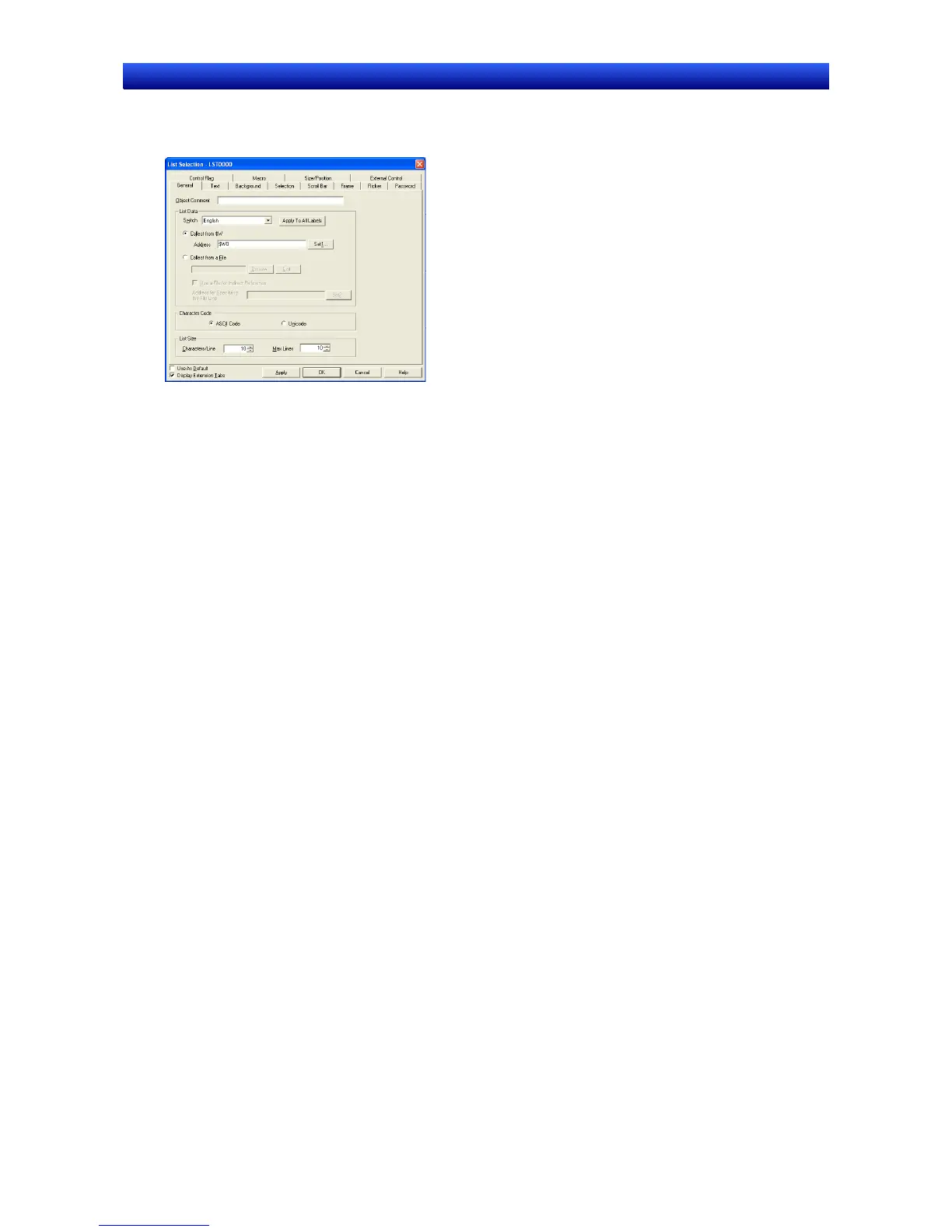

Settings for Functional Object Properties
This section describes the settings items in the Functional Object Properties Dialog Box for list selec-
tion.
General: Sets the reference destination for list data, list size, and object comment.
Text: Sets the text attributes for the displayed string.
Background: Sets the background color for the list selection object.
Selection: Sets the selection bar color, selected line number, and string destination.
Scroll bar: Sets the scroll bar size and scroll width.
Frame: Sets the list selection frame display.
Flicker: Sets the flicker display. (See note.)
Password: Sets the password to be entered when a button is pressed. (See note.)
Control Flag: Sets enable/disable input and display/no display for objects. (See note.)
Macro: Sets macros that operate when lists are selected. (See note.)
Size/Position: Sets the object size and position. (See note.)
External Control: Sets switching of displayed block position from an external device. (See note.)
Note: These tabs are displayed when the Display Extension Tabs Option is selected.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
