Omron NS Programming Manual

Section 2 NS Series Functions 2-12 Display and Input Objects
2-259
NS Series Programming Manual

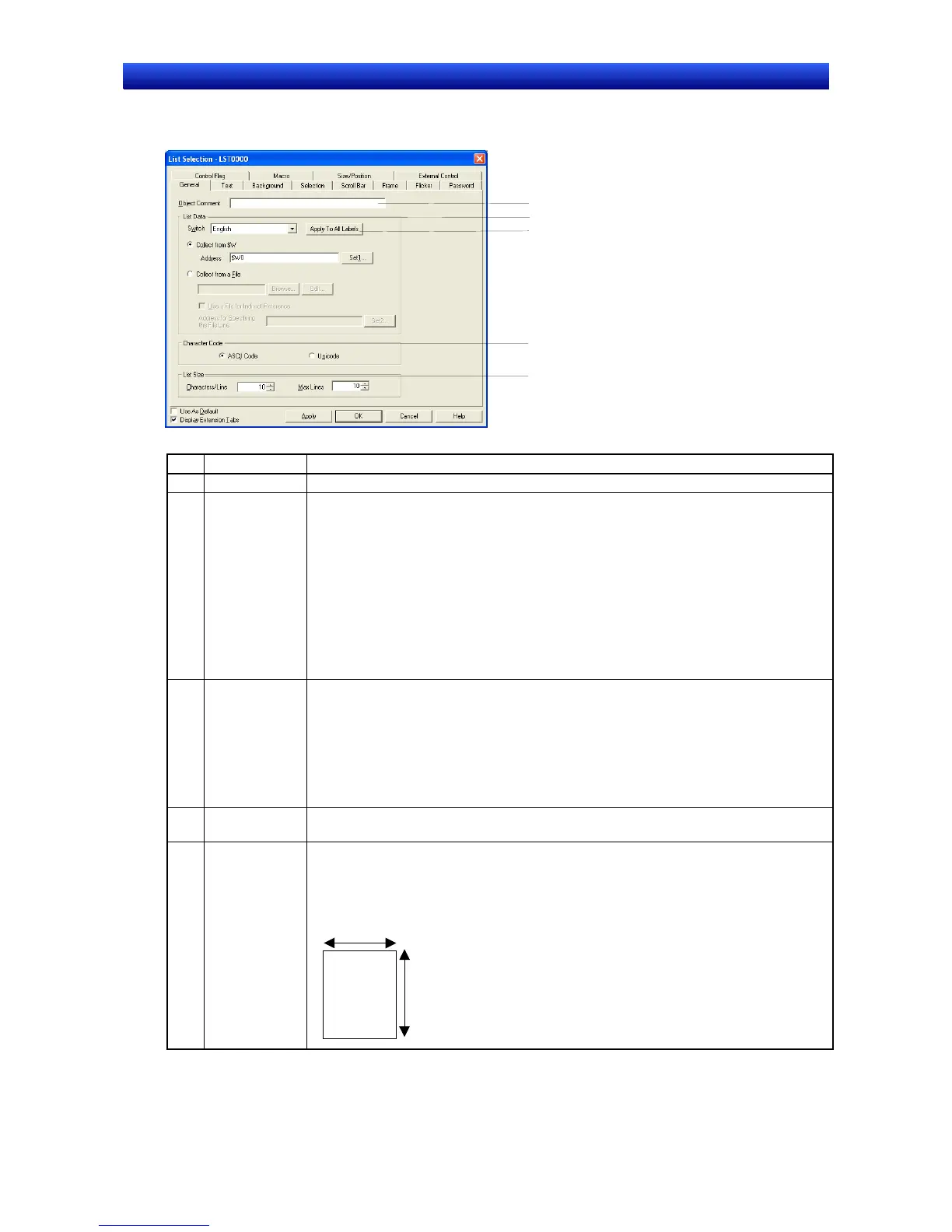

General Tab Page
Sets the list data, number of characters, and number of lines to be displayed.
1
2
4
5
3
No. Setting Details
1 Comment Sets an explanatory comment for the pasted object. (Up to 32 characters.)
2 List data Browses for a specified address or text file for strings to be displayed in the list.
If Store in $W is selected, the string data stored after a specified address will be dis-
played.
If Store in a file is selected, the string in a specified text file will be displayed. If storing
strings in text files for display using a list selection object, make the text file exten-
sion .LST. The file name can be up to 12 characters, including the .LST extension.
Click the Edit Button to open the text editor specified under CX-Designer Options
(Notepad is the default text editor) and edit the currently selected text file.
The file to be read can also be specified indirectly. Select Use a file for indirect refer-
ence and specify Store in a file for the LST file that created the list of file names to be
read. The list file that will be read will switch based on the contents of the address
specified under Address for Specifying the File Line.
3 Apply to All
Labels
Applies the following items to all of the selected labels:
• Store in &W: Address set value
• Store in file: File name
Apply to All Labels cannot be set in the following cases.
• When the List data of List Selection object Check Box is selected on the
Edit/Display Tab Page of the Option Dialog Box accessed by selecting Tools - Option.
• When there is only one label.
4 Character
code
Select whether the string in the address or text file will be in ASCII or Unicode.
5 List size Specifies the number of characters per line and the number of lines in a list.
Specifies the number of half-size characters when ASCII has been set.
Full-size characters are counted as two characters.
For Unicode characters, all characters are counted as one character.
1 to 1,024 lines max.
1 to 256 characters per line

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
