Section 2 NS Series Functions 2-13 Display
2-278
NS Series Programming Manual

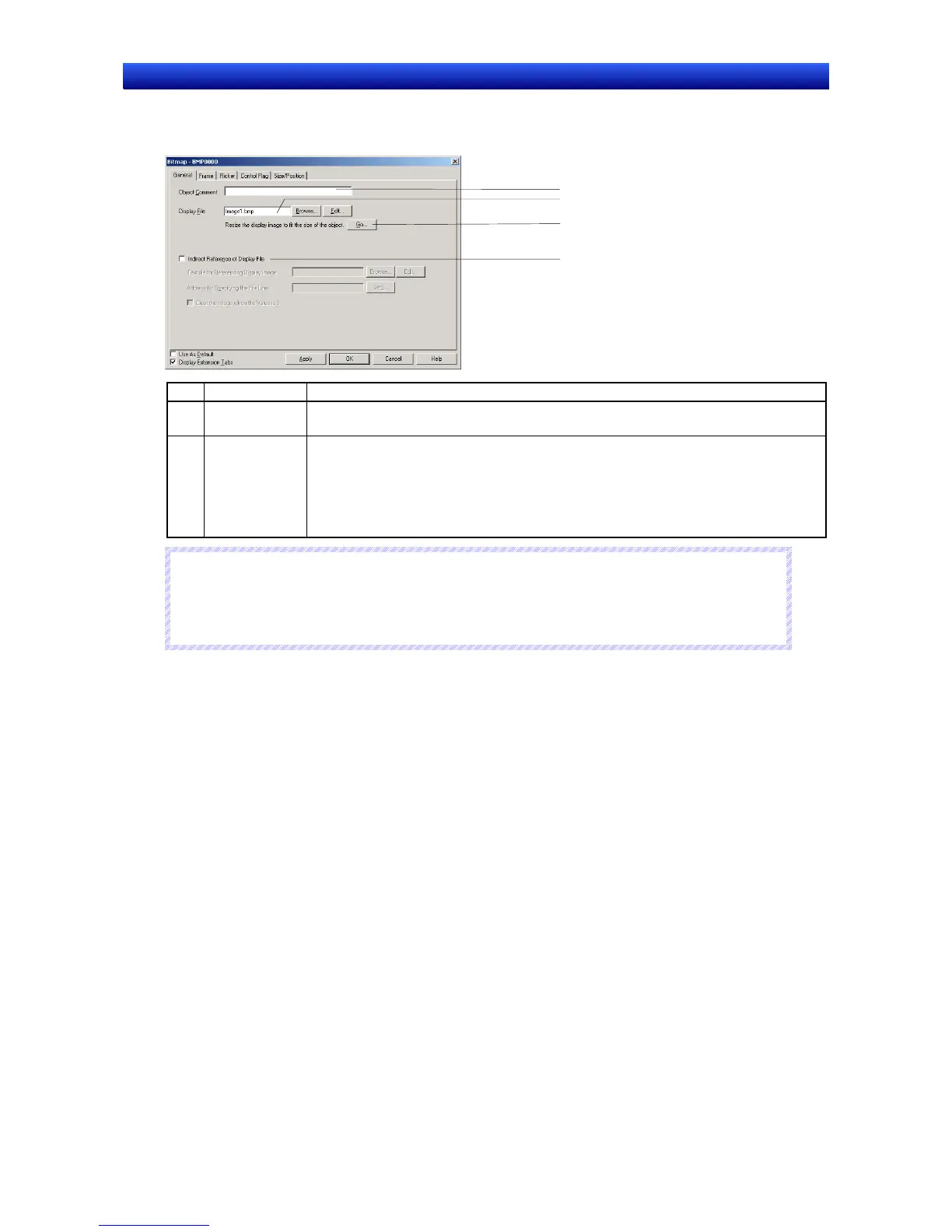

General Tab Page
Sets the bitmap file and comment to be displayed.
1
2
3
4
No. Setting Details
1 Comment Sets an explanatory comment for the pasted object.
(Up to 32 characters.)
2 Display file Selects the image file to be displayed. Files with the extension .bmp or .jpg can be
selected. Click the Browse Button to select image files.
The specified image file is copied to the folder where the project files are stored.
Specify a file name of up to 12 characters (8 file name characters and 3 file extension
characters). The following characters can be used in file names.
Alphanumeric characters, underscore (_), dollar signs ($), and periods (.).
N
N
N
o
o
o
t
t
t
e
e
e
RLE bitmap files and progressive format jpg files are not supported.
If a corrupted jpg file is set, the CX-Designer will not operate correctly. Check that the file can be
displayed correctly before specifying an image file for the bitmap.
