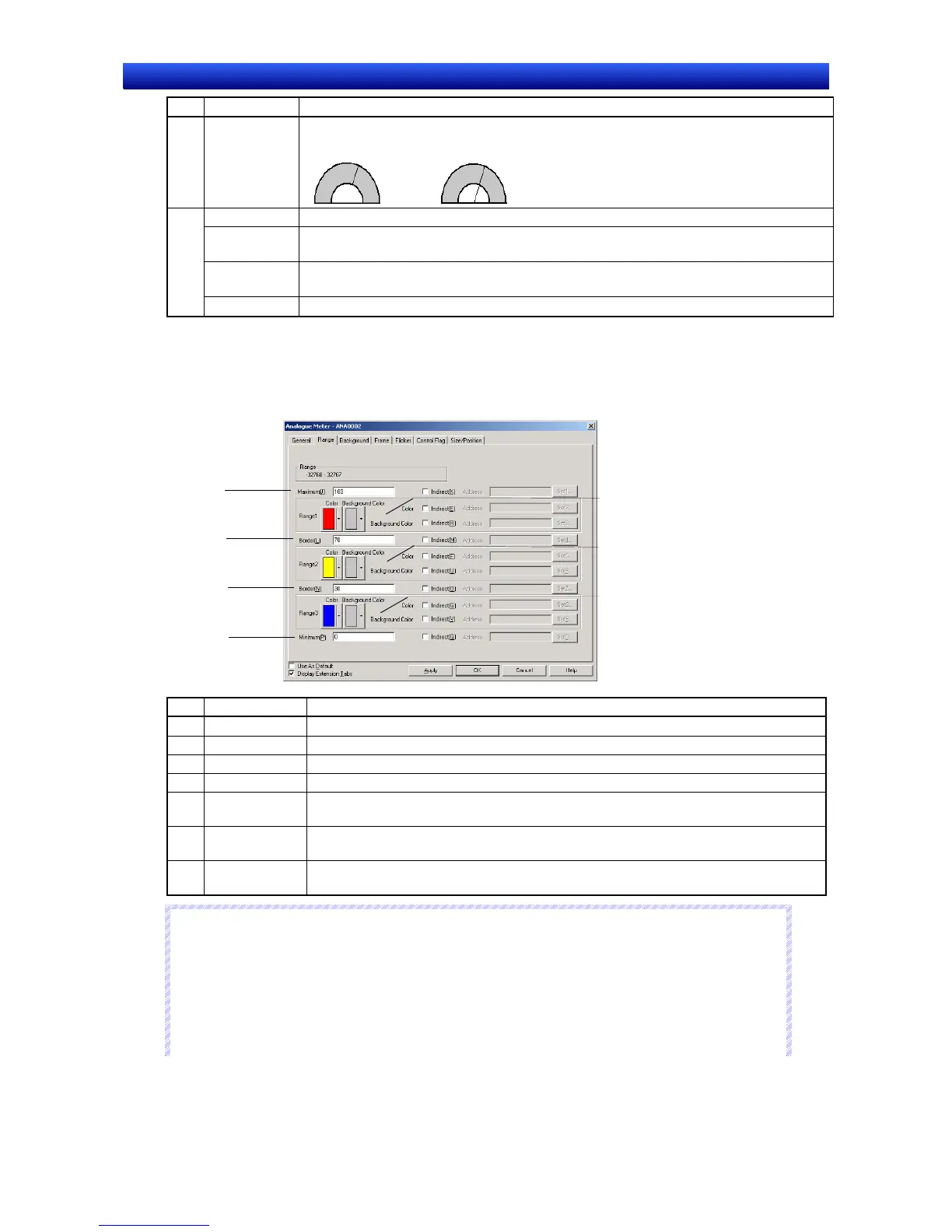

Section 2 NS Series Functions 2-13 Display
2-289
NS Series Programming Manual
No. Setting Details
2 Needle Type Selects the type of needle for the meter.
Type 1 Type 2
Style Sets the needle style.
Shape (See
note.)
Selects straight line, arrow, or triangular arrow as the needle shape.
Width (See
note.)
Selects the width from 1 to 3 (dots). This setting can be made when the shape is set to
either straight line or arrow.
3
Color Selects the color for the arrow.
Note: Can be set only for PT system version 8.2 or higher.
Range Tab Page
Sets the maximum, minimum, and borders for ranges 1 to 3.
5
7
6
1
2
4
3
No. Setting Details
1 Maximum Maximum range value or indirect word address
2 Border Border for range 1/range 2 or indirect word address
3 Border Border for range 2/range 3 or indirect word address
4 Minimum Minimum range value or indirect word address
5 Range1 Sets the fill color and background color for range 1.
These colors can also be set indirectly through a communications address.
6 Range2 Sets the fill color and background color for range 2.
These colors can also be set indirectly through a communications address.
7 Range3 Sets the fill color and background color for range 3.
These colors can also be set indirectly through a communications address.
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
The ranges that can be set for each item depend on the selected storage type. Refer to Numeral
Display and Storage Type (General Tab) in 2-8 Common Functions of Functional Objects.
♦
When referencing the border indirectly, specify a value in the same type as the storage type set on
the General Tab Page.
For example, if REAL (real number) is specified on the General Tab Page, set the border as a real
number.
To Next Page
