Section 2 NS Series Functions 2-13 Display
2-295
NS Series Programming Manual

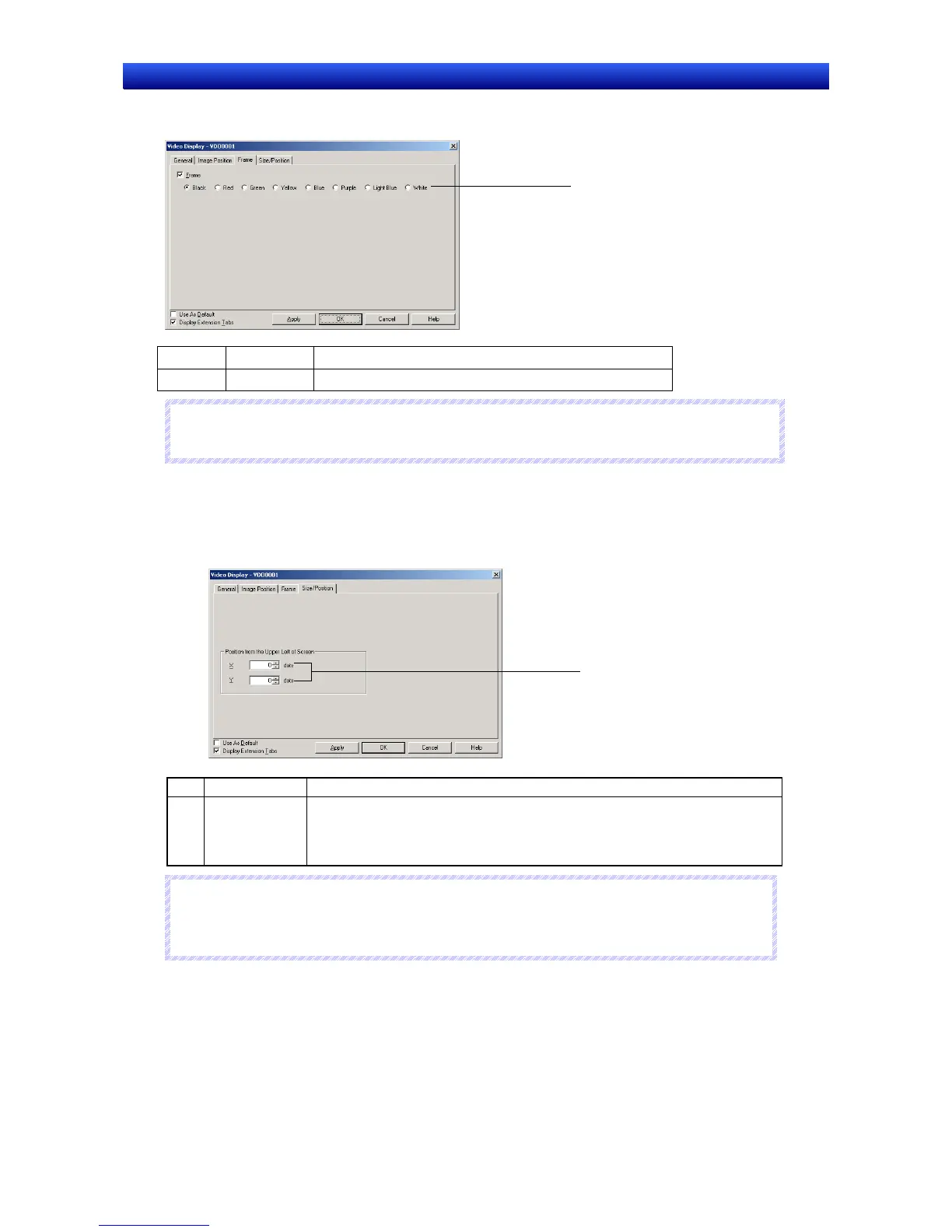

Frame Tab Page
Select a frame color.
1
No. Item Contents
1 Frame If you specify a frame, then select a frame color.
N
N
N
o
o
o
t
t
t
e
e
e
♦
A frame cannot be set when using a 800x600 size.
Size/Position Tab Page (Extension Tab)
Specify the display position for the video display by entering the horizontal position (X) and the vertical
position (Y) from the upper left corner of the screen. The setting ranges for X and Y are 0 to 160 and 0
to 120. Specify vertical and horizontal position in dot units.
1
No. Item Details
1.
Position from the
upper left of the
screen
Specify the display position from the upper left corner of the screen. Setting ranges are as
follows:
X:0 to 160
Y:0 to 120
N
N
N
o
o
o
t
t
t
e
e
e
♦
The video display cannot be moved outside of the screen.
♦
The position can be set only when choosing 640x480 or 320x240 size on the NS12.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
