Section 2 NS Series Functions 2-13 Display
2-294
NS Series Programming Manual

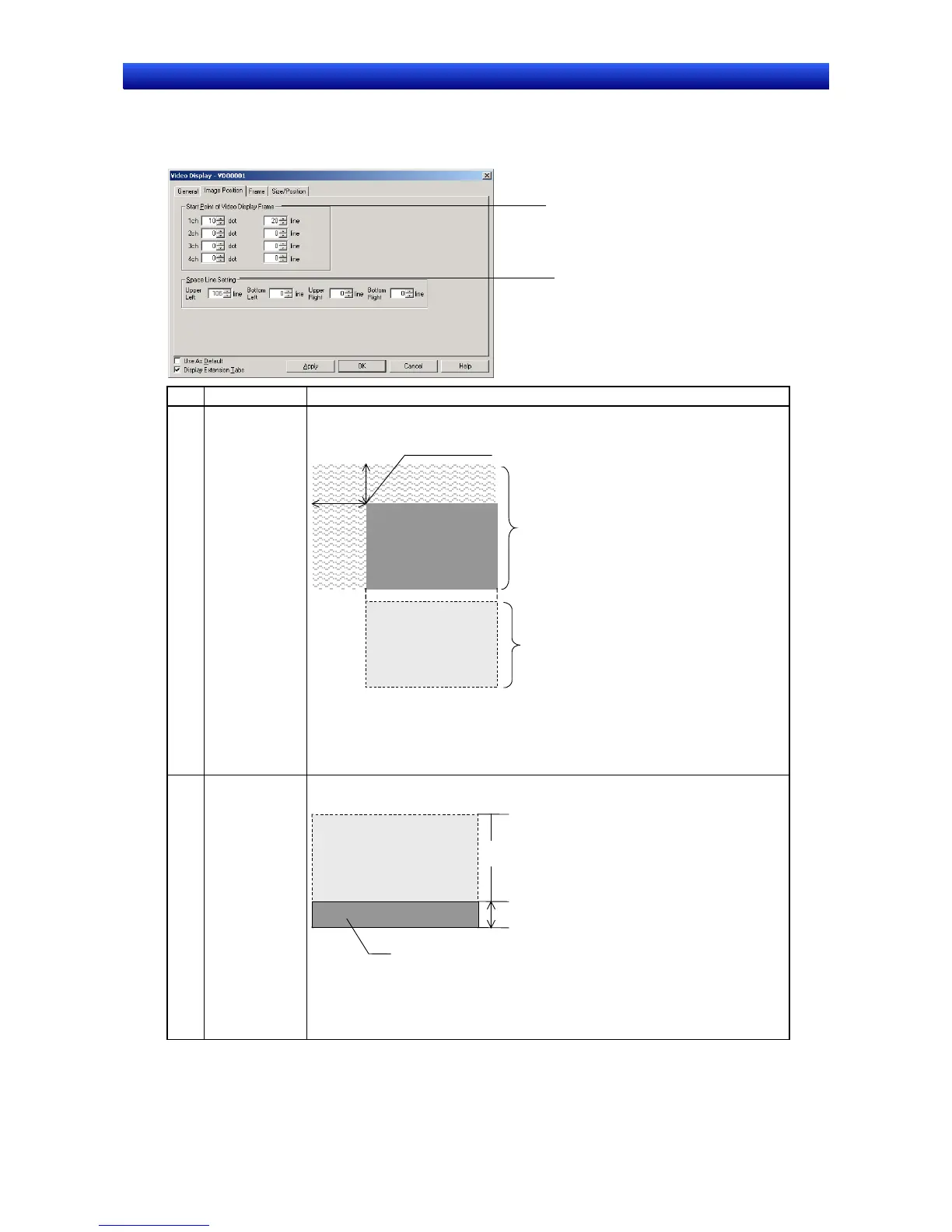

Image Position Tab Page
Select the part of the image that is to be displayed on the screen. This function is designed to modify
non-display areas contained in the data so that only necessary parts are displayed.
1
2
No. Item Details
1.
Start Point of
Video Display
Frame
Set the start position to get the data from the channel.
Dots
Display area for
video display
Lines
Starts Video display area
from this position.
The data that is
input.
The data that is
displayed.
Set the range as shown below.
Dot position: −64 to 127
Line position: −5 to 31
The image will be irregular if the dot position or line position cause the input image data to
exceed the valid range.
2.
Space Line
Setting
If image size is smaller than display area, spare part will be filled with black and displayed.
Set the size of fill area.
Display area of
the object.
Space line
The area set as space line is filled with the black on display area.
Set within the ranges shown below.
320x240: 0 to 239
640x480: 0 to 479
800x600: 0 to 599
