Omron NS Programming Manual

Section 2 NS Series Functions 2-14 Alarms and Events
2-316
NS Series Programming Manual

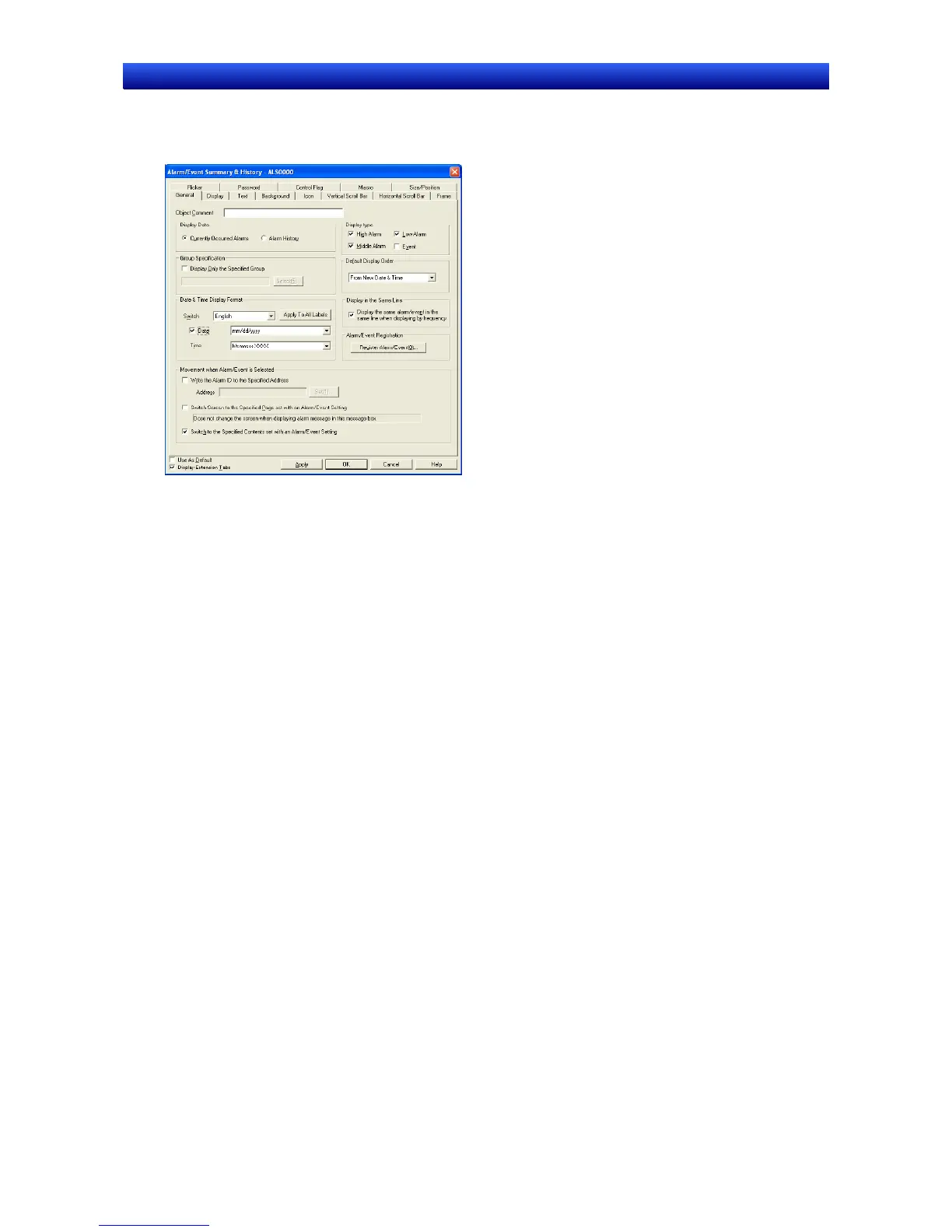

Settings for Functional Object Properties
This section describes the settings in the Functional Object Properties Dialog Box for alarm/event
summary and history objects.
General: Sets the alarm/event display format and display order.
Display: Sets the selection bar color, line height, and alarm/event summary display items.
Text: Sets the font and size for alarm display characters.
Background: Sets the background color for character display.
Icon: Selects the icon to operate alarm/event summaries.
Vertical Scroll Bar: Sets the bar size and scroll width for the vertical scroll bar.
Horizontal Scroll Bar: Sets the scroll width for the horizontal scroll bar.
Frame: Sets the object frame display.
Flicker: Sets the flicker display. (See note.)
Password: Sets the password to be entered when the object is pressed. (See note.)
Control Flag: Sets enable/disable input and display/no display for objects. (See note.)
Macro: Sets the macros for alarm/event summary and history objects. (See note.)
Size/Position: Sets the object size and position. (See note.)
Note: These tabs are displayed when Display Extension Tabs Option is selected.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
