Section 2 NS Series Functions 2-15 Data Logs
2-333
NS Series Programming Manual

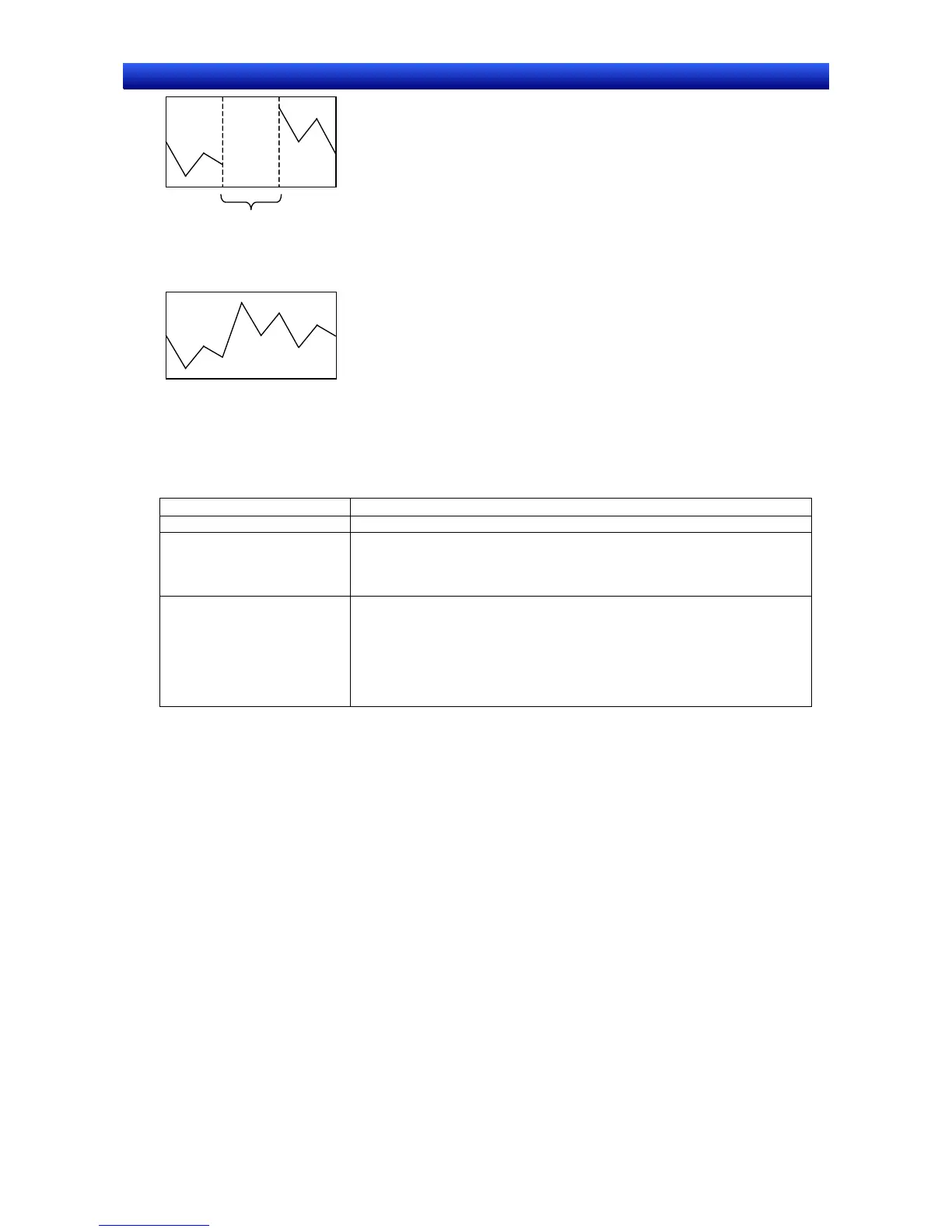

A
B
Interval when data
was not logged
If the Display the logging data without data during power off and stopping Option is selected, there will
be no blanks in the graph from when data was not logged, i.e., the graph line will be continuous.
A
B
The graph is displayed with
no blanks from when data
was not logged.
If the Display the logging data without data during power off and stopping Option is selected, the dis-
play settings will be changed or restricted as described in the following table.
Setting Description
Time display position The time will be displayed where logged data is displayed.
Data log graph settings that
are disabled
The following settings cannot be made.
• The sampling cycle cannot be set to 0.5 s.
• The sampling cycle cannot be set to Indirect reference of sampling cycle
• The log timing cannot be set to On event.
Data log graph property set-
tings than cannot be set
The following setting cannot be made on the Time Axis Tab Page of the
Property Setting Dialog Box for the data log graph.
• The scale cannot be set to Indirect Reference.
• The graph display position cannot be set to Position end of scrolling at the
center of data log graph.
• The graph display position cannot be set to Setting Address for Updating
Display.
Note: If the Display the logging data without data during power off and stopping Option is selected for a data log
graph for which any of the above settings has already been made, the settings will automatically be can-
celed. The scale of the data log graph will be set to Time.
To Next Page
