Section 2 NS Series Functions 2-15 Data Logs
2-332
NS Series Programming Manual
4. Click the Select Button to close the dialog box. The selected bitmap file image will be displayed to
the right of the existing icons in the Details Dialog Box.
Click the OK Button to close the Details Dialog Box.
Click the OK Button to close the Data Log Setting Dialog Box.
5. Set the icon to be displayed on the Icon Tab Page of the data log object Property Dialog Box.
6. Click the OK Button to close the Property Dialog Box. The icon for which a Bitmap was specified
will be displayed on the data log object.
N
N
N
o
o
o
t
t
t
e
e
e
♦
When the number of colors in the designated image file is a True Color number, it is automatically
reduced to 32,000.
♦
Specify a file name of up to 12 characters (8 file name characters and 3 file extension characters).
The following characters can be used in file names: alphanumeric characters, underscore (_), dollar
signs ($), and periods (.).

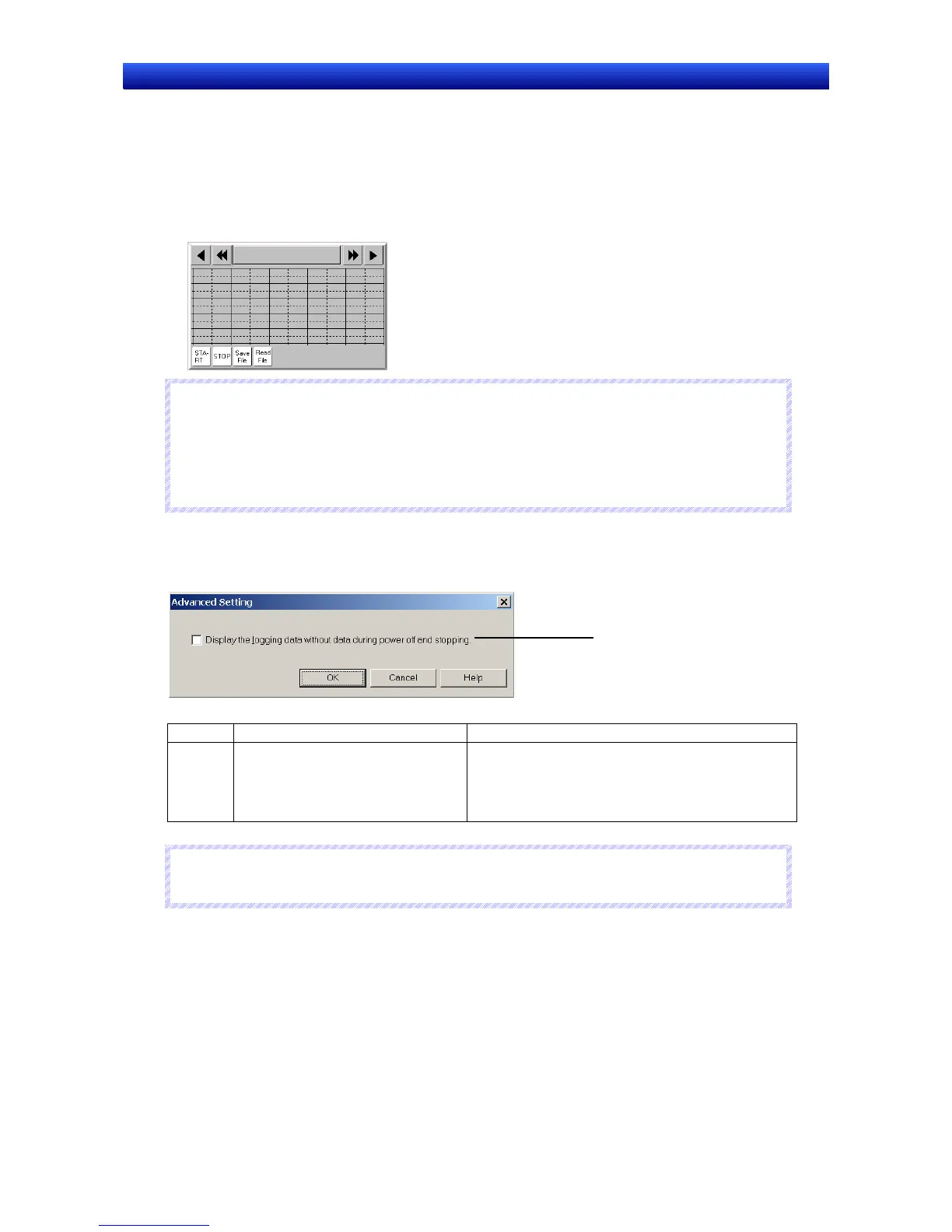

Display Settings for Data Log Graphs
The display method for data long graphs can be changed. Press the Advanced Setting Button on the
Data Log Setting Dialog Box to display the Advanced Setting Dialog Box.
1
No. Setting Description
1 Display the logging data without data
during power off and stopping
If this option is selected, no blanks will occur in the
data log graph during the following periods:
• While data logging is stopped
• While the power to the PT is turned OFF
• While the System Menu is displayed
N
N
N
o
o
o
t
t
t
e
e
e
♦
This setting is supported for project data version 8.1 or higher.
Displaying Logged Data without Data When Power Is OFF or Logging is Stop
If the Display the logging data without data during power off and stopping Option is selected, no blanks
will be left in the graph when power is turned OFF or logging is stopped. If this option is not selected or
if the project data version is lower than 8.1, the graph line will not be displayed in a data log graph
whenever logging was not performed.
To Next Page
