Omron NS Programming Manual

Section 2 NS Series Functions 2-15 Data Logs
2-331
NS Series Programming Manual

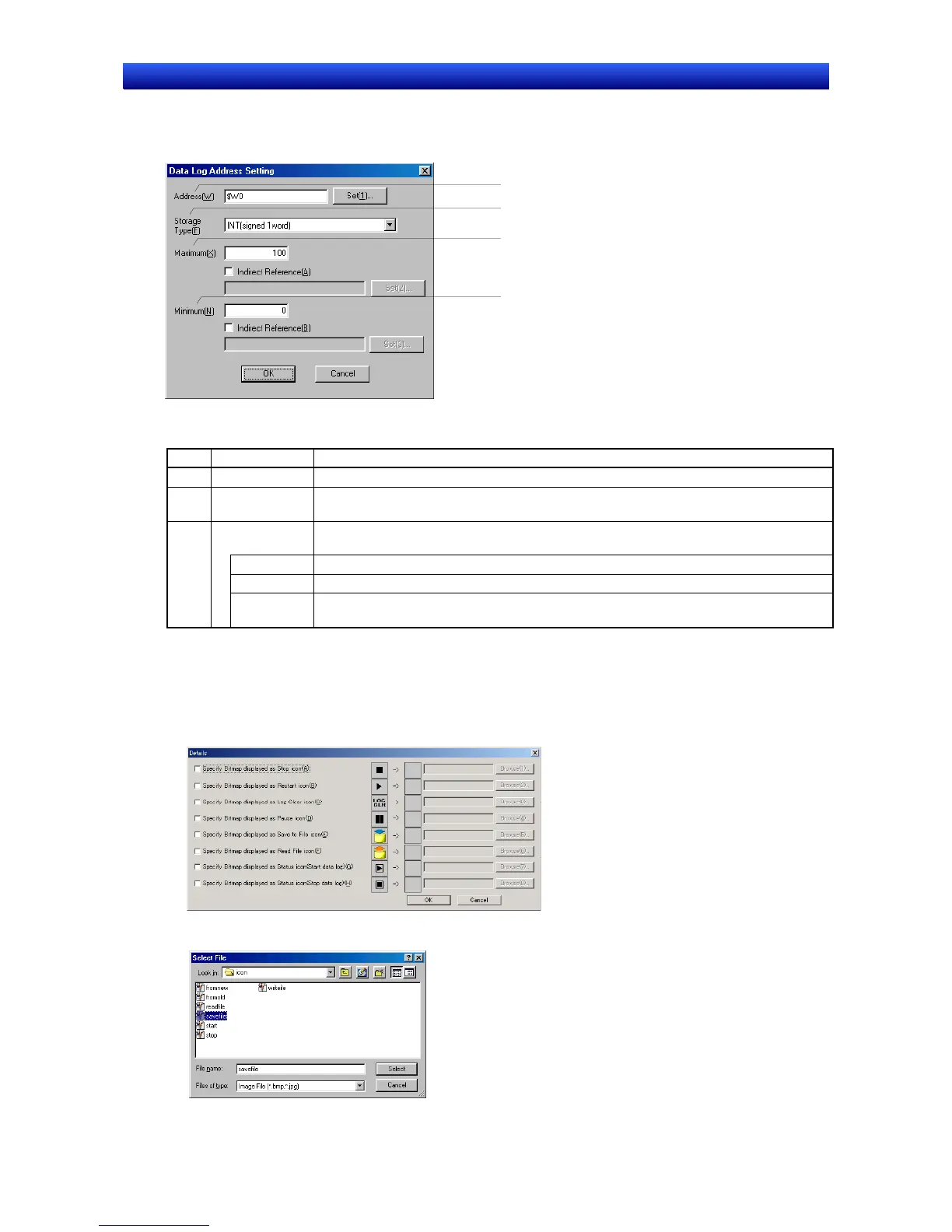

Data Log Address Settings
Sets the address for the data to be saved and the graph line information to be displayed on the data log
graph.
1
2
3
3
The settings for each line shown in the data log graph are made under the data log address setting. Up
to 16 items of data can be set for each group.
No. Setting Details
1 Address Sets the address where the data is stored.
2 Storage type Select the storage type for numerals from the list. Refer to Numeral Display and Stor-
age Type under 2-8 Common Functional Object Functions for details.
Maximum/
minimum
Sets the maximum and minimum values for graph display.
Maximum The maximum that can be set depends on the storage type for each line.
Minimum The minimum that can be set depends on the storage type for each line.
3
Indirect
Reference
If Indirect reference is set, the maximum and minimum values can be specified by the
contents of an address.
Specifying Icons
Bitmap files can be specified for data log object icons. The setting method is described below.
1. Select PT – Data log to display the Data Log Setting Dialog Box.
2. Click the Icon Button to display the Details Dialog Box.
3. Select the icon for the specified Bitmap and click the Browse Button. The Select File Dialog Box
will be displayed. Specify the file to be displayed as an icon.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
