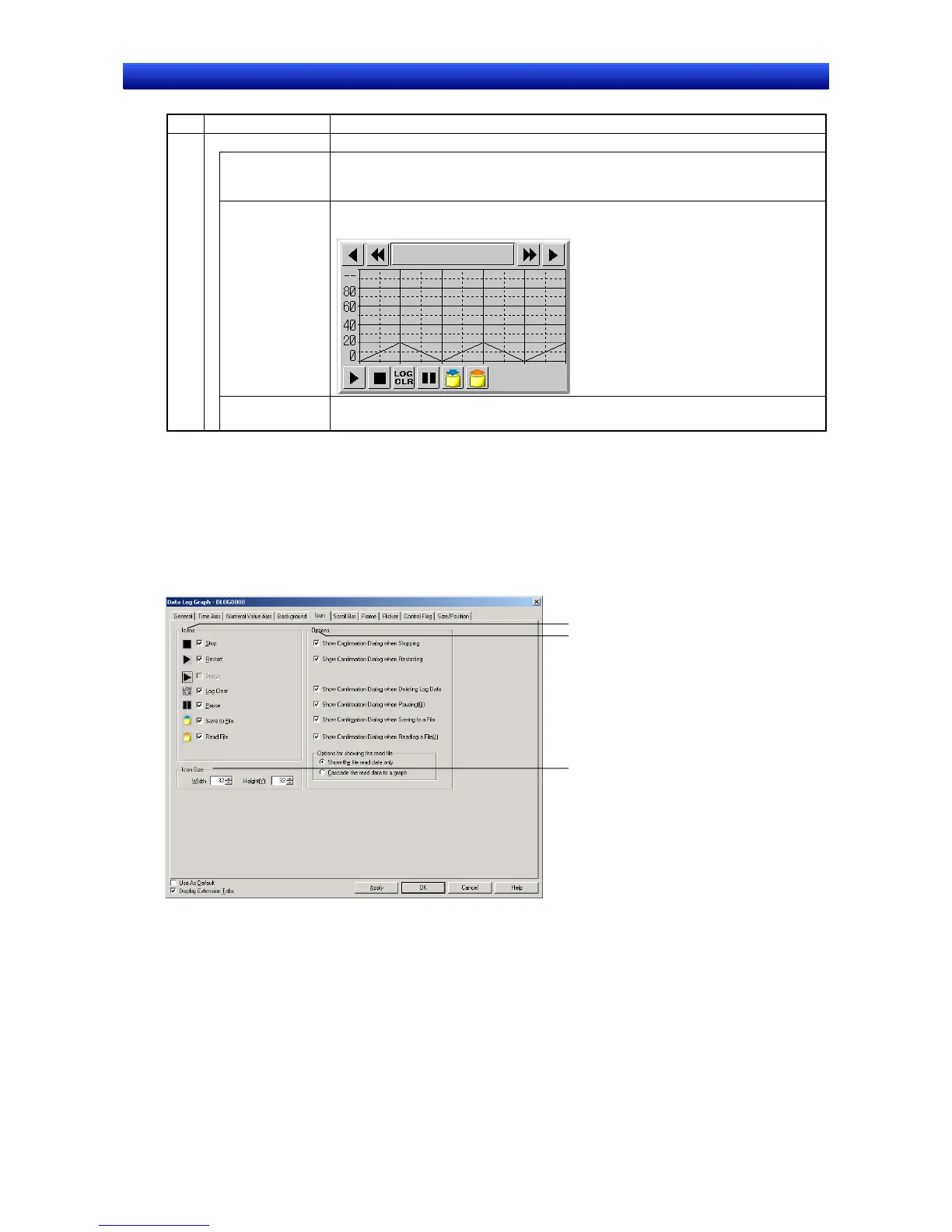

Section 2 NS Series Functions 2-15 Data Logs
2-344
NS Series Programming Manual
No. Setting Details
Show values Sets values.
Show values on
the numeral
value axis
Selects to show values on the numeral value axis.
Format “-“ will be displayed for values that exceed the number of digits set under Format.
Example: When
Format is set to 2 (digits), and the maximum value is 100:
6
Text
Click the
Text Attribute Button to set text attributes such as the text color and font.
For details, refer to
2-8-6 Text Attributes.
Background Tab Page
Sets whether or not the background is tiled. If the background is to be tiled, the background color for
the graph can be selected from 256 colors. Click Indirect reference of color to reference the color
code stored at a specified address for the background color. Refer to Background under 2-8 Common
Functional Object Functions for details.
Icon Tab Page
Selects the icon to be displayed for manipulation of graph display.
1
2
3
