Section 2 NS Series Functions 2-15 Data Logs
2-351
NS Series Programming Manual

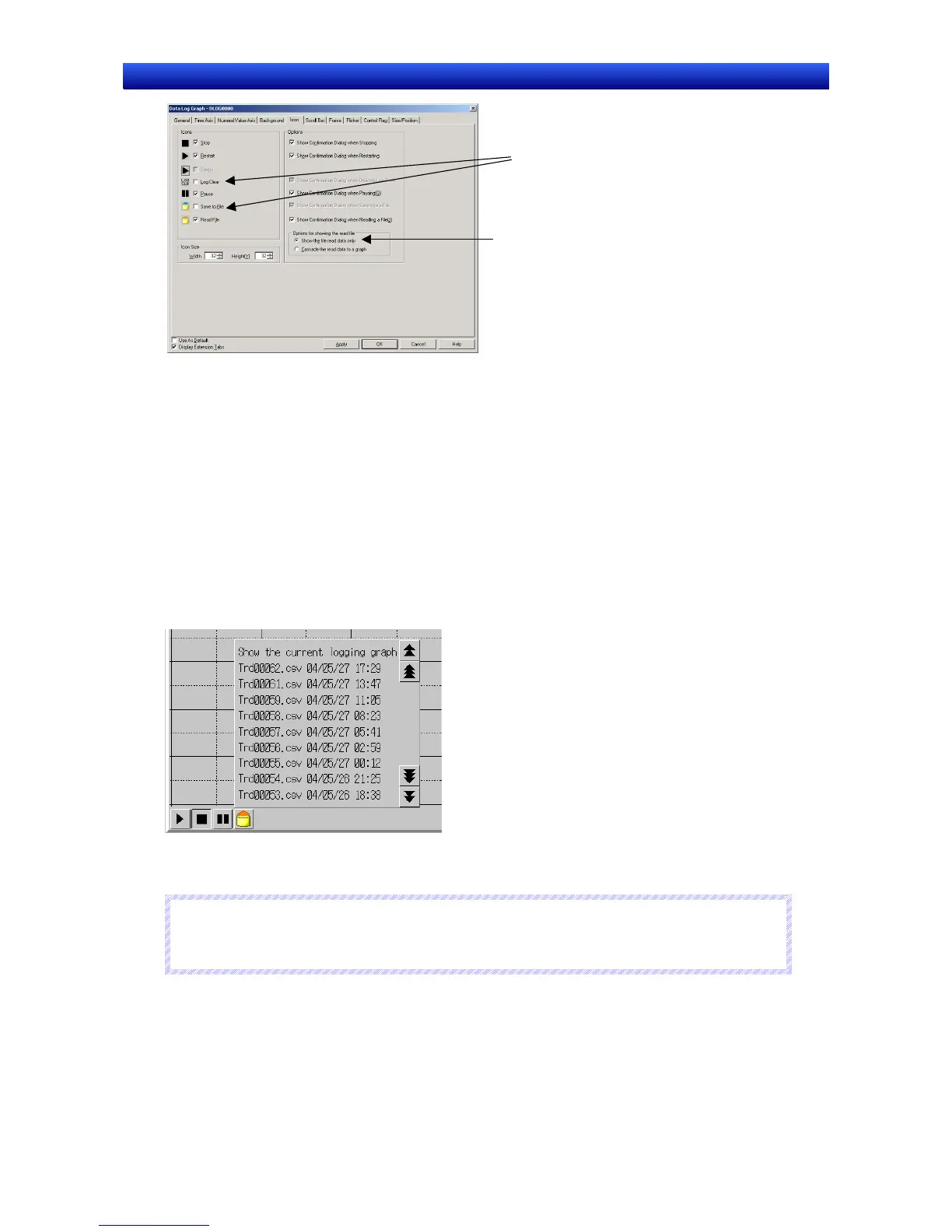

4 De-select Log clear and Save to File.
5 Select Show the read data only.
6. Click the OK Button to transfer the project to the NS hardware.
Operations on the NS hardware
1. Insert the Memory Card into the NS hardware.
2. Start the NS hardware, which now has the project created using the procedures described in the
last section.
The NS hardware logs 5 addresses every 2 seconds and periodically saves the logging data to the
Memory Card.
To read the saved data from the Memory Card, click the Read File Icon on the Object while logging is
stopped to display the list of data file names, in descending order, in a pop-up menu. Select the desired
file from the pop-up menu.
To display a graph that is currently being logged, click the Read File Icon on the Object and select
Show the current logging graph, in the first line of the pop-up menu.
N
N
N
o
o
o
t
t
t
e
e
e
♦
Memory Cards can be rewritten up to 100,000 times. If you were to repeatedly rewrite the Card in
10-minute intervals, 100,000 rewriting cycles would be completed within 2 years.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
