Omron NS Programming Manual

Section 2 NS Series Functions 2-15 Data Logs
2-350
NS Series Programming Manual

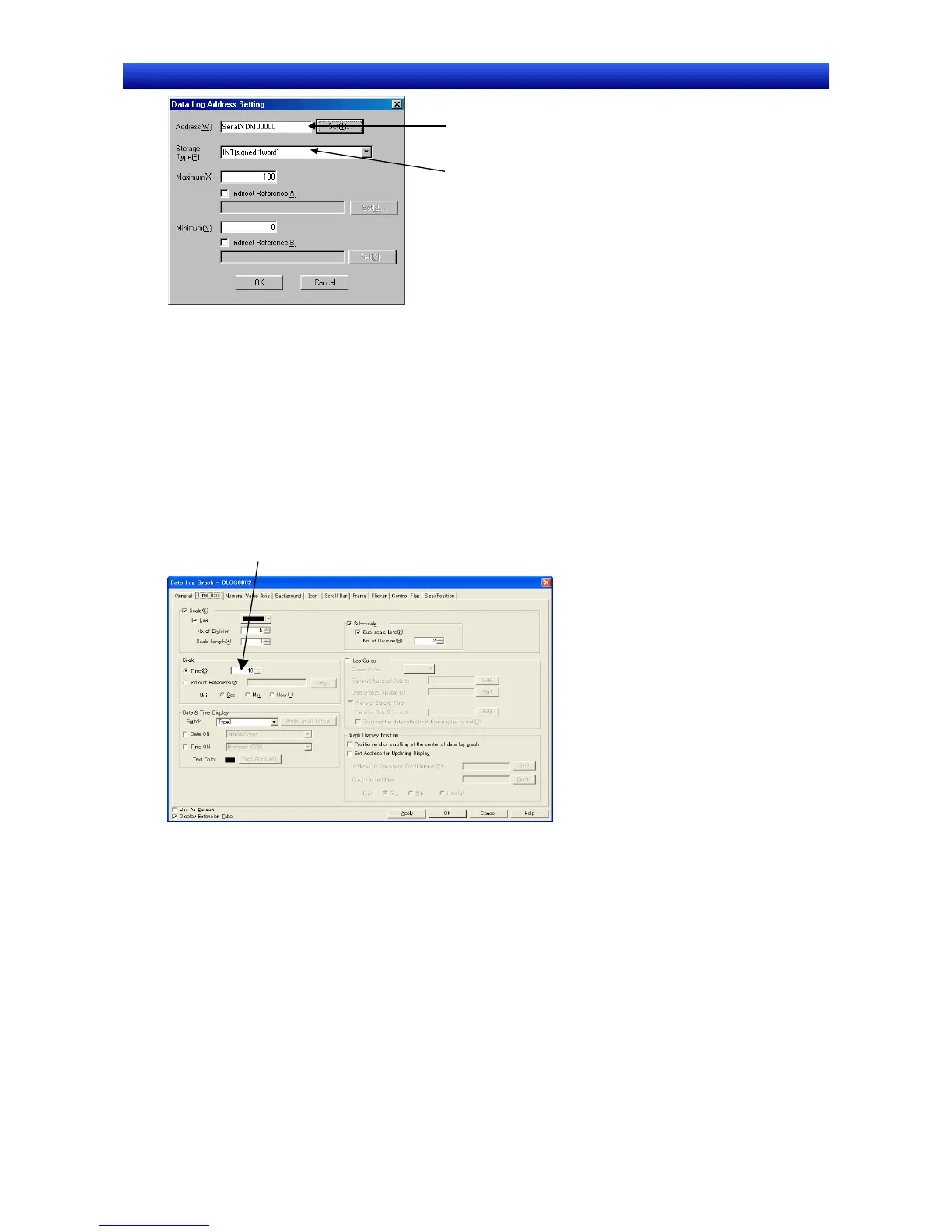

Set the logging address.
Select the storage type at the
specified address.
12. Click the OK Button to return to the Data Log Group Setting Dialog Box.
13. Repeat steps 10 to 12 to register 5 addresses.
14. Click the OK Button in the Data Log Group Setting Dialog Box.
15. Click the OK Button in the Data Log Setting Dialog Box.
Settings for Functional Object Properties
1. Place a data log object on the screen if there isn’t one there already.
2. Double-click the data log object to display the Functional Object Properties Dialog Box.
3. Display the Time Axis Tab Page and set the scale for the time axis. In this example, “10” minutes’
worth of log data is set for display.
3. Set the amount of the logging period to be displayed at one time.
4. Display the Icon Tab Page and de-select Log clear and Save to file under Icon Display. These icons
are not required because the log is set to be automatically saved.
5. Select Show the read data only under Options for showing the read file in the Options section.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
