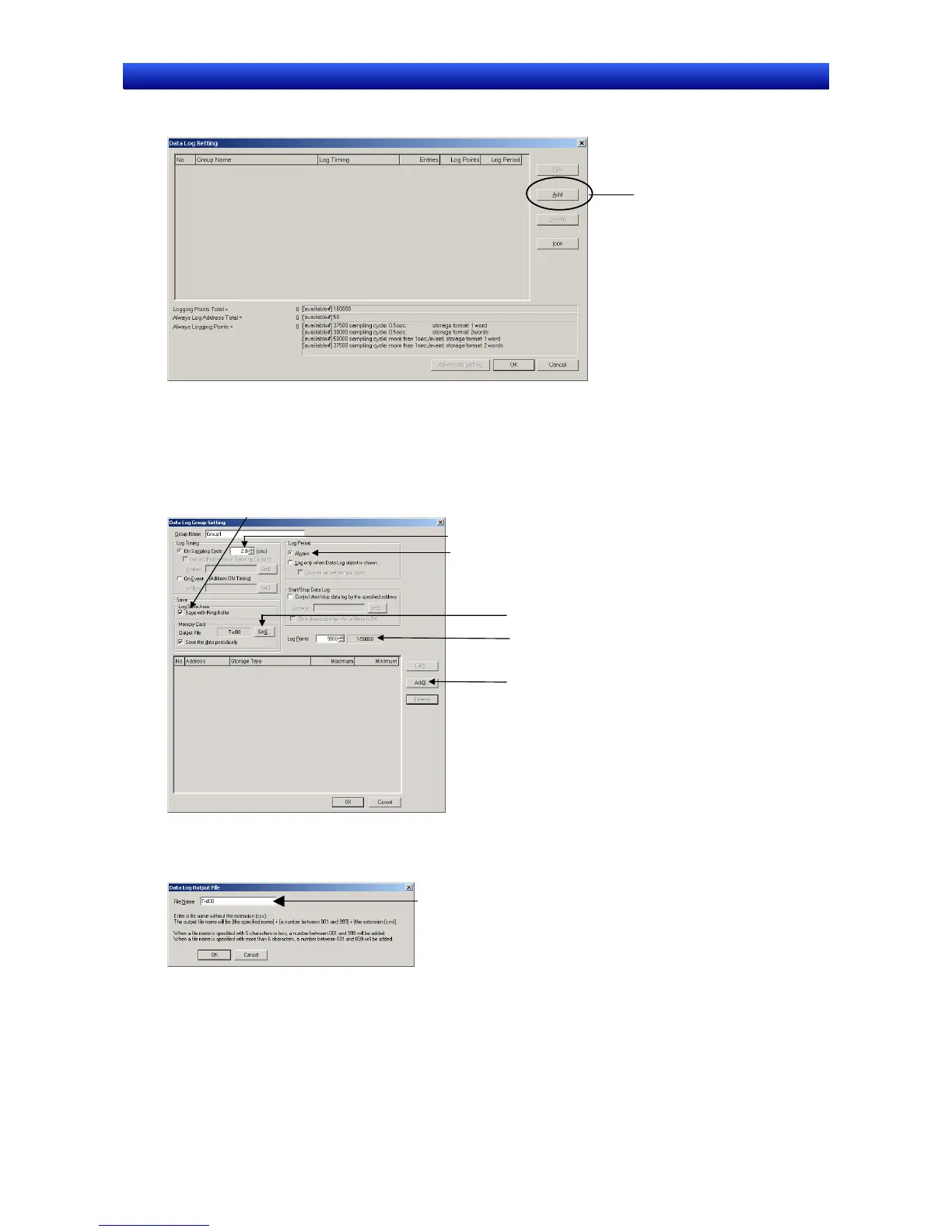

2. Click the Add Button in the Data Log Setting Dialog Box to display the Data Log Group Setting
Dialog Box.
2
3. Set the sampling cycle.
4. Select both Save the data periodically and Save with Ring Buffer.
5. Set the number of logging points to be saved in one CSV file. In this example, the logging period is
5 hours (18,000 s) and the sampling cycle is 2 s, so the number of logging points is 18,000
÷ 2, i.e.,
9,000, so 9000 is set.
4 Select both Save data periodicall
y
and Save with Ring Buffe
r
.
3 Set the sampling cycle.
5 Set the number of logging points.
6 Set the output file name.
10 Add the logging addresses.
9 Check that the logging period is set to Always.
6. Click the Set Button next to Output file at the upper right of the screen to display the Data Log
Output File Dialog Box.
Enter the output file name.
The default is “Trd00”.
Up to 36 alphanumeric characters
can be used for a file name.
7. Enter the output file name.
8. Click the OK Button to return to the Data Log Group Setting Dialog Box.
9. Check that the logging period is set to Always.
10. Click the Add Button to display the Data Log Address Setting Dialog Box.
11. Set the logging address and the address storage type.
