Omron NS Programming Manual

Section 2 NS Series Functions 2-16 Broken-line Graphs
2-369
NS Series Programming Manual
N
N
N
o
o
o
t
t
t
e
e
e
♦
If the displayed screen does not contain a broken-line graph, data will not be read when the batch
read
Trigger address goes ON and data will not be cleared when the Clear history when address
changes to ON
address goes ON.
♦
The Operation Complete Flag is not turned OFF automatically. This flag must be turned OFF
from a user screen or the PLC.
♦
When the No. of Histories is set to 1 or higher, the most recent graph and the specified number of
previous graphs are displayed in the broken-line graph. When the
No. of Histories is set to 0,
only the most recent graph is displayed in the broken-line graph.
Example:
No. of
Histories
Displayed graphs Graph data retained in history
2
Most recent graph
and the last graph
The most recent graph’s data and the last graph’s data
are retained. (Data for two graphs is retained.)
1
Only the most re-
cent graph
The most recent graph data is retained.
0
Only the most re-
cent graph
No graphs are retained.

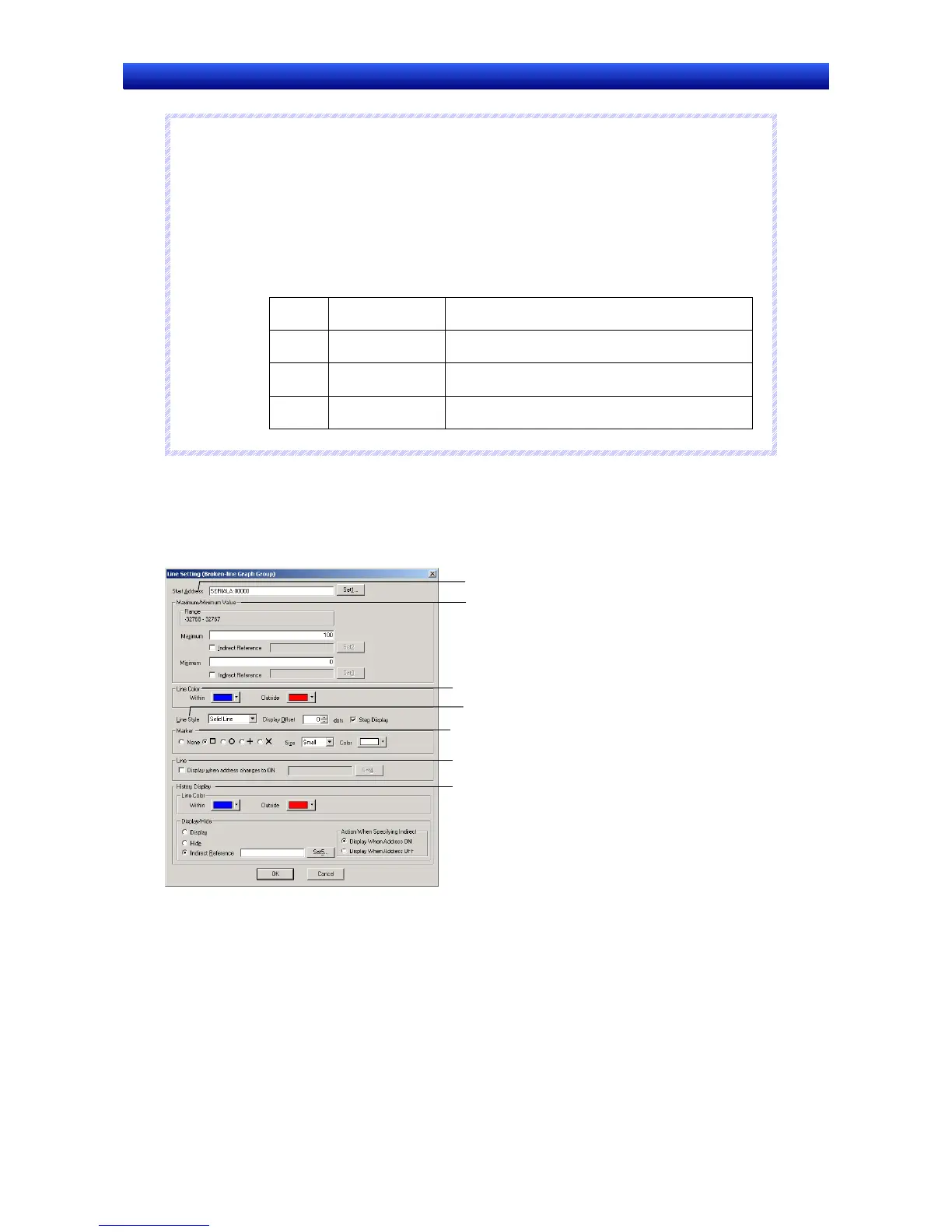

Line Setting (Broken-line Graph)
The Line Setting (Broken-line Graph Group) Window will be displayed when the Add or Set Button is
clicked in the Broken-line Graph Group Setting Window.
Use this window to make the settings for the broken-line graph’s lines.
1
3
4
5
2
6
7

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
