Section 2 NS Series Functions 2-16 Broken-line Graphs
2-375
NS Series Programming Manual

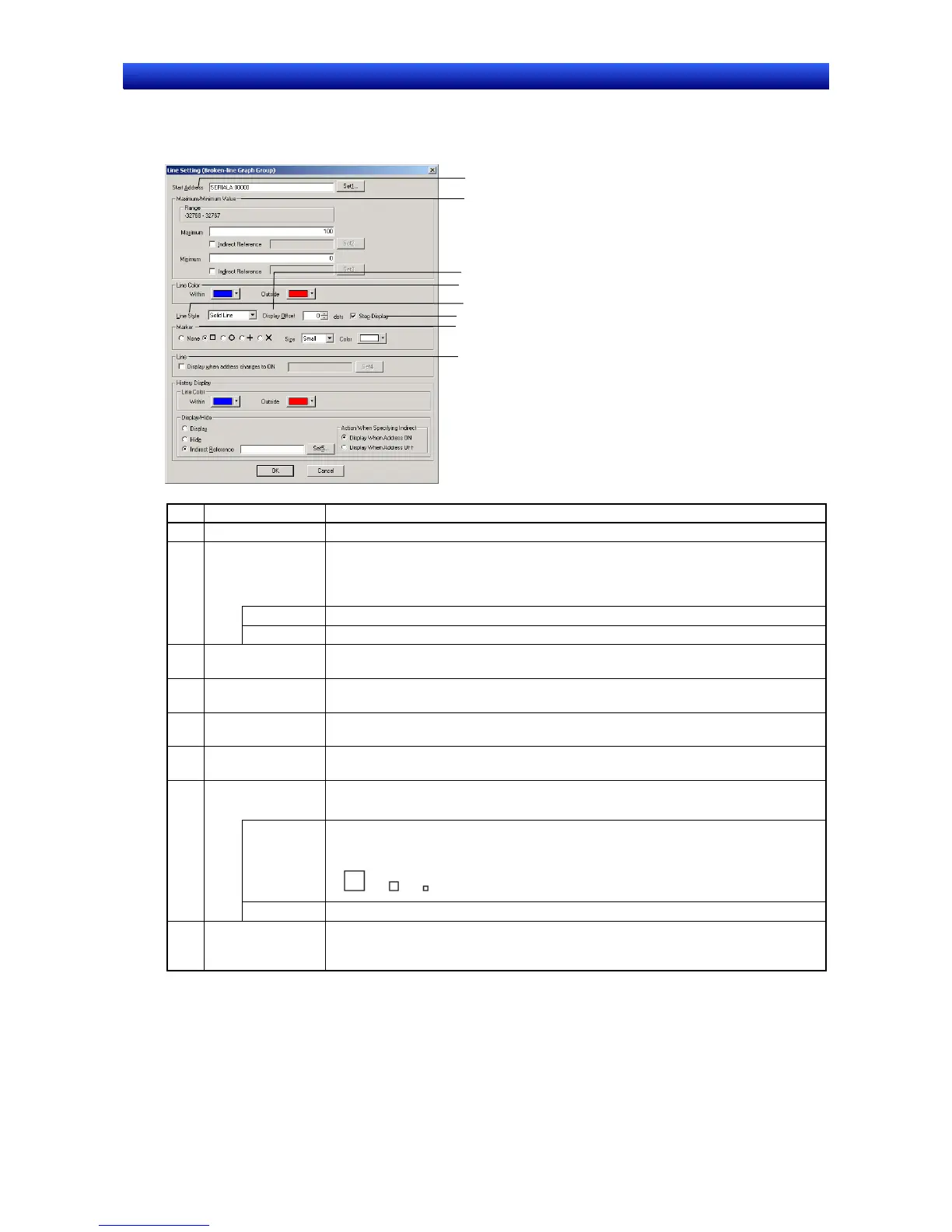

Line Setting (Broken-line Graph) Dialog Box
Sets the line attributes. Press the Add Line and Set Line Buttons on the Graph Tab Page to display
the following dialog box.
1
3
4
7
2
8
5
6
No. Setting Details
1 Start address Sets the start address referenced for the data.
Maximum and
minimum values
Sets the maximum and minimum values for graph display. If maximum and mini-
mum values are set, the color of the graph lines can be set to change when these
values are exceeded. If
Indirect reference is set, the maximum and minimum values
can be specified by the contents of an address.
Maximum Sets the upper limit.
2
Minimum Sets the lower limit.
3 Line color Sets the line color (from 256 available colors). The color can be changed depend-
ing on whether or not the set upper and lower limits have been exceeded.
4 Line style Select from the five line types listed below. Solid line, dotted line, broken line, 1-dot
chain line, or 2-dot chain line
5
Step display If step display is used, the origin is shown connected by vertical and horizontal
lines.
6
Display offset Displays the broken-line graph in an offset position, where a specified offset (num-
ber of dots) have been added to the position for the present value
7 Marker Selects one of the following five markers to be displayed at the peaks.
None, @, , +, or ×
Size Selects large, middle, or small for marker size.
The sizes are shown below.
Large Medium Small
Color
Select the marker color (from a choice of 256 colors) under the Set Button.
8
Display when
address changes
to ON
When this option is selected, the graph line will be displayed while the specified
communications address is ON.
To Next Page
