Omron NS Programming Manual

Section 2 NS Series Functions 2-17 Data Blocks
2-380
NS Series Programming Manual
Procedures for Data Blocks
There are two methods that can be used to transfer, display, and edit recipe data: manipulate the data
in the data block or combine functional objects, such as command buttons and Numeral Display & In-
put objects.
Manipulating Data Block Data

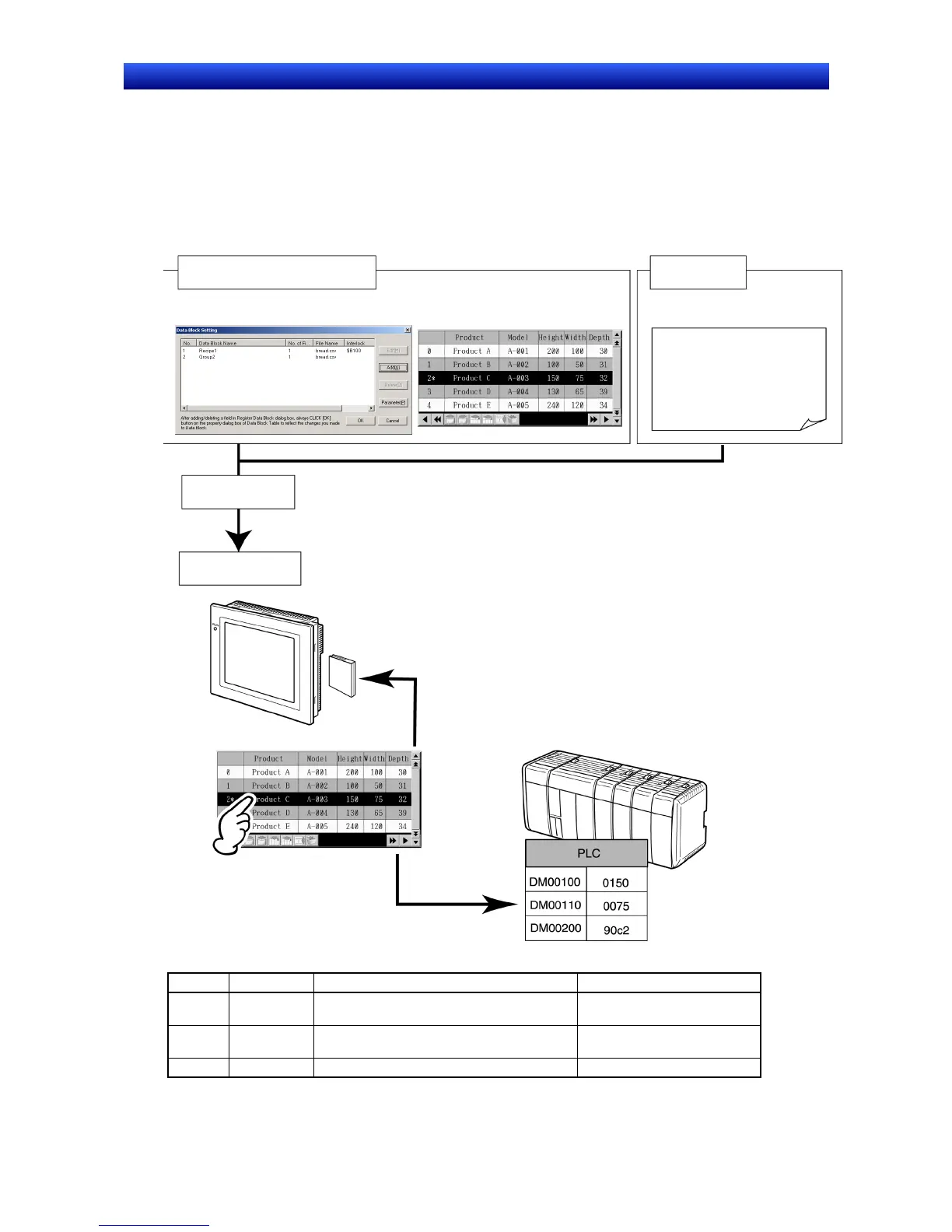

Use the following procedure to transfer, display, and edit recipe data by manipulating the data in the
data block.
"Product A", "A-000",100,20,200
"Product B", "B-000",90,22,180
"Product C", "C-000",110,50,300
"Product D", "D-000",80,15,200
"Product A1", "A-000",98,18,190
"Product B1", "B-000",95,25,175
"Product C1", "C-000",120,45,350
Project created on CX-Designer.
CSV file
1. Data block set.
2. Data block table created.
3. Data file created.
Transferred to PT
Operations on PT
Memory Card
Values set in PLC.
Save the data file
on a Memory Card.
Data Block Table
No. Item Contents See
1
Data Block
Setting
Sets the data format and address for the field, and the
number of records.
Setting Data Blocks
2
Data Block
Table
Shows the data block, and sets the selected data
for each address.
Data Block Table
3 Data File Shows the data in the data block. Creating Data Files

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
