Section 2 NS Series Functions 2-17 Data Blocks
2-381
NS Series Programming Manual

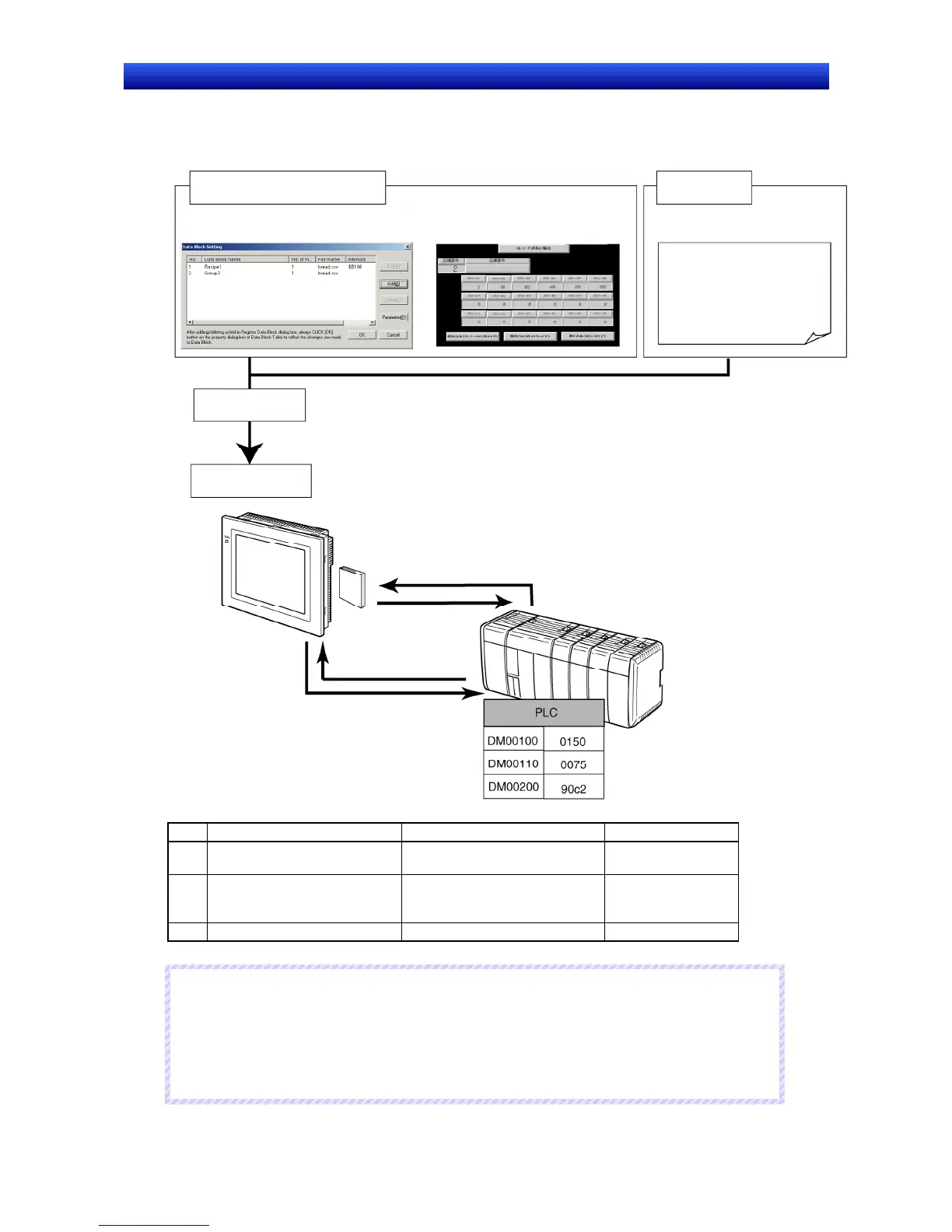

Combining Functional Objects
Use the following procedure to transfer, display, and edit recipe data by combining functional objects,
such as command buttons and Numeral Display & Input objects.
"Product A", "A-000",100,20,200
"Product B", "B-000",90,22,180
"Product C", "C-000",110,50,300
"Product D", "D-000",80,15,200
"Product A1", "A-000",98,18,190
"Product B1", "B-000",95,25,175
"Product C1", "C-000",120,45,350
Project created on CX-Designer. CSV file
1. Data block set.
2. Screens created with functional
3. Data file created.
Transferred to PT
Operations on PT
Memory Card
Values written to PLC.
Save the data file
on a Memory Card.
Values read to PT memory.
Values set in PLC.
No. Item Contents See
1 Data Block Setting
Sets the data format and address for
the field, and the number of records.
Setting Data Blocks
2
Creating Screen with Functional
Objects, such as Command Buttons
Sets communications addresses for
specified data and creates screens to
edit data file.
Using Data Blocks
3 Data File Shows the data in the data block. Creating Data Files
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
Either the data block settings and the data block table can be created on the CX-Designer first, or
the data file can be created first. The following items, however, must correspond.
• Number of fields • Data format • Number of records
Refer to the relating parts of this manual for items set on the CX-Designer and the data file setting
first, and then make the settings.
