Section 2 NS Series Functions 2-17 Data Blocks
2-384
NS Series Programming Manual
N
N
N
o
o
o
t
t
t
e
e
e
♦
The Delete Button deletes the selected field only. Multiple fields cannot be deleted at the same
time.
♦
You cannot add more records than the maximum number of records on the PT.
♦
Always specify the data file. The PT automatically reads data file when displaying data blocks. If
data file set in the data block setting does not exist, the following message will be displayed.
Although the data block table exists on the screen, failed to read CSV file to display in the data
block table.
[Data Block (X) CSV File] The object will not be displayed correctly.

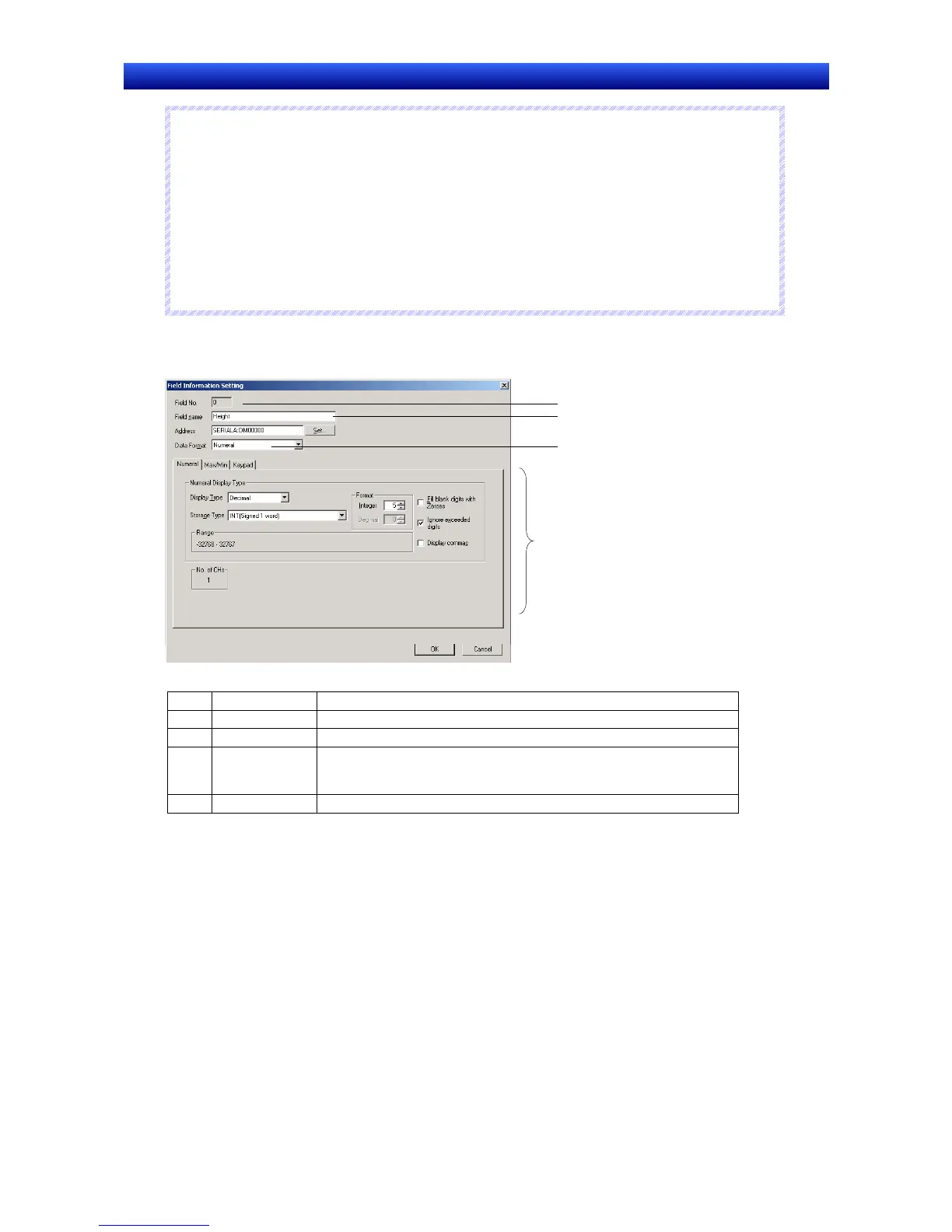

Field Settings
This section explains the properties in the Field Setting Dialog.
1
2
4
3
No. Item Details
1 Field Name Sets the field name (up to 32 characters).
2 Address Sets the destination address to read and write for the field.
3 Data Format
Sets the data format for the field. The following types can be set.
• Numeral
• String
4 Detailed Setting Displays items for each data format. Refer to the next page for details.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
