Section 2 NS Series Functions 2-17 Data Blocks
2-390
NS Series Programming Manual
Setting Data Block Tables

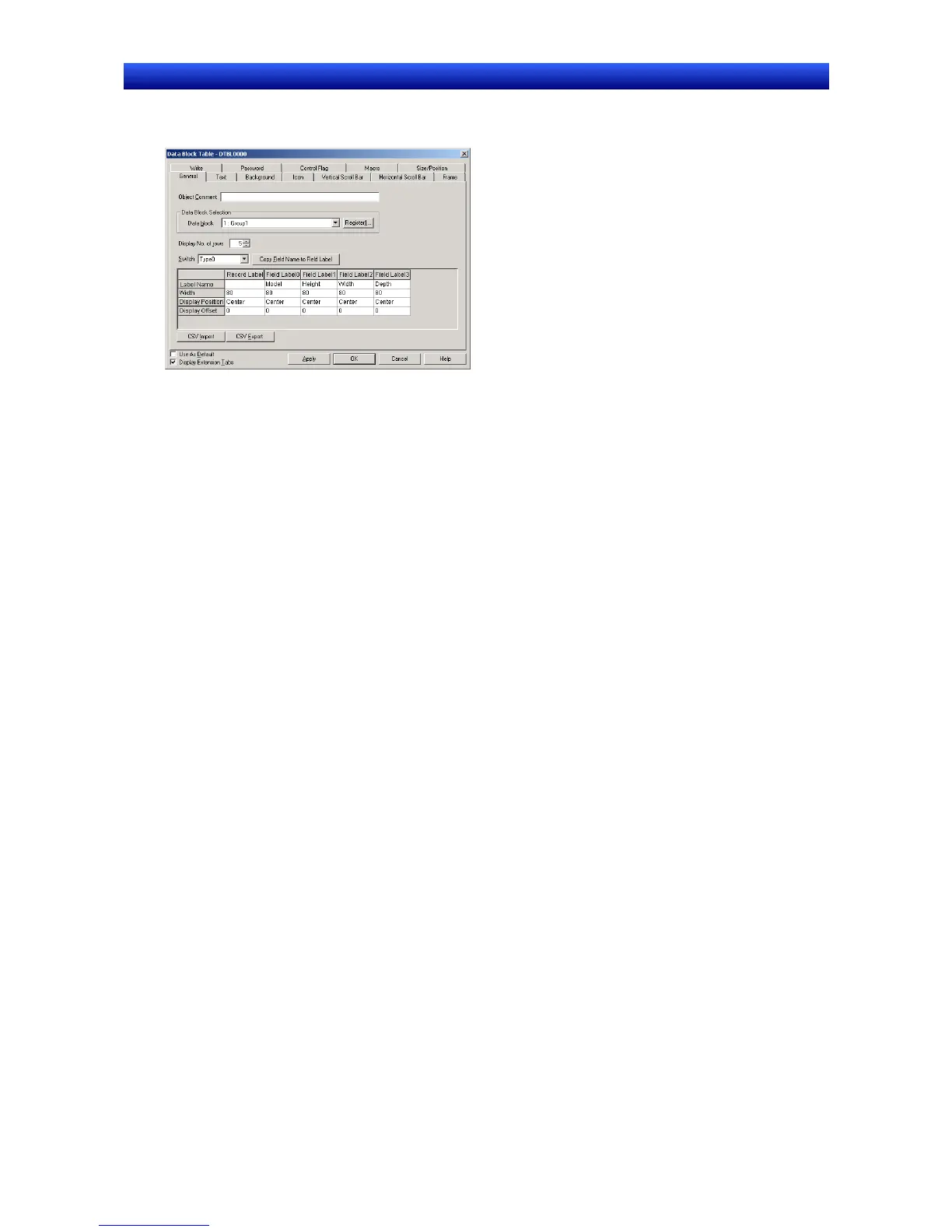

This section explains the properties set for data block tables in the Data Block Table Dialog Box.
General: Sets the data block and display format.
Text: Sets the text attribute for displaying numeral and string data.
Background: Sets the background color of the data block and the record color.
Icon: Sets whether an icon button is displayed at the bottom of the object.
Vertical Scroll Bar: Sets the button size and scroll range for the vertical scroll bar.
Horizontal Scroll Bar: Sets scroll range for the horizontal scroll bar.
Frame: Sets the frame color and size of the data block.
Write: Sets the write confirmation message to be displayed when changing
field data on the data block. (See note.)
Password: Sets the password to be entered when changing field data on the data
block. (See note.)
Control Flag: Enables and disables input and display. (See note.)
Macro: Sets the macro to be executed when setting the field value. (See note.)
Size/Position: Sets the size and position of the object. (See note.)
Note: These tabs are displayed only when Display Extension Tabs is selected
.
