Section 2 NS Series Functions 2-19 Machine Navigator Function
2-424
NS Series Programming Manual
Vertical Scroll Bar Tab Page

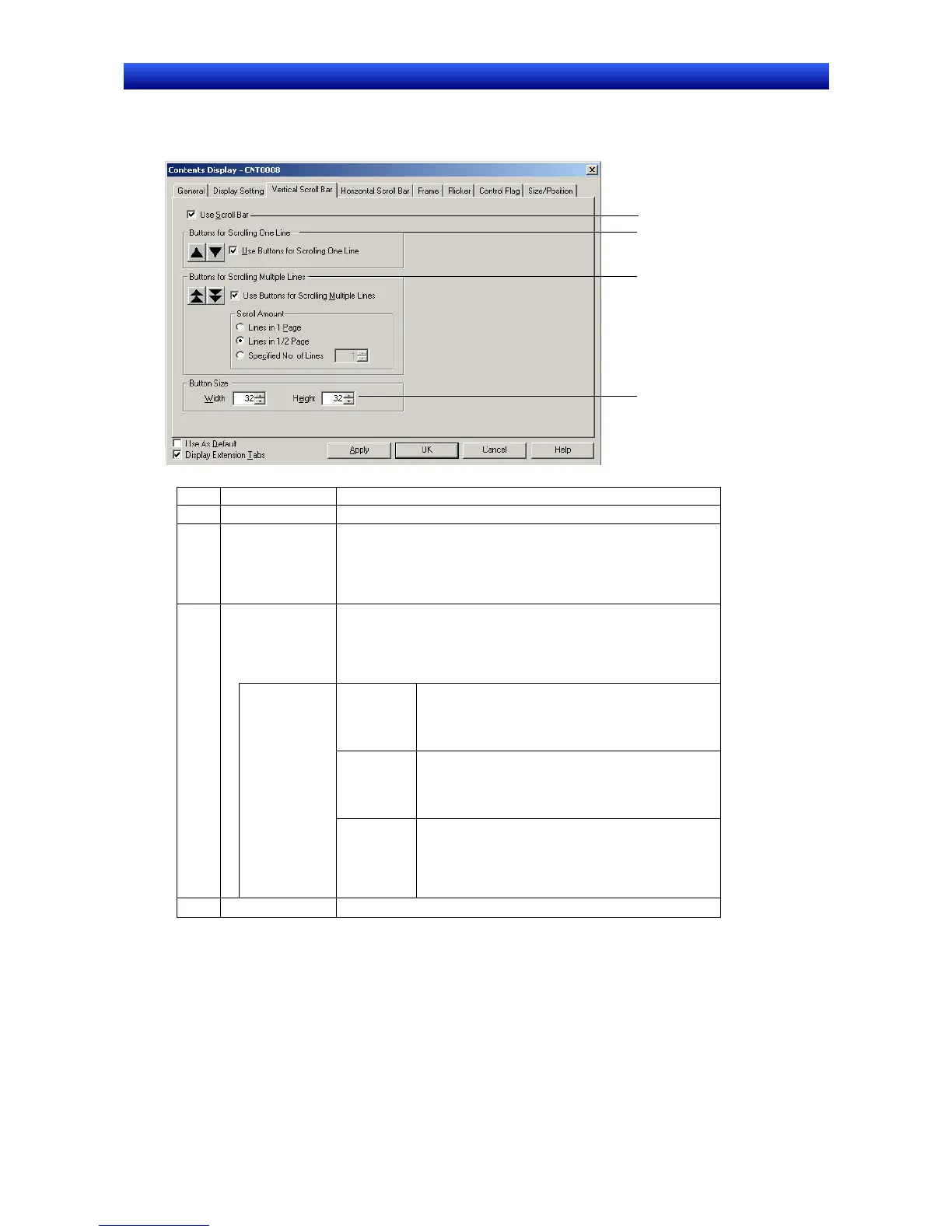

The Vertical Scroll Bar Tab Page is used to display/hide the scroll bar and to set the scroll width and
the button size for the vertical scroll bar. Strings are scrolled by line and images are scrolled by dot.
1
2
3
4
No. Item Details
1 Use Scroll Bar Select to use a scroll bar.
2 Buttons for
Scrolling One
Line/ Buttons for
Scrolling One
Dot
Select this checkbox to use a one-line (one-dot) scroll button.
Each time the scroll button is pressed the display will move up
one line (for string display) or one dot (for image display).
Buttons for
Scrolling Multiple
Lines/ Buttons
for Scrolling
Multiple Dots
Select this checkbox to use a scroll button that scrolls the
specified number of lines (or dots).
Select one of the following scroll amounts.
Lines in
One Page/
Dots in
One Page
Scrolls the number of lines displayed at one time,
for string display.
For image display, scrolls the number of dots
displayed at one time.
Lines 1/2
Page/ Dots
1/2 Page
Scrolls half the number of lines displayed at one
time, for string display.
For image display, scrolls half the number of dots
displayed at one time.
3
Scroll Amount
Specified
No. of
Lines/
Specified
No. of Dots
Scrolls the specified number of lines for string
display.
Scrolls the specified number of dots for image
display. (1 to 1,920).
4 Button Size Sets the scroll button size dots (16 to 48).
