Section 2 NS Series Functions 2-19 Machine Navigator Function
2-425
NS Series Programming Manual

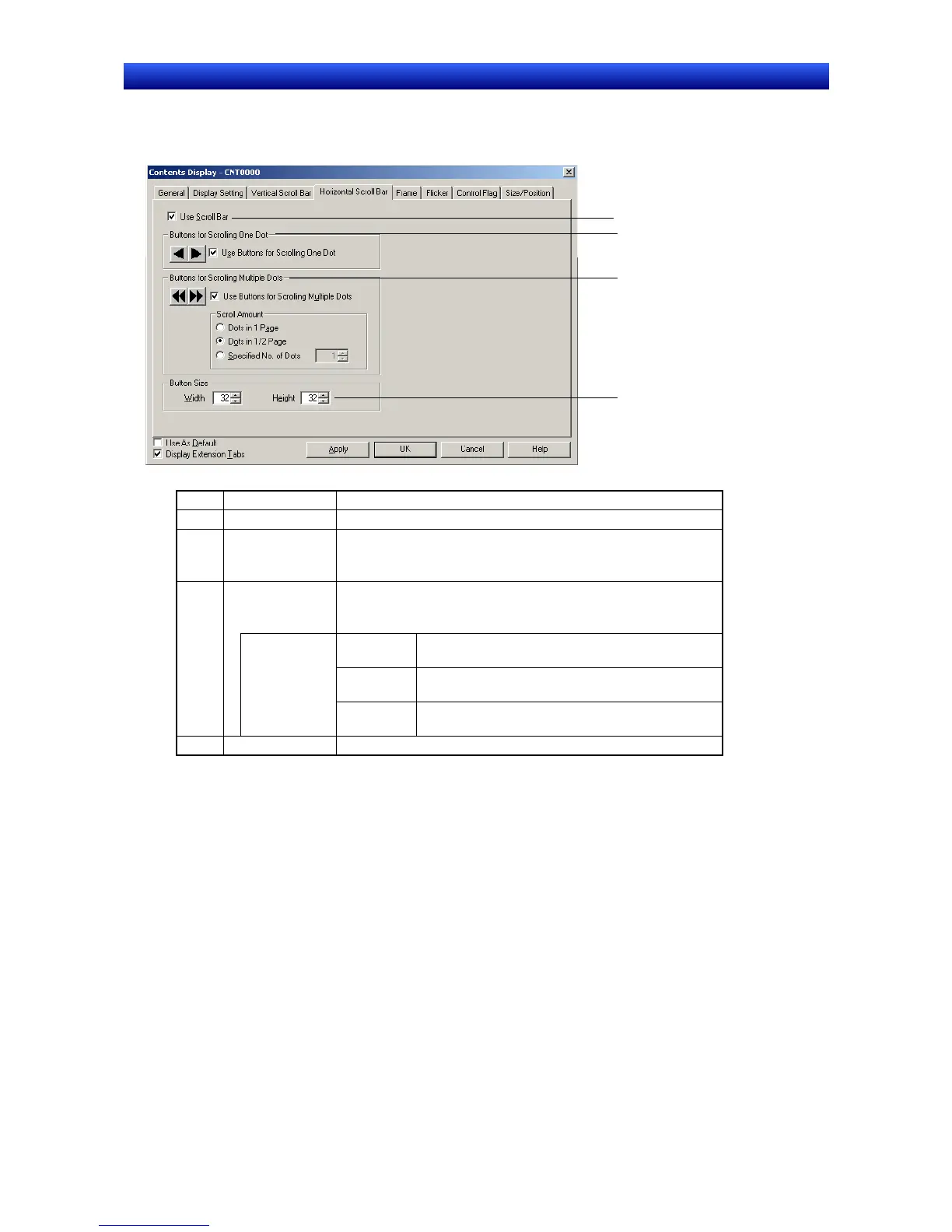

Horizontal Scroll Bar Tab Page
The Horizontal Scroll Bar Tab Page is used to display/hide the scroll bar, and to set the scroll width and
the button size for the horizontal scroll bar. Horizontal scroll is by dot for both string and image display.
1
2
3
4
No. Item Details
1 Use Scroll Bar Select to use a scroll bar.
2 Buttons for
Scrolling One
Dot
Select this checkbox to use one-line scroll buttons.
The display moves one dot to the right or left each time a scroll
button is pressed.
Use Buttons for
Scrolling Multi-
ple Dots
Select this checkbox to use scroll buttons for a specified num-
ber of dots.
Select one of the following scroll amounts.
Dots in
One Page
Scrolls the display for the number of dots dis-
played at one time.
Dots in 1/2
Page
Scrolls the display for half the number of dots
displayed at one time.
3
Scroll
Amount
Specified
No. of Dots
Scrolls the specified number of dots (1 to 2,560).
4 Button Size Sets the scroll button size in line units (16 to 48).
Frame
The Frame Tab Page is used to specify the frame color and size and to change the button shape and
color. Refer to Frames in 2-8 Common Functional Object Functions for details.
Flicker (Extension Tab)
The Flicker Tab Page is used for settings to make objects flicker (flash). Refer to Flicker in 2-8 Common
Functional Object Functions for details.
