Omron NS Programming Manual

Section 2 NS Series Functions 2-20 Special Functions
2-458
NS Series Programming Manual
Connection Methods
For CPM1A, CPM2A, CPM2C, CQM1H, and C200HX/HG/HE-E/-ZE PLCs:
Either 1:1 NT Link or 1:N NT Link protocol can be used.
The connection method is the same for both 1:1 NT and 1:N NT Links.
Refer to Section 4 Connecting to the Host to Serial Port in the NS Series Setup Manual for information
on how to connect to PLCs.
CQM1 and C200 HS PLCs:
1:1 NT Links can be used.
The connection methods are the same for 1:1 NT Links.
Refer to Section 4 Connecting to the Host to Serial Port in the NS Series Setup Manual for information
on how to connect to PLCs.
CS1G/CS1H and CS1G/CS1H-H PLCs:
1:N NT Links, Ethernet, or Ethernet/IP can be used.
The connection method is the same as for 1:N NT Link, Ethernet, and Ethernet/IP connections.
High-speed 1:N NT Link can also be used.
Refer to Section 4 Connecting to the Host to Serial Port and Section 5 Connecting to Host via Ethernet
or Controller Link in the NS Series Setup Manual for information on how to connect to PLCs.
CJ-series PLCs:
1:N NT Links, Ethernet, or Ethernet/IP can be used.
The connection method is the same as for 1:N NT Link, Ethernet, and Ethernet/IP connections.
High-speed 1:N NT Link can also be used.
Refer to Section 4 Connecting to the Host to Serial Port and Section 5 Connecting to Host via Ethernet
or Controller Link in the NS Series Setup Manual for information on how to connect to PLCs.
N
N
N
o
o
o
t
t
t
e
e
e
♦
Tags cannot be monitored if connection is made to the PLC using EtherNet/IP.
♦
The Device Monitor cannot be used when connected to the CP1E.

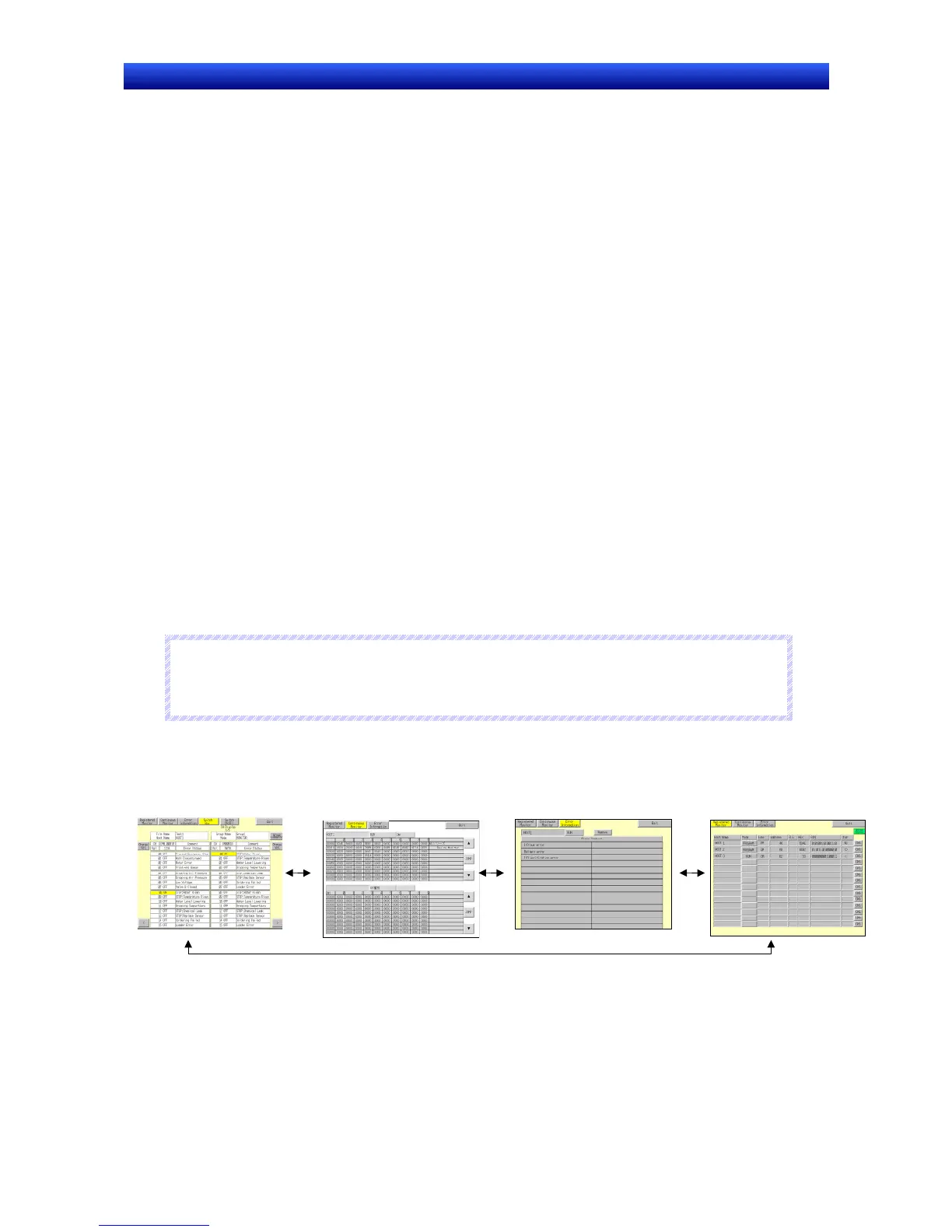

Screen Configuration and Device Monitor Function
The device monitor function is made up of the following three screens.
Registered Monitor
Screen
Continuous Monitor
Screen
Error Information Screen Switch Box Screen
Screen Functions
Common Screen Functions
• Display and switch PLC operating modes.
• Switch screens within device monitor function.
• Close device monitor function.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
