Omron NS Programming Manual

Section 2 NS Series Functions 2-20 Special Functions
2-465
NS Series Programming Manual

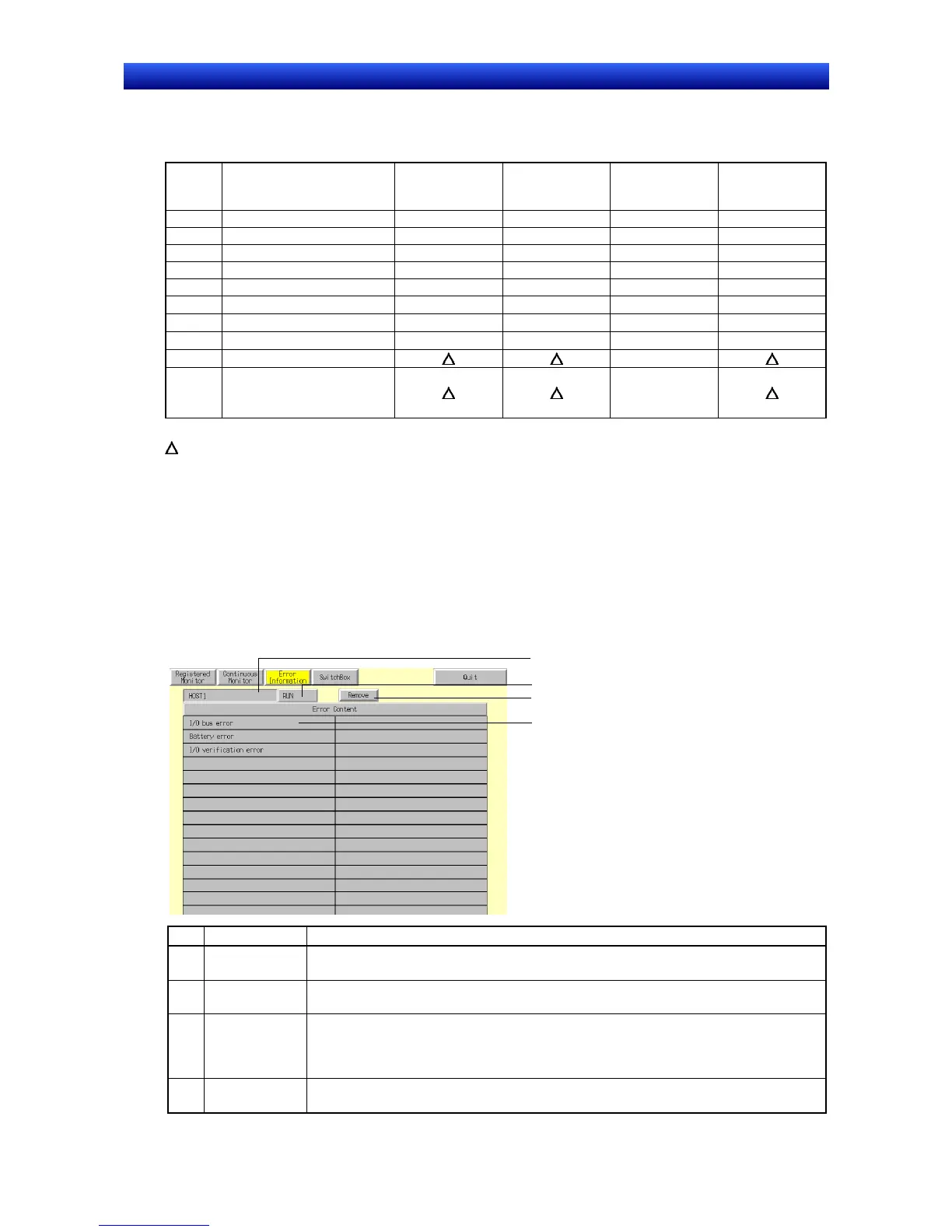

Words Displayed on Continuous Monitor Screen
Words that can be displayed on the device monitor function Continuous Monitor Screen depend on the
PLC model. These word areas are shown in the following table.
Symbol Word area CJ1(-H), CS1(-H)
C200HX/HG/
HE-E/-ZE
CQM1, CPM1A,
CPM2A, CPM2C,
C200HS
CQM1H
DM DM Area
   
CIO I/O Area
   
TIM Timer Area
   
CNT Counter Area
   
HR HR area
   
AR AR Bit and Auxiliary Areas
   
LR Link Area

  
WR Work Area 
  
EM EM Area (current bank)

EM0
to
EM18
EM Area (bank 0)
to
EM Area (bank 18)

: Can be displayed, ×: Cannot be displayed, : No area,
: Can be displayed within the existing ranges
Error Information Screen Functions and Usage
Error Information Screens read error information from PLC (information for current errors) and display
this information in a list in order of priority. Also, the highest priority error can be cleared from the list of
current errors.
Information for up to 40 errors can be displayed at one time for the NS15, information for up to 30 er-
rors can be displayed at one time for the NS12, information for up to 22 errors can be displayed at one
time for the NS10 or NS8, and information for up to 7 errors can be displayed at one time for the NS5. If
more than the maximum number of errors have occurred, further errors will not be displayed until the
highest priority errors have been cleared.
1
2
3
4
No. Setting Details
1 Host name Press Host name to display the PLC Selection Dialog Box and select the PLC. Host
names set using CX-Designer can be selected.
2 Mode Press Mode to display the Change Mode Dialog Box. Switches to the specified PLC
mode.
3 Remove Clears the highest priority error (displayed at the top left of the display area) from the
group of current errors. When an error is cleared, the error information is also cleared
from the display area. However, the same error will occur again straight away unless
the cause of the error is eliminated on the PLC.
4 Error content Reads current PLC error information and displays the errors in order of priority. The
display is refreshed if a new error occurs while the error information is being displayed.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
