Section 2 NS Series Functions 2-20 Special Functions
2-464
NS Series Programming Manual
1
2
3
4
5

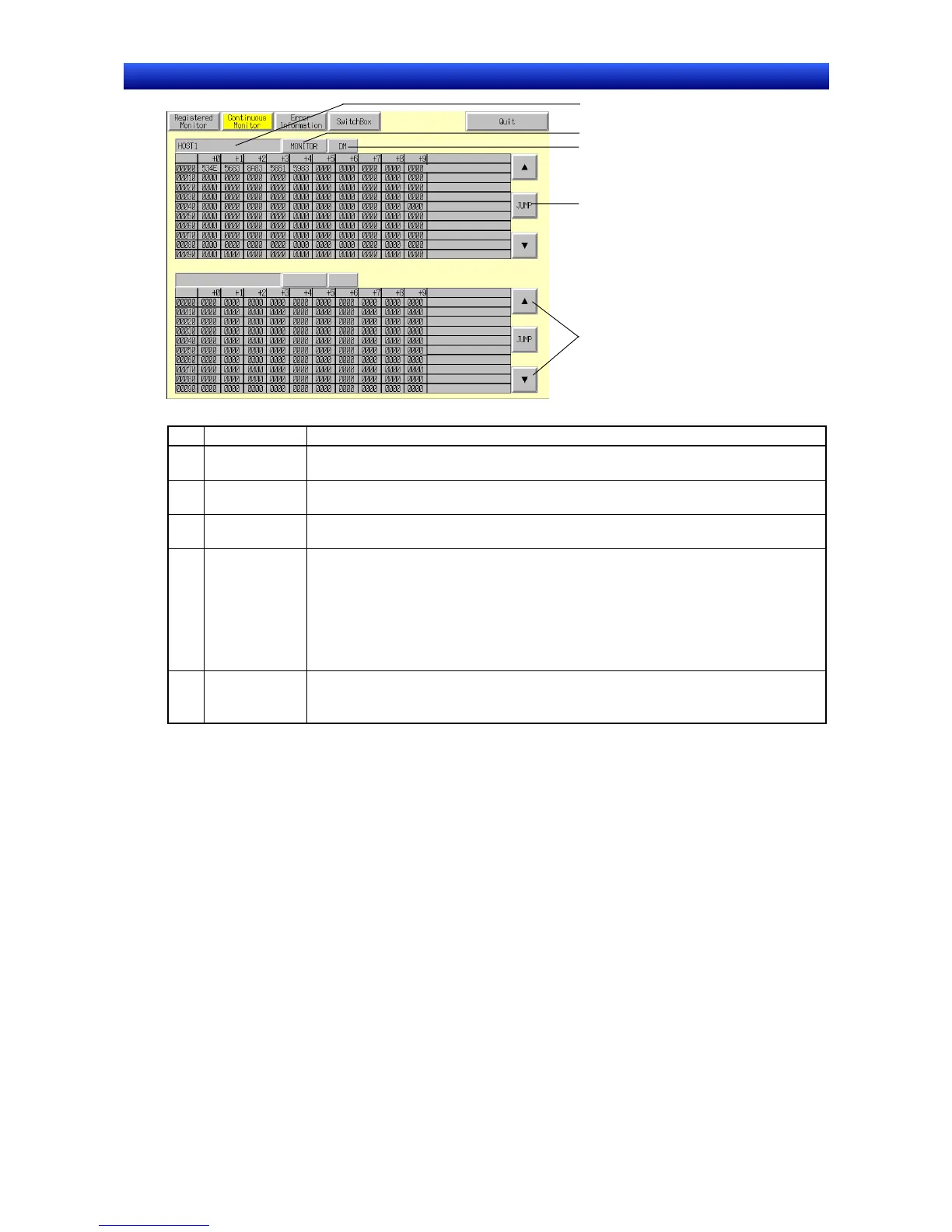

No. Setting Details
1 Host name Press Host name to display the Host Selection Dialog Box and select the Host. Host
names set using CX-Designer can be selected.
2 Mode Press Mode to display the Mode Change Dialog Box. Switches to the specified PLC
mode.
3 Type Press type to display the CH Type Selection Dialog Box. Sets the word type to be
monitored.
4 JUMP Press JUMP to display the JUMP Dialog Box. Sets the addresses to be monitored.
Press the Set Button in the JUMP Dialog Box to the following number of words starting
from the specified address.
NS15: 150 words
NS12: 100 words
NS10/NS8: 50 words
NS5: 25 words
5 ▲/▼
(Previous/
next)
Press the Up Button or Down Button to scroll the addresses being displayed by one
page. You cannot scroll beyond the upper and lower limits of the addresses.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
