Section 2 NS Series Functions 2-20 Special Functions
2-469
NS Series Programming Manual
Procedure for Switching the Screen to the Switch Box Screen

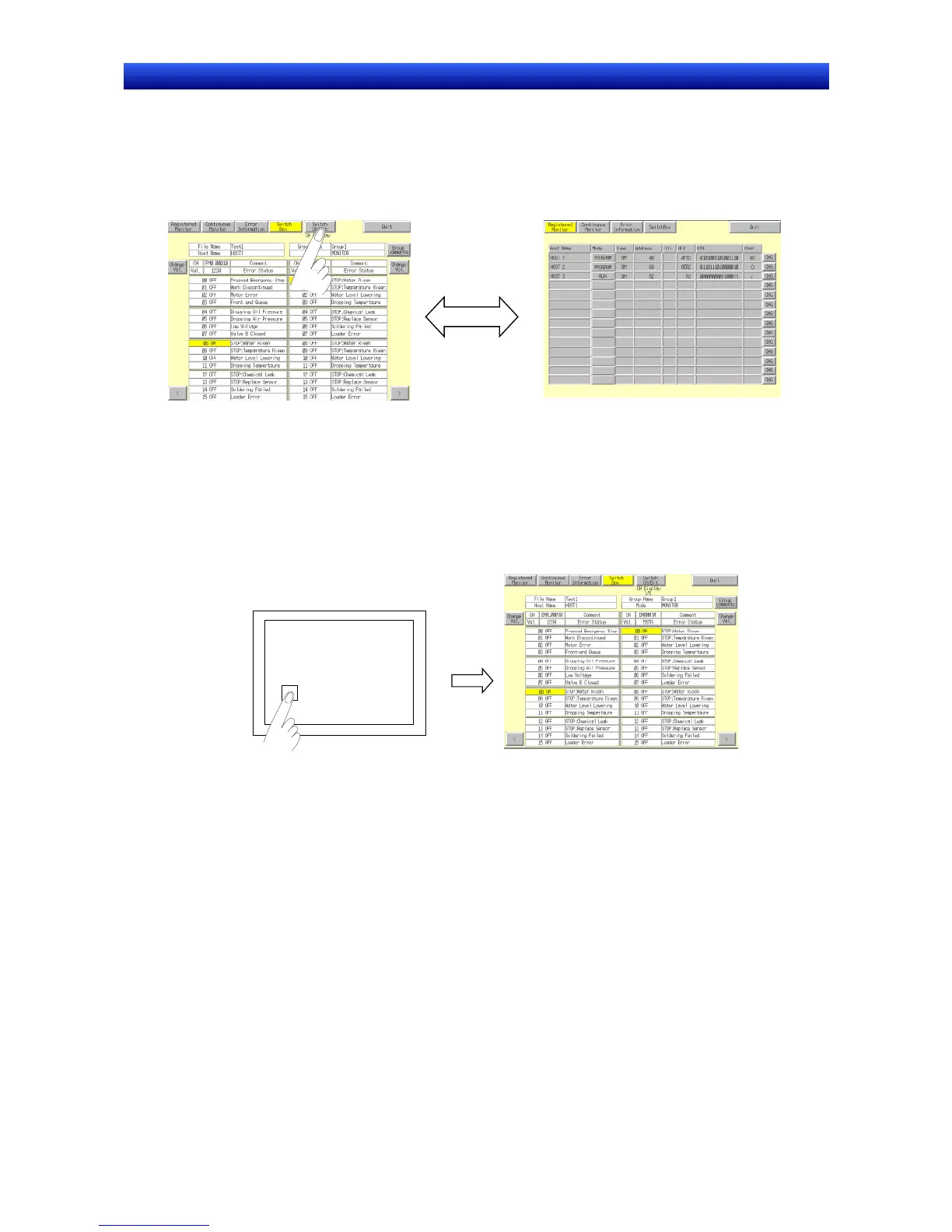

1. Press the Switch Box Button on the Registered Monitor Screen.
Press any two corners on the touch panel (For the NS15, press any corner twice.) to display the
System Menu and press the Special Screen Tab. Press Device Monitor on the Special Screen
Tab Page. The Registered Monitor Screen will appear. Then, press the Switch Box Button at the
top of the screen to switch to the Switch Box Screen.
*If the Switch Box Screen is switched to from the System Menu, the display will return to the Special
Screen Tab Page of the System Menu after the Quit Button is pressed on the screen. If the screen is
switched to another screen of the Device Monitor and the Quit Button is pressed, the display will also
return to the Special Screen Tab Page of the System Menu.
2. Switch from a user screen by operating a command button or Multifunction Object on the screen
Refer to the 2-9 Buttons or 2-11 Multifunction Objects for details on setting command buttons or
Multifunction Objects on the screen.
Screen n
*If the screen is switched from a user screen by operating a command button or
Multifunction Object, the display will return to the user screen after the Quit
Button is pressed on the screen. If the screen is switched to other screen on
the Device Monitor and the Quit Button is pressed, the display will also return
to the user screen that was previously displayed.
