Omron NS Programming Manual

Section 2 NS Series Functions 2-20 Special Functions
2-473
NS Series Programming Manual

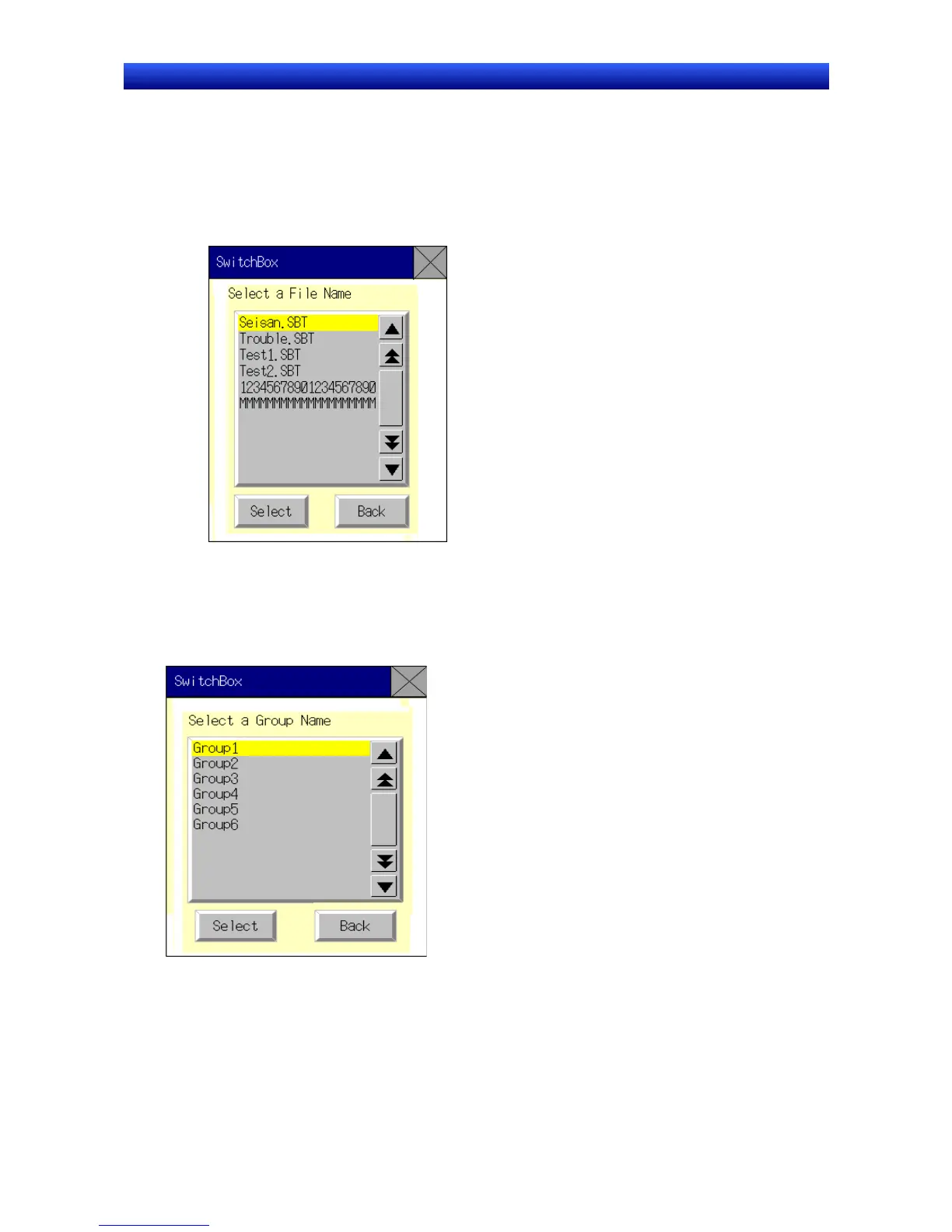

Changing the File Name
To select the file on the Switch Box Screen, use the following procedure.
1. Press the File Name or the File Name Display Area on the Switch Box Screen.
The File Selection Dialog Box will appear.
2. Select the file name.
3. Press the Select Button.
Changing the Group Name
To select the group name on the Switch Box Screen, use the following procedure.
1. Press the Group Name or the Group Name Display Area on the Switch Box Screen.
2. Select the group name.
3. Press the Select Button.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
