Section 3 Using PTs 3-7 Using Alarm/Event Summary History Functions
3-24
NS Series Programming Manual
Scroll Buttons and Icons
Alarm/event summary and history objects have scroll buttons and icons allocated to them. Use the
scroll buttons and icons to scroll through lists and change the display order.
Scroll Buttons
Scrolls up and down one line or a specified number of lines.
Icons

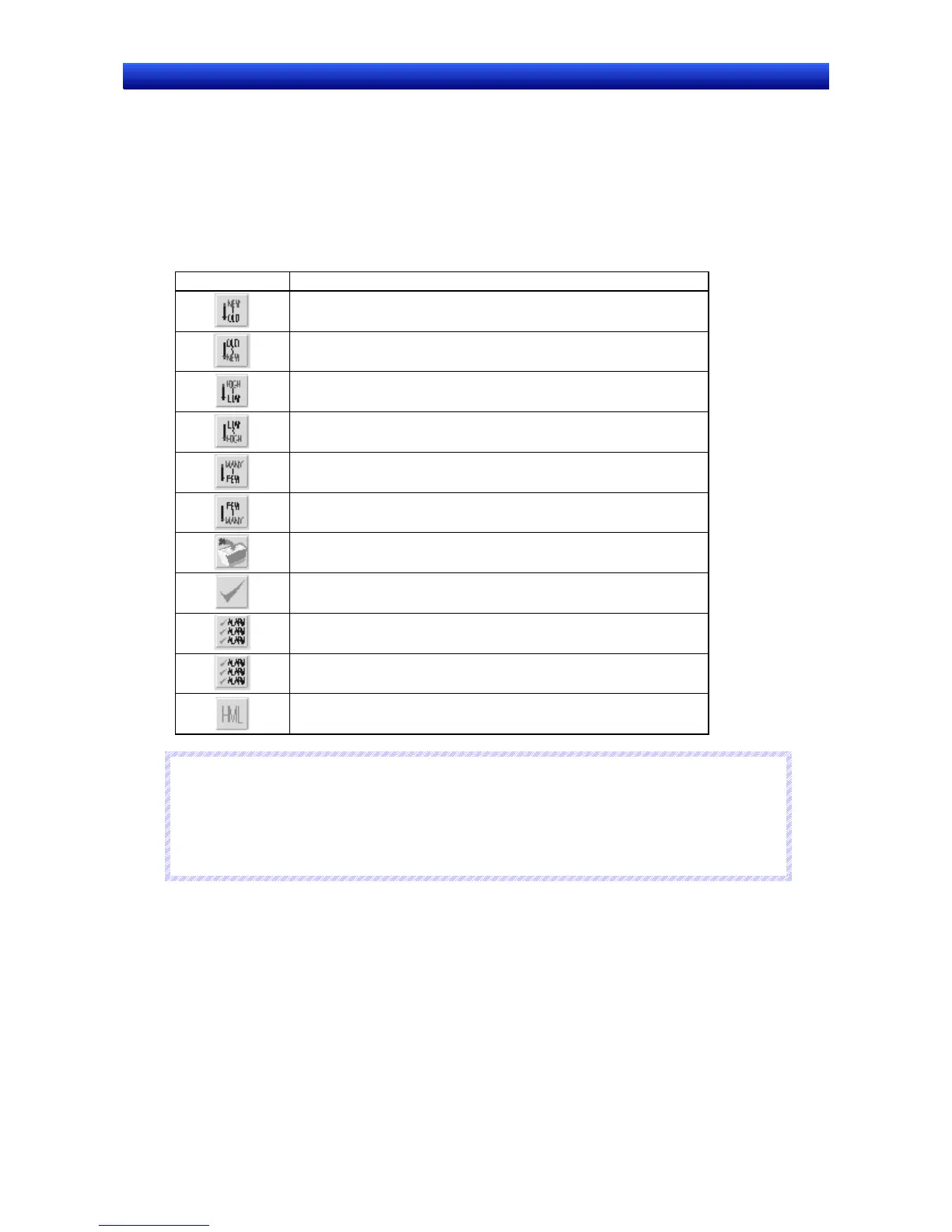

The following 11 icons are available.
Icon Description
Displays from latest alarm/event.
Displays from oldest alarm/event.
Displays from highest priority alarm/event.
Displays from lowest priority alarm/event.
Displays from most frequent alarm/event.
Displays from least frequent alarm/event.
Deletes selected alarms.
Checks selected alarms.
Checks all alarms.
Cancels all alarm’s check.
Changes display type (high alarm, middle alarm, low alarm, event).
R
R
R
e
e
e
f
f
f
e
e
e
r
r
r
e
e
e
n
n
n
c
c
c
e
e
e
♦
The user can select whether or not to use scroll buttons and icons. Refer to Alarm/Event Summary
and History in 2-14 Alarms and Events for information on settings.
♦
Multifunction Object Scroll Object and Alarm/Event Control functions can execute similar functions to
icons.
