Install a CMIOU
2.

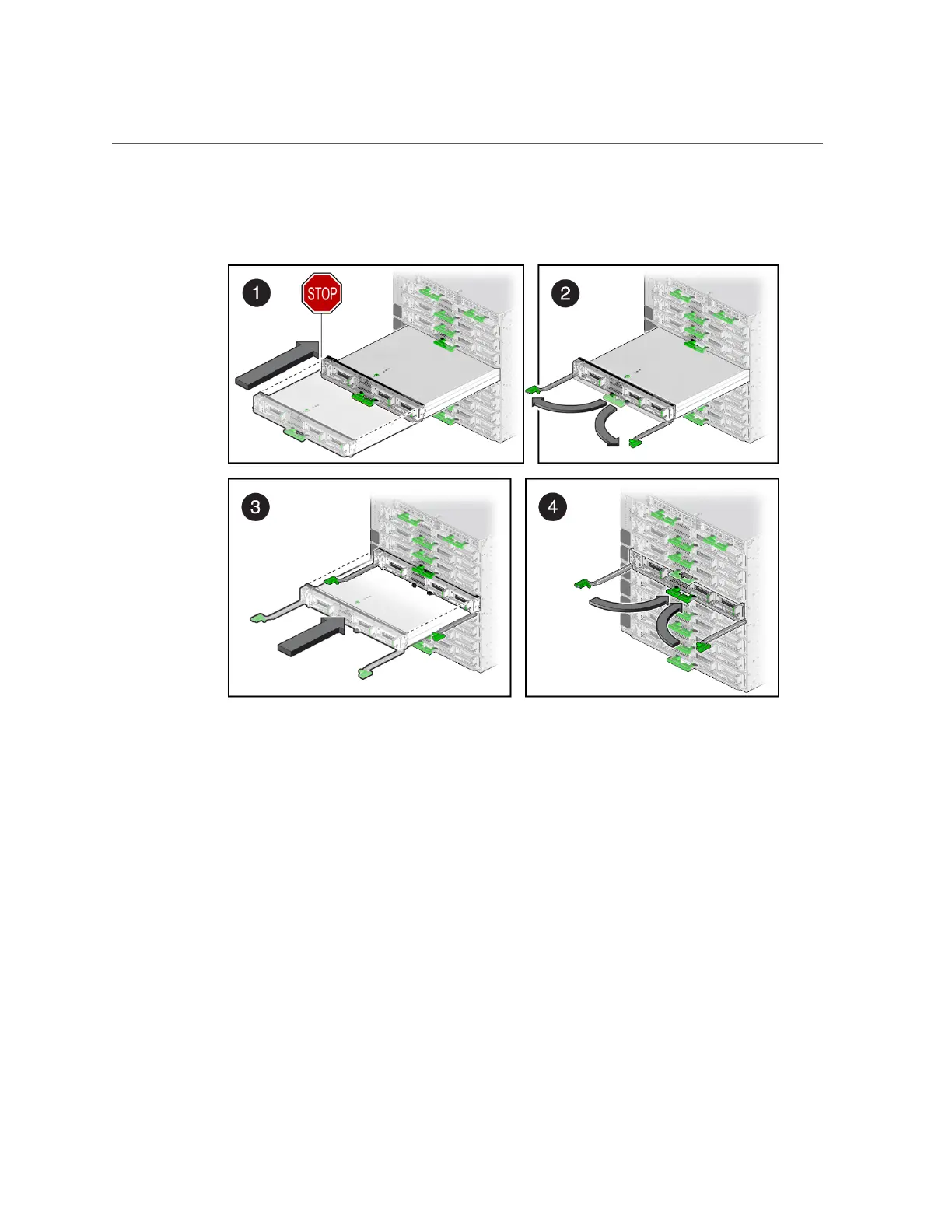

Install the CMIOU.
a.
Carefully slide the CMIOU less than half way into the slot, taking care to
avoid bumping the connectors on the back of the CMIOU (panel 1).
b.
Open the green CMIOU levers so that they are fully open (panel 2).
c.
Insert the CMIOU back into its slot in the server until the levers begin to
engage (panel 3).
d.
Press the levers back together toward the center of the CMIOU, and then
press the levers firmly against the CMIOU to fully seat the CMIOU into the
server (panel 4).
The levers should click into place when the module is fully seated in the server.
3.
Determine your next step:
Servicing CMIOUs 103
