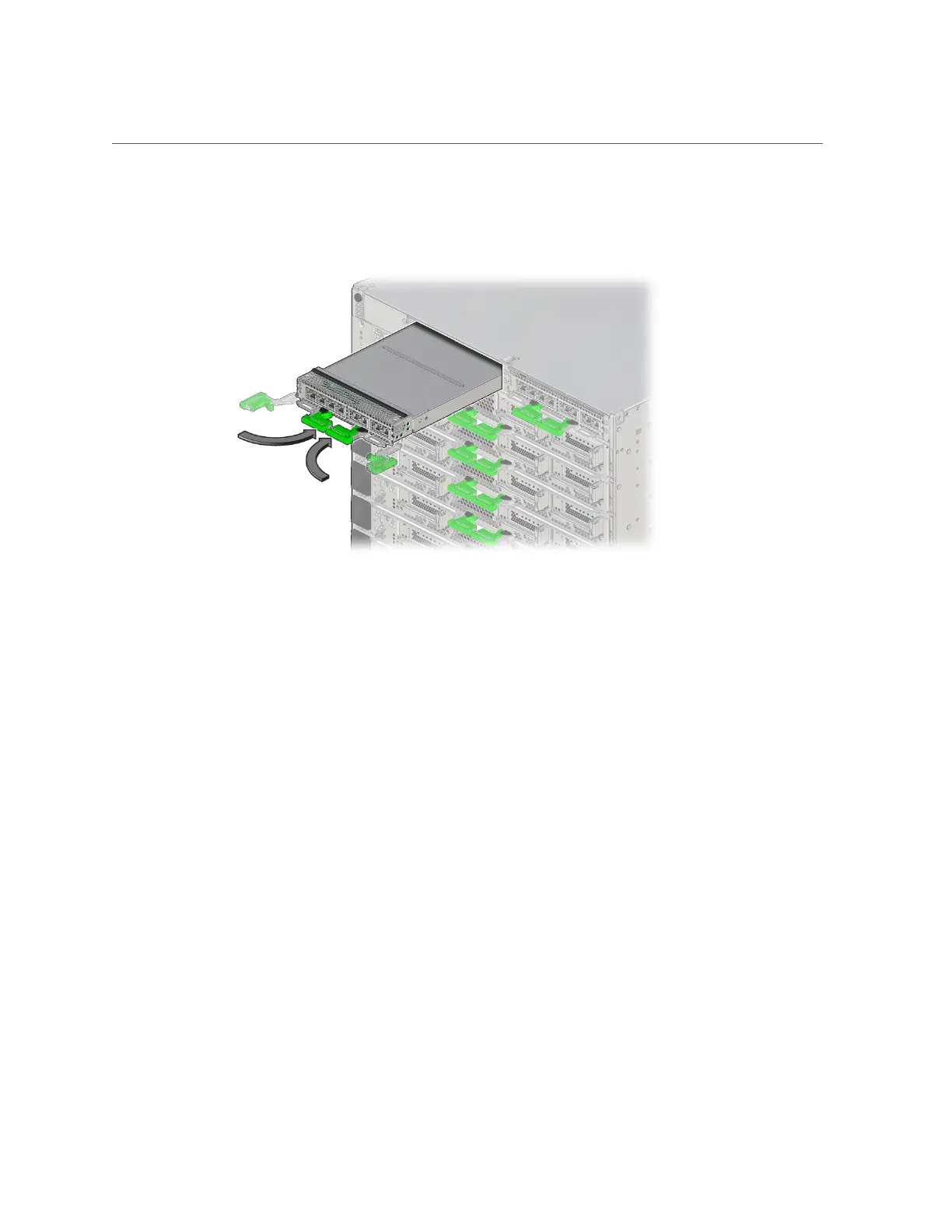

Remove an SP or SPP

This protects the arms from damage when you pull the component out.

Carefully remove the component from the SP tray, using two hands, and avoid

bumping the rear connectors.

10.

Place the SP on a grounded antistatic mat.

11.

Set the /System/DCUs failover property back to auto.

On an SP, type:

-> set /System/DCUs failover=auto

12.

Determine your next step:

■

To replace the battery, see “Servicing Batteries” on page 247.

■

To install an SP, see “Install an SP or SPP” on page 136.

Related Information

■

“SP General Status LEDs” on page 120

■

“Install an SP or SPP” on page 136
