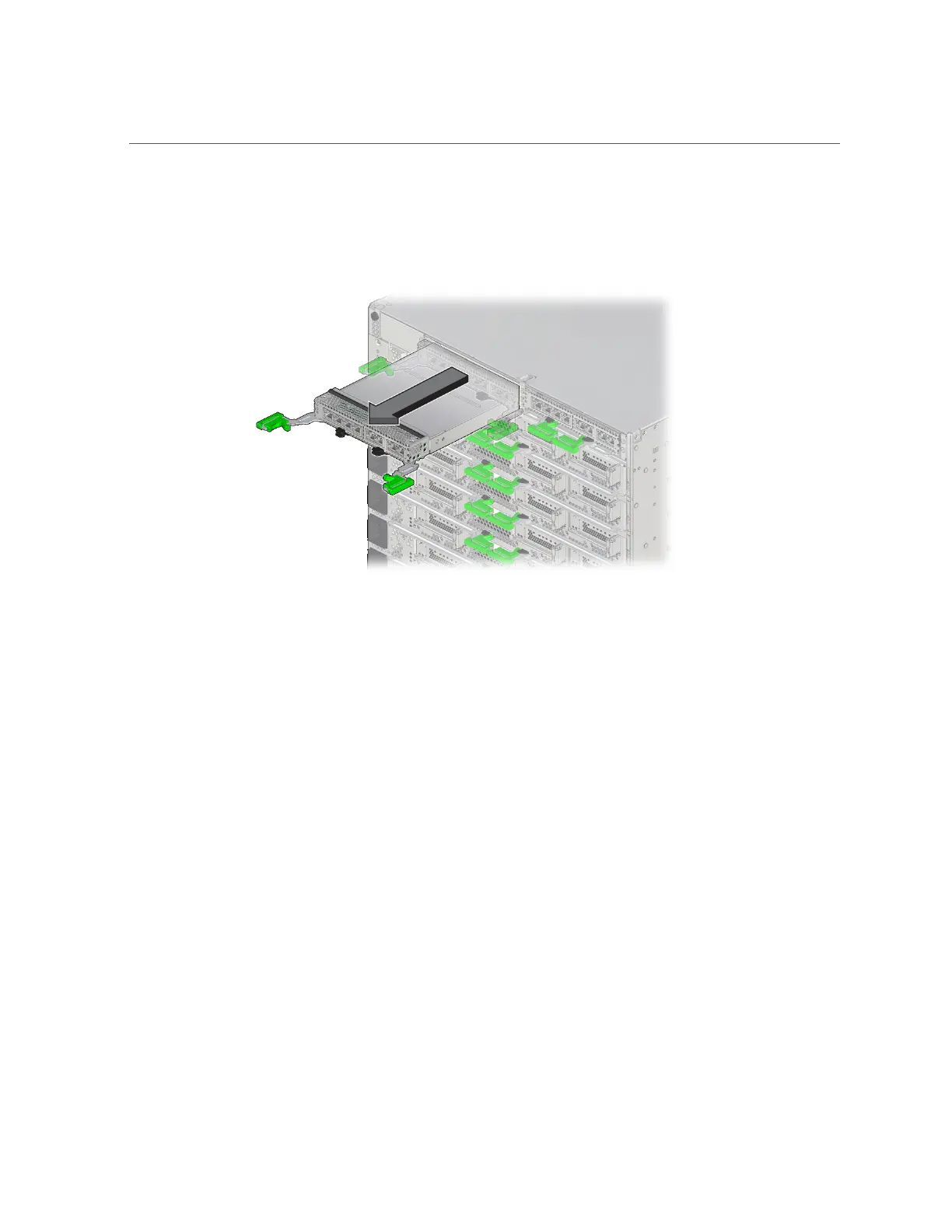

Remove an SP or SPP

8 (one PDomain)The SPs and SPPs are tightly secured in their bays. Pull firmly on the ejector

latches to free the SP or SPP from the bay.

8.

Close the ejector arms.

134 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
