Remove a Power Supply

Take the necessary ESD precautions.

See “Prevent ESD Damage” on page 61.

Disengage the power supply from the server.

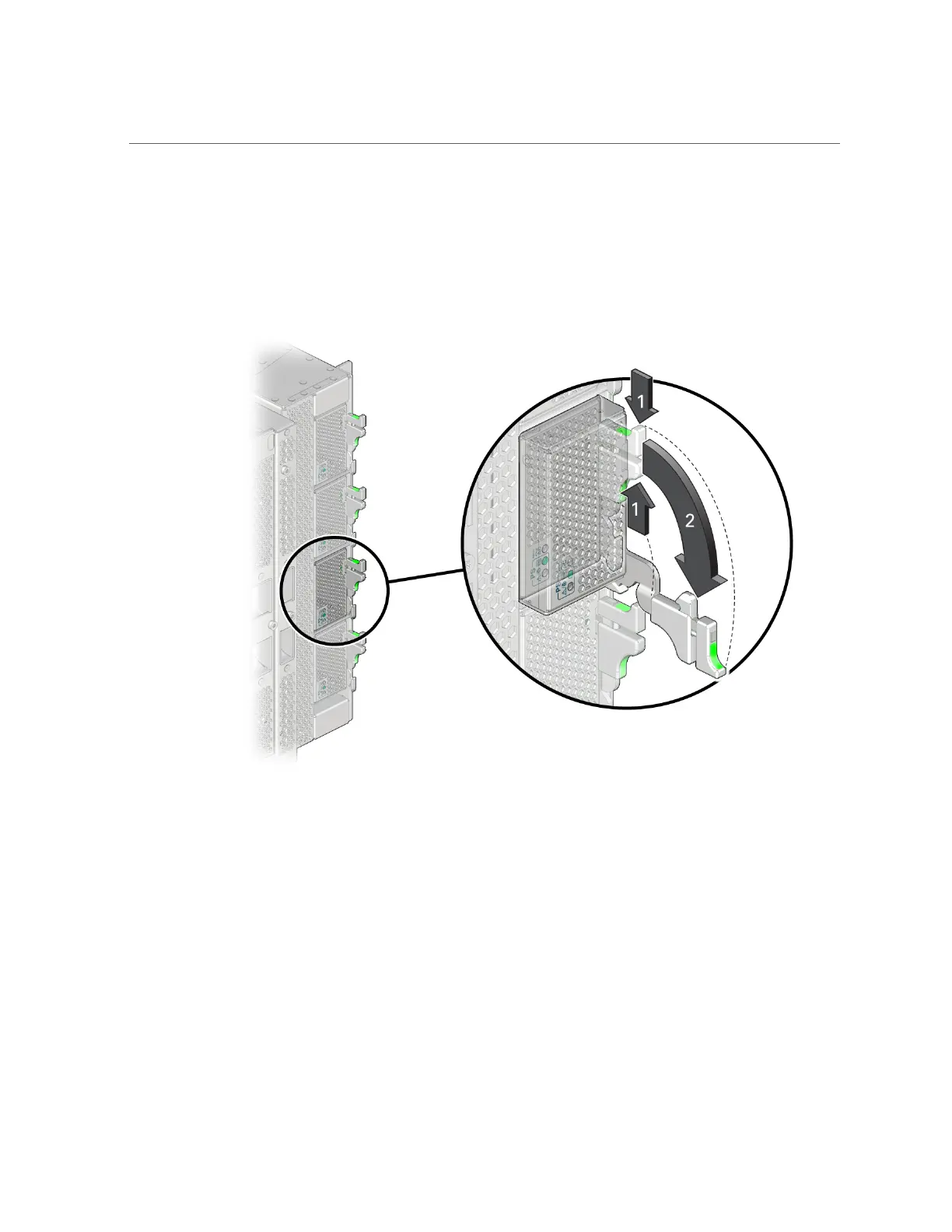

At the front of the server, squeeze the green release latch on the power

supply to be removed.

Shown by the No. 1 arrows in the preceding illustration.

Pull the extraction lever toward you to disengage the power supply.

Shown by the No. 2 arrow in the preceding illustration.

168 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
