Remove a Power Supply

Remove the power supply from the server.

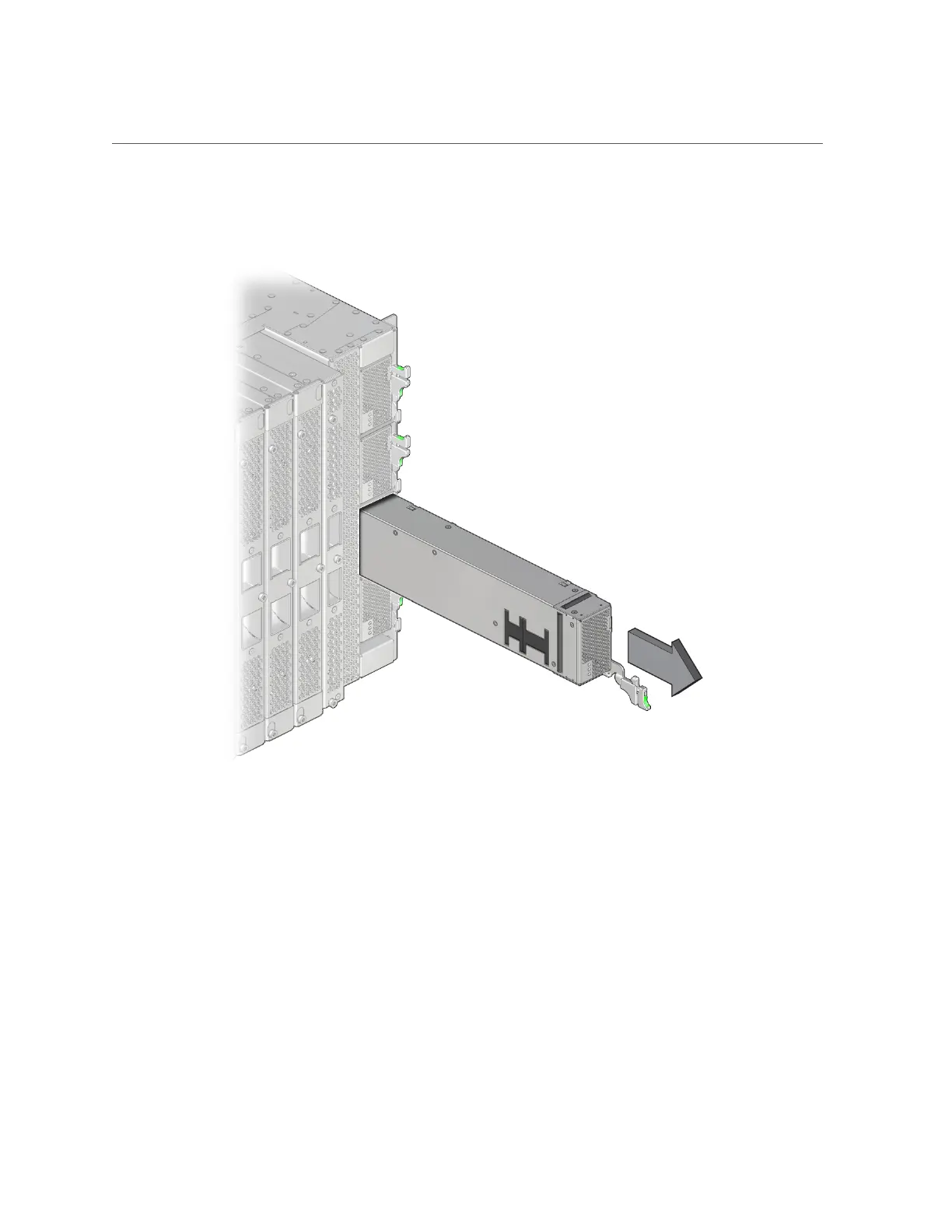

Slide the power supply halfway out of the server.

Fold the extraction lever back toward the center of the power supply until it

latches into place.

This protects the lever from damage when you pull the power supply out.

Carefully remove the power supply from the server.

Determine your next step:

Servicing Power Supplies 169
