Remove a Fan Cable Assembly

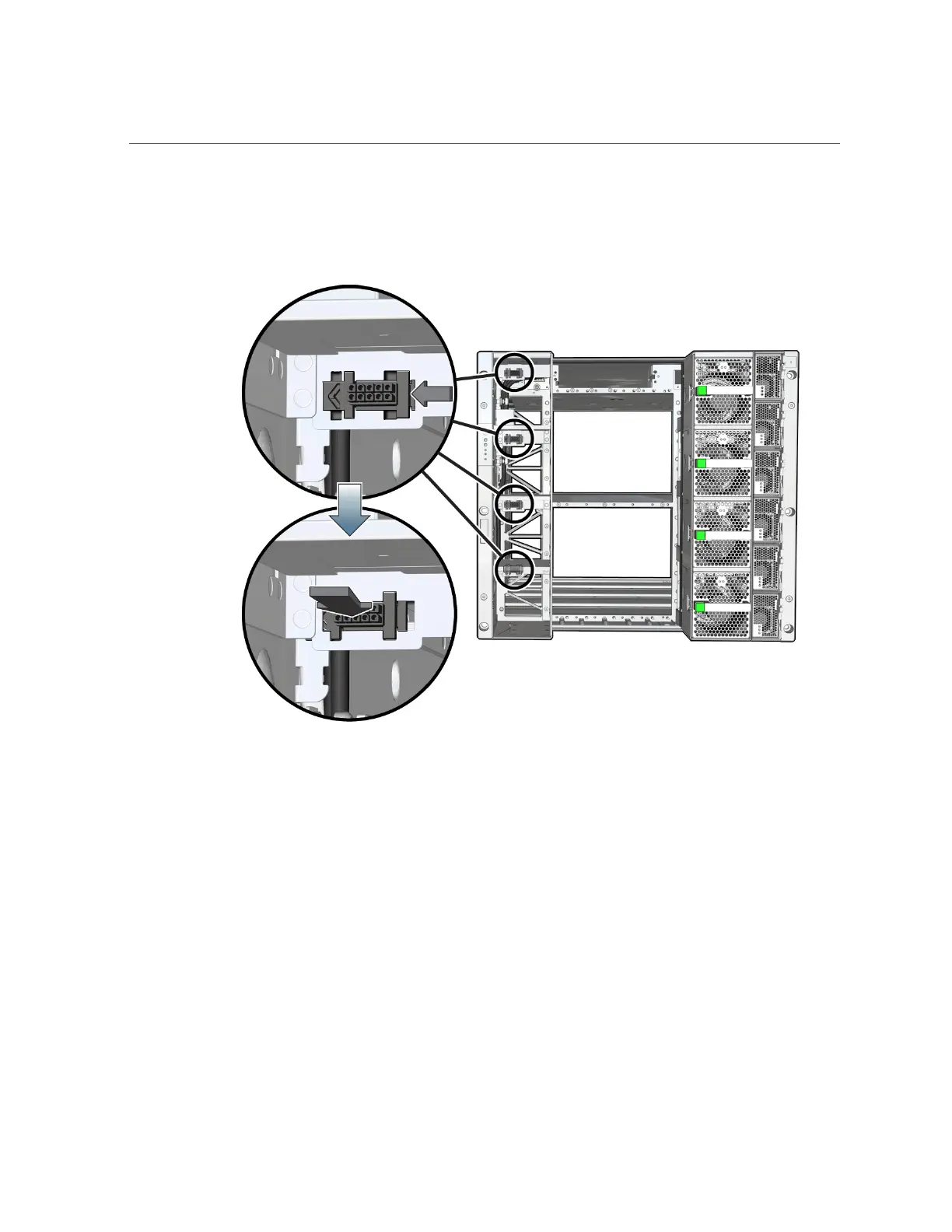

On the black tab, push down on the arrow while sliding the tab to the left until the pegs on the

tab align with the slats in the metal brace. Press the tab back to release it.

210 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
