Remove a Fan Cable Assembly

8.

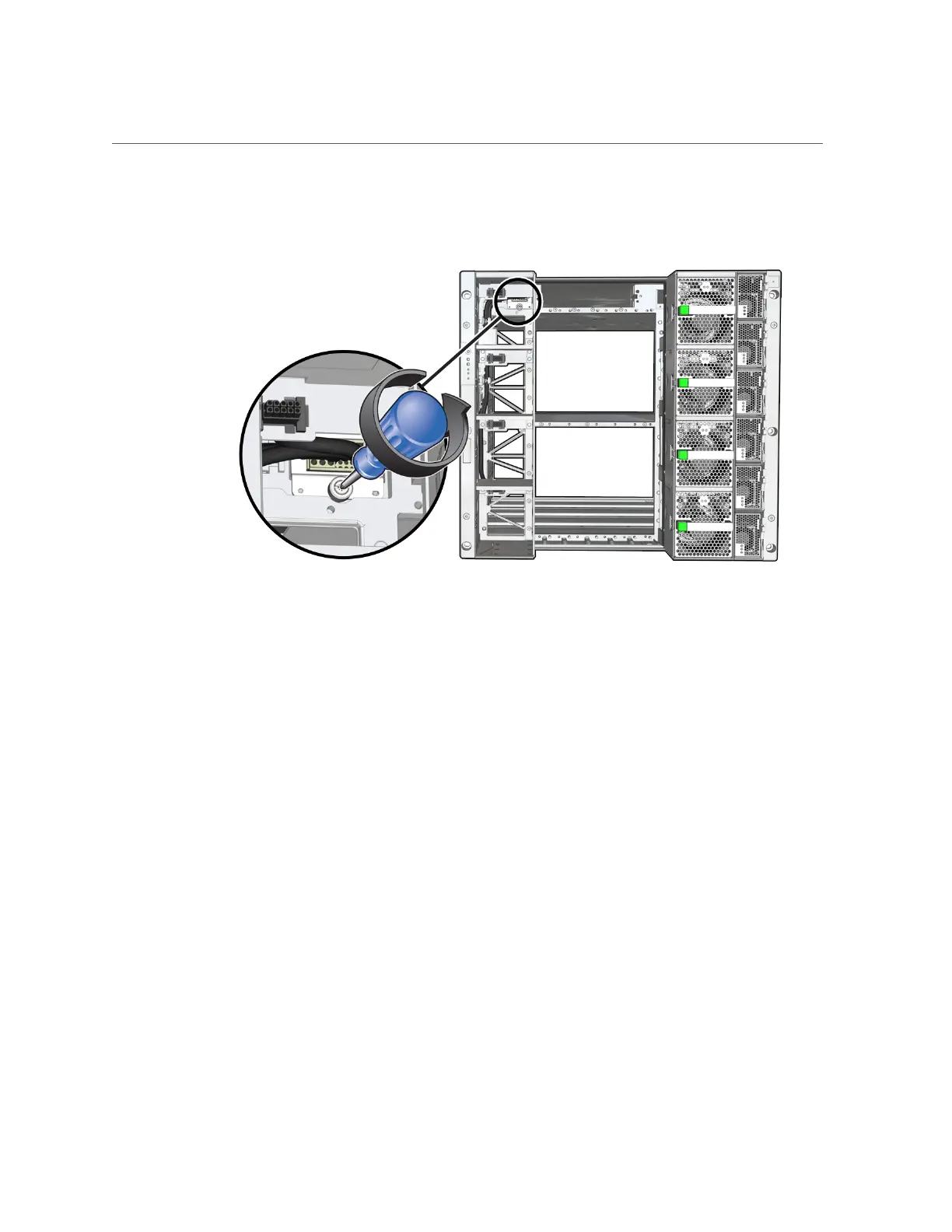

Unscrew the bracket at the top of the cable assembly.

9.

Release all four panel mount connectors on each tab.

Servicing a CMIOU Chassis Fan Cable Assembly 209
