Install a Fan Cable Assembly

2.

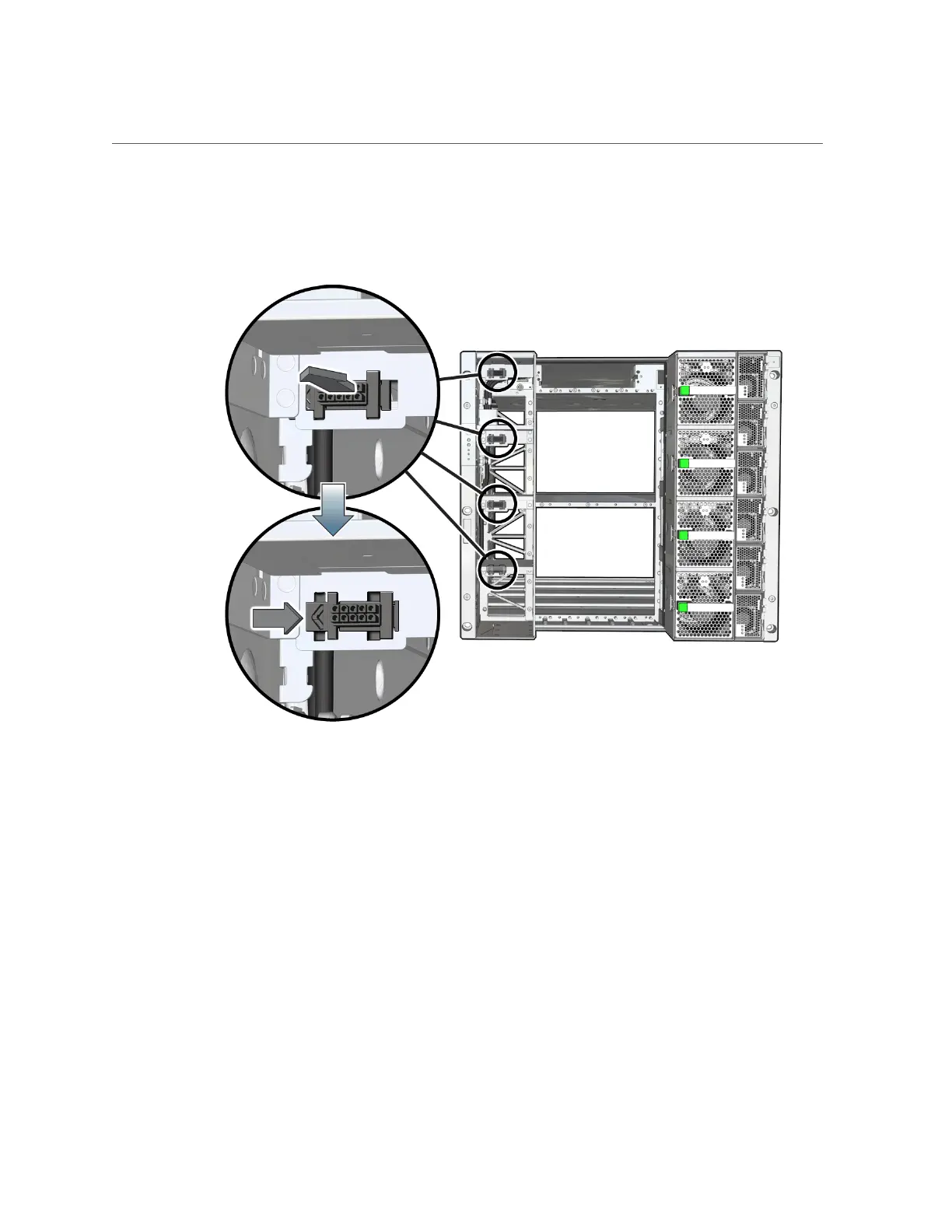

Insert the four panel mount connectors through each of the receiving tabs and

slide the black tab to the left to secure it.

Servicing a CMIOU Chassis Fan Cable Assembly 213
