Remove the Front Indicator Panel Cable

11.

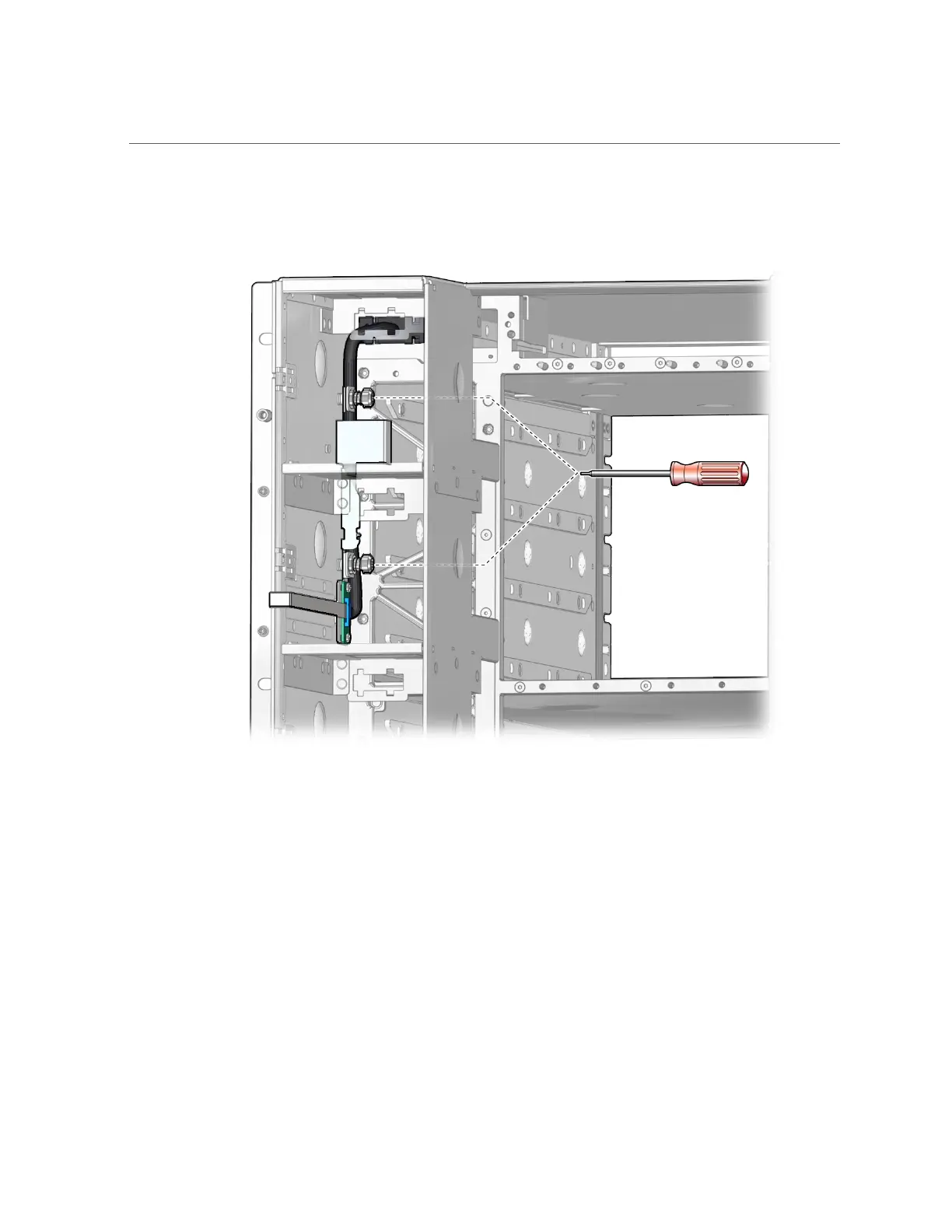

Remove the two captive screws that secure the cable to the chassis.

230 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
