Remove the Front Indicator Panel Cable

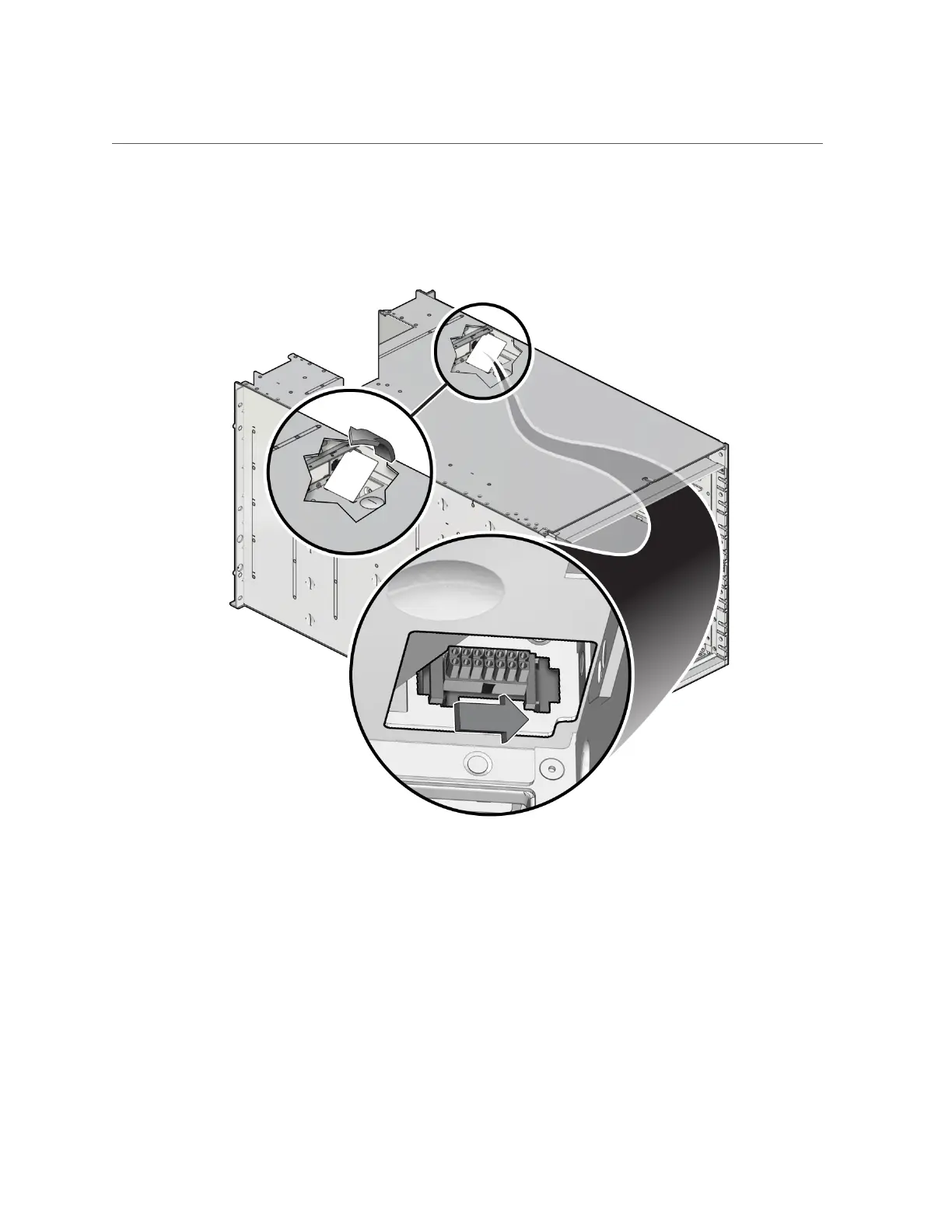

Reach through the hinging access door on the chassis divider floor where the SP tray slides to

unlatch the Molex connector.

Servicing the Front Indicator Panel Cable 229
