Remove a PDU

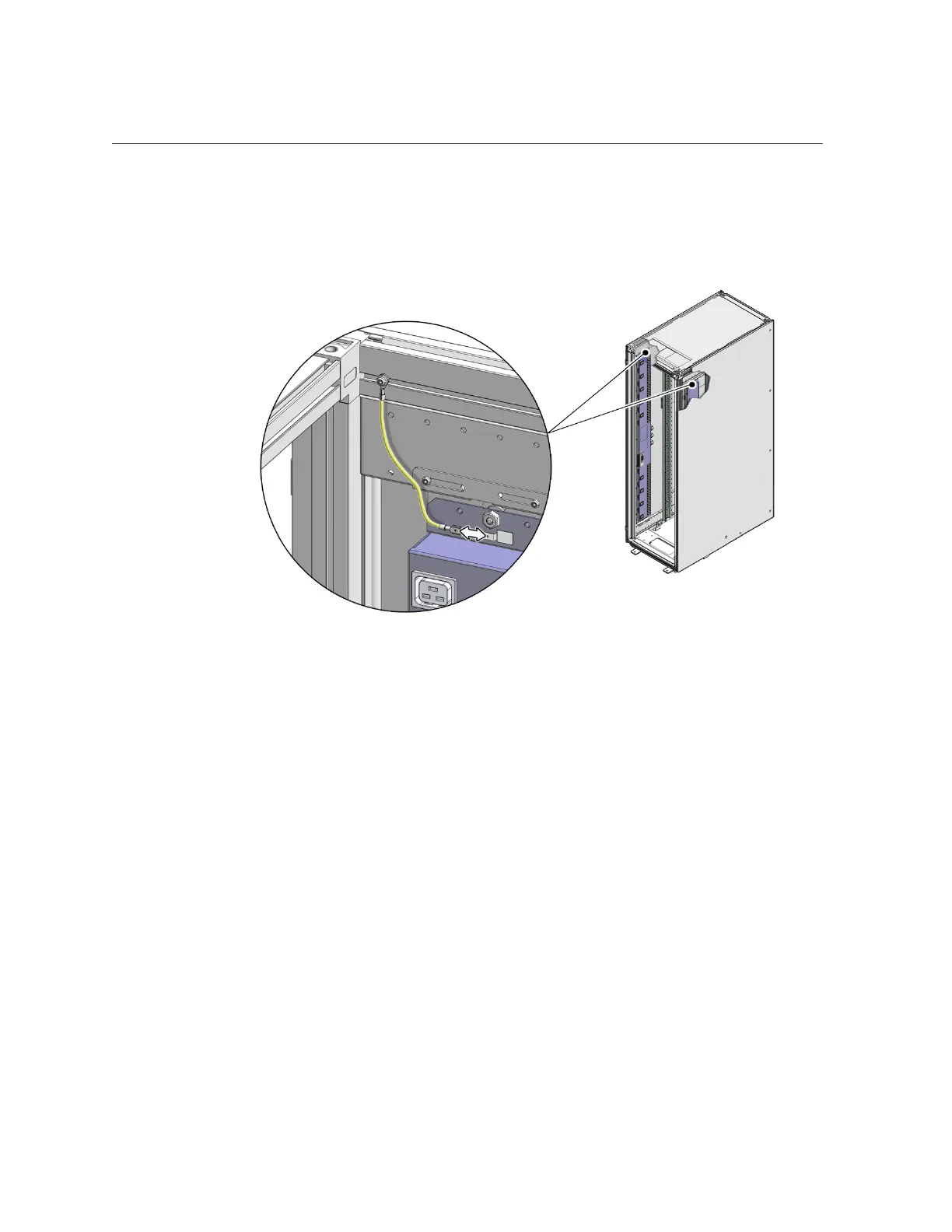

■ On a Sun Rack II, disconnect the grounding strap connecting the top of the

faulty PDU to the rack.

8.

Remove the screws and washers securing the PDU to the mounting brackets.

Servicing PDUs 259
