Remove a PDU

■ On an Oracle Rack Cabinet 1242, use a T25 wrench key to remove the four

M5 screws securing the faulty PDU to the mounting brackets.

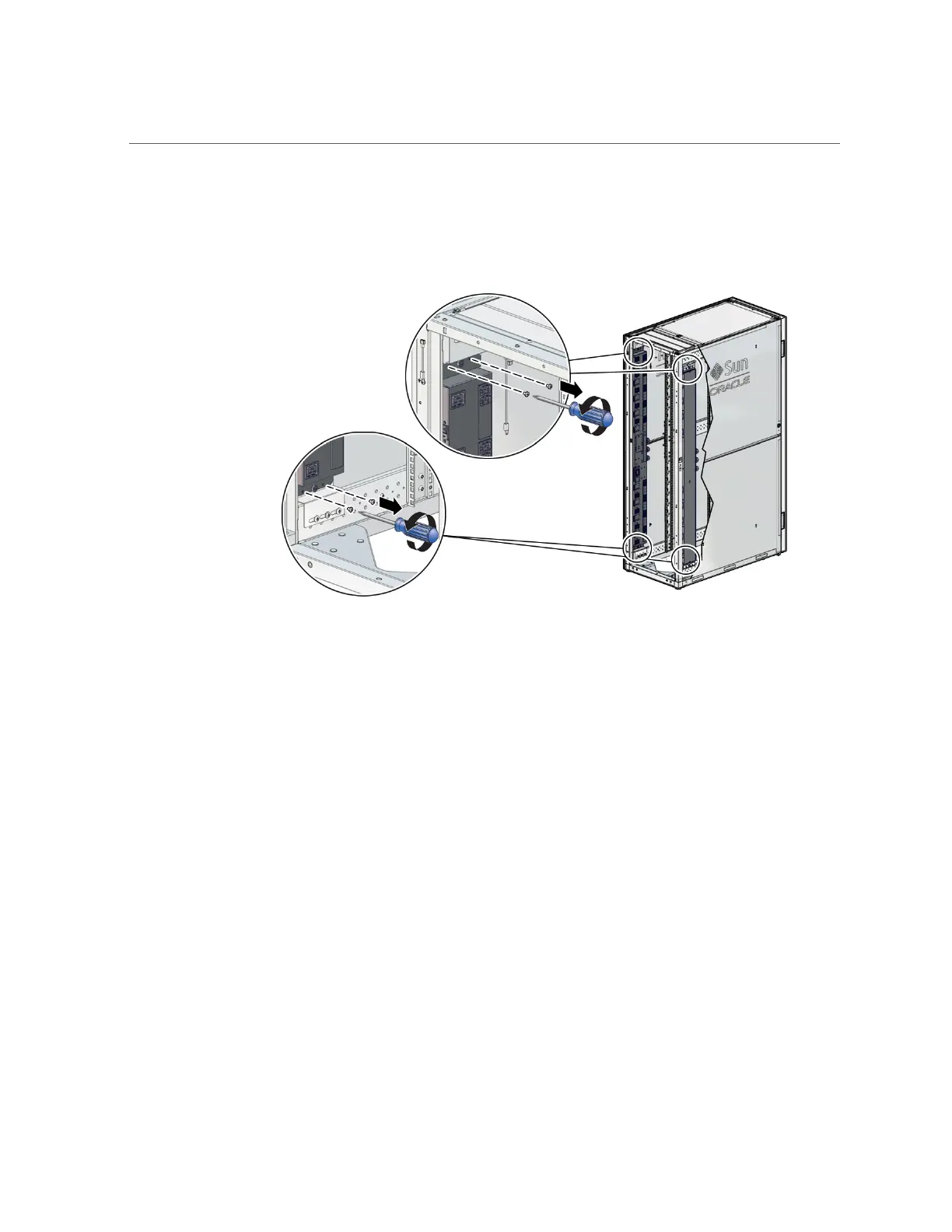

■ On a Sun Rack II, use a T25 wrench key to remove the four M5 screws and

washers securing the faulty PDU to the mounting brackets.

260 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
