Remove a Switch Chassis

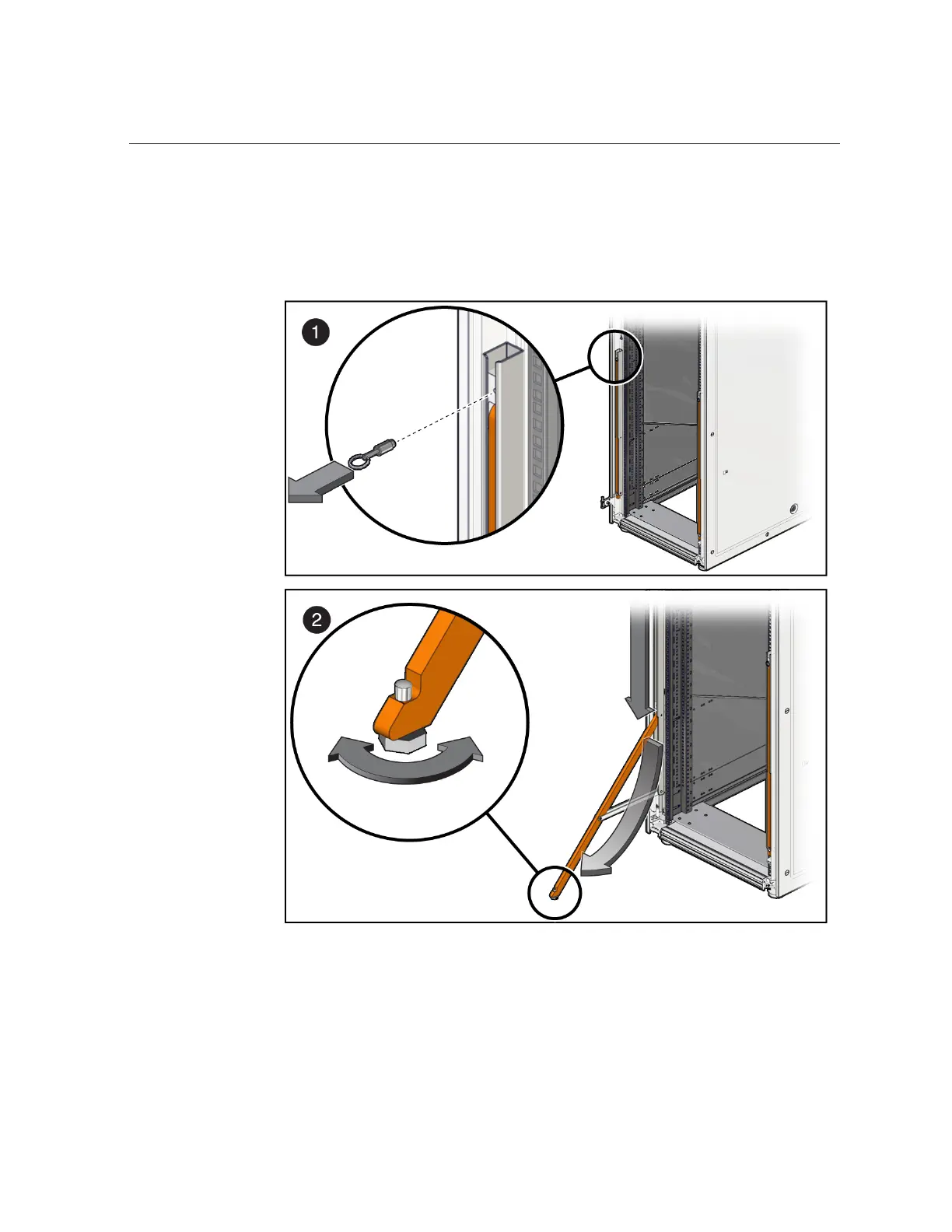

■ On a Sun Rack II, deploy the anti-tilt legs.

280 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
